NSN 5320-01-212-4703 MS20605R3W4, CCR264CS304, CCR264CS-3-04

Product Details | BLIND RIVET

5320-01-212-4703 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MS20605R3W4, CCR264CS304, CCR264CS-3-04, 3D0142C34, 3D0142C3-4 , 5320-01-212-4703, 01-212-4703, 5320012124703, 012124703

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	12 JUL 1985	01-212-4703	00864 ( RIVET, BLIND )

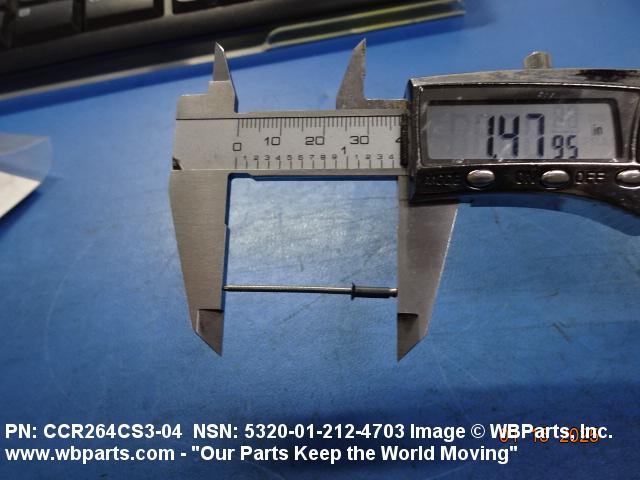

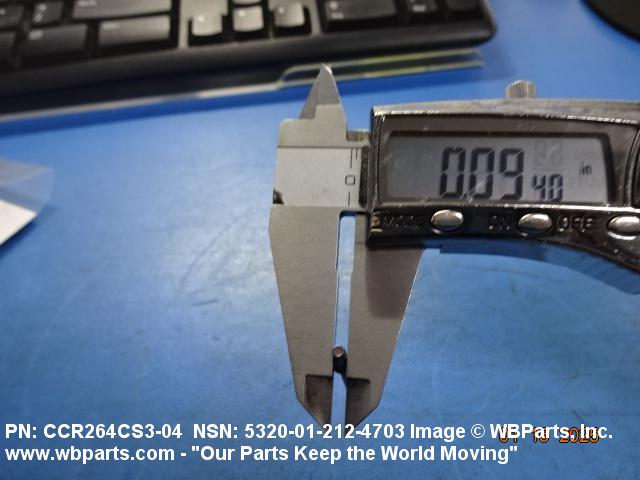

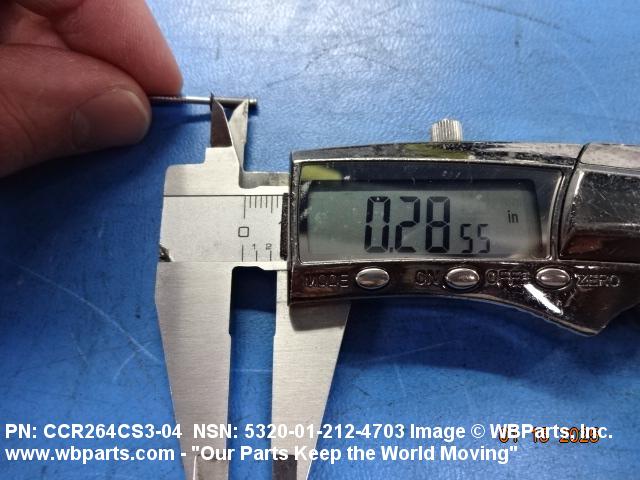

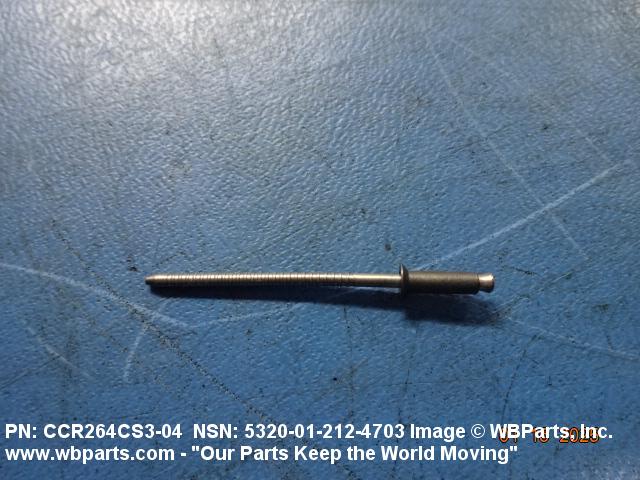

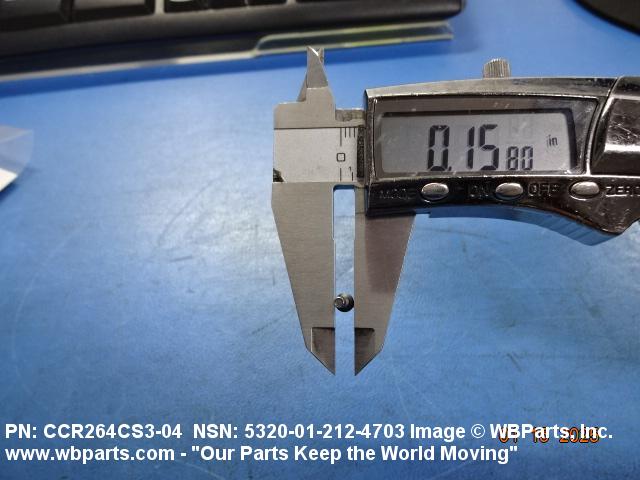

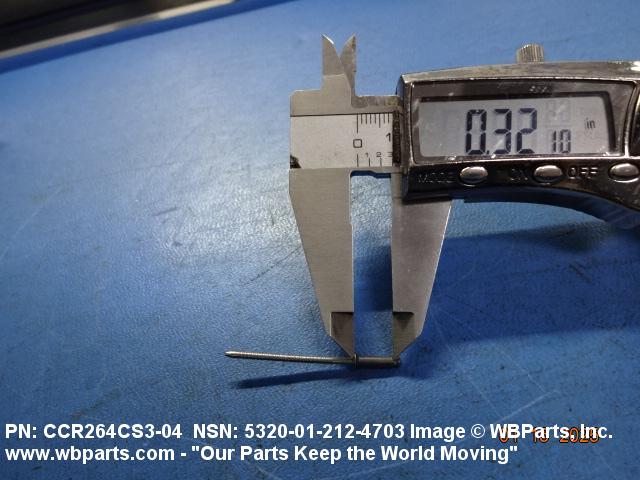

Drawings & Photos | NSN 5320-01-212-4703

Part Number	Request Date	QTY	Origin
5320-01-212-4703	2025-12-349	250	US
CCR264CS304	2025-12-346	556	US
MS20605R3W4	2025-12-336	2800	United States
CCR264CS304	2025-11-317	96	United States
5320-01-212-4703	2025-11-309	500	India
5320-01-212-4703	2025-11-309	1500	India
MS20605R3W4	2025-10-297	550	United States
CCR264CS304	2025-09-267	4290	TR
5320-01-212-4703	2025-07-209	63076	United States
MS20605R3W4	2025-07-209	500	United States
CCR264CS304	2025-07-206	200	AE
5320-01-212-4703	2025-06-181	2000	Singapore
CCR264CS304	2025-06-164	300	IT
MS20605R3W4	2025-06-164	300	IT
5320-01-212-4703	2025-06-155	6150	US
MS20605R3W4	2025-05-134	50	United States
MS20605R3W4	2025-05-134	16	United States
CCR264CS304	2025-04-97	250	Israel
MS20605R3W4	2025-03-83	1000	us
MS20605R3W4	2025-03-80	2000	IN
MS20605R3W4	2025-02-44	3600	US
5320-01-212-4703	2025-01-29	100	us
5320-01-212-4703	2025-01-23	100	us
5320-01-212-4703	2025-01-09	500	Australia
5320-01-212-4703	2024-12-345	35000	US
CCR264CS304	2024-11-309	500	US
MS20605R3W4	2024-10-302	500	United States
CCR264CS304	2024-09-264	100	us
CCR264CS304	2024-09-248	1000	IL
MS20605R3W4	2024-08-215	150	us
CCR264CS304	2024-05-129	200	US
MS20605R3W4	2023-10-276	150	Taiwan
CCR264CS304	2023-09-257	24	US
MS20605R3W4	2023-08-222	1000	India
5320-01-212-4703	2023-08-216	10	ID
CCR264CS304	2023-06-170	864	United States
5320-01-212-4703	2022-11-334	100	US
MS20605R3W4	2022-09-248	1120	India
CCR264CS304	2022-06-180	2000	United States
CCR264CS304	2022-06-180	6900	United States
MS20605R3W4	2022-04-118	150	United States
CCR264CS304	2022-04-108	120	United States
CCR264CS304	2021-09-265	39525	India
5320-01-212-4703	2020-06-154	9	United States
5320-01-212-4703	2020-01-30	150	US
CCR264CS304	2019-06-178	180	United States
5320-01-212-4703	2019-04-110	100	South Korea
5320-01-212-4703	2016-09-258	145	France
MS20605R3W4	2015-11-315	20	US
MS20605R3W4	2015-08-215	800	US
MS20605R3W4	2015-07-201	2000
5320-01-212-4703	2015-05-148	41362	DIBBS
5320-01-212-4703	2015-04-120	36521	DIBBS
MS20605R3W4	2014-04-99	650	Taiwan
5320-01-212-4703	2013-07-212	5	US
5320-01-212-4703	2013-07-212	14	US
CCR264CS-3-04	2012-11-310	2
MS20605R3W4	2012-10-305	212	Taiwan
MS20605R3W4	2012-09-265	720	US
5320-01-212-4703	2012-04-117	200	TW
CCR264CS304	2011-11-325	200	United States
CCR264CS304	2011-11-320	200	United States
5320-01-212-4703	2011-10-300	12	US
5320-01-212-4703	2011-05-132	2000	IL
MS20605R3W4	2011-04-96	50	Korea
CCR264CS304	2011-03-77	100	US
CCR264CS304	2010-07-207	5000	United States
5320-01-212-4703	2010-01-18	2000	US
5320-01-212-4703	2009-09-246	2000	India
5320-01-212-4703	2009-08-237	378	United States
MS20605R3W4	2009-07-201	320	US
MS20605R3W4	2008-10-296	500	United States
CCR264CS304	2008-10-275	300	US
5320-01-212-4703	2008-08-217	2000	United States
5320-01-212-4703	2007-05-137	200	US

Cross Reference | NSN 5320-01-212-4703

Part Number	Cage Code	Manufacturer
3D0142C3-4	88277	BOEING COMPANY, THE DBA BOEING
CCR264CS-3-04	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
MS20605R3W4	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES
MS20605R3W4	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-212-4703

Compare

Related Products | NSN 5320-01-212-4703

5320-01-212-4704, 5320-01-212-4705, 5320-01-212-4706, 5320-01-212-4707, 5320-01-212-4708

Technical Data | NSN 5320-01-212-4703

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 SLEEVE STEEL COMP 305 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS5731 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE ASTMA495 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	PASSIVATE OVERALL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.183 INCHES MAXIMUM
COUNTERSINK ANGLE	98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM
SHANK STYLE	D29 SELF-PLUGGING HIGH CLINCH SHANK
FASTENER LENGTH	0.265 INCHES MAXIMUM
SHANK DIAMETER	0.092 INCHES MINIMUM AND 0.097 INCHES MAXIMUM
GRIP LENGTH	0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W

Restrictions/Controls & Freight Information | NSN 5320-01-212-4703

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-212-4703

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	E	The current standard price is an estimated price. Estimated Price challenges are allowed, but follow procedures in para 60.b. (3) of section L of this manual. This code will be changed to a P code upon notification of a contract price or this code will be changed to an updated code upon determination of a valid price.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
