NSN 5320-01-219-5432 MS90354U0804, UBPT0804, UBPT08-04
Product Details | BLIND RIVET
5320-01-219-5432 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS90354U0804, UBPT0804, UBPT08-04, UBPT84, UBPT8-4, 5320-01-219-5432, 01-219-5432, 5320012195432, 012195432
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 1985 | 01-219-5432 | 00864 ( RIVET, BLIND ) |

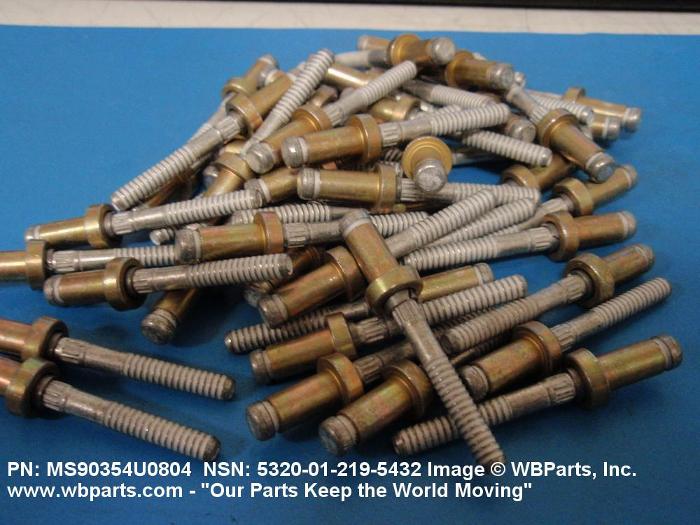

Drawings & Photos | NSN 5320-01-219-5432
Demand History | NSN 5320-01-219-5432
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS90354U0804 | 2022-09-265 | 200 | United States |
| MS90354U0804 | 2011-03-90 | 50 | United States |
| 5320-01-219-5432 | 2009-10-274 | 18295 | DIBBS |
| 5320-01-219-5432 | 2008-06-173 | 14900 | DIBBS |
| 5320-01-219-5432 | 2008-06-163 | 14900 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-219-5432
Technical Data | NSN 5320-01-219-5432
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL SLEEVE STEEL STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A331 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE ASTM A331 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OR ALUMINUM ALLOY SLEEVE CADMIUM OR ALUMINUM ALLOY STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2 CL 2 FED SPEC 1ST TREATMENT RESPONSE OR MIL-C-83488 MIL SPEC 2ND TREATMENT RESPONSE SLEEVE QQ-P-416,TY 1 CL 3 FED SPEC 1ST TREATMENT RESPONSE OR MIL-C-83488 MIL SPEC 2ND TREATMENT RESPONSE STEM |
| HARDNESS RATING | 326.0 KNOOP MINIMUM AND 466.0 KNOOP MAXIMUM SLEEVE 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM |
| HEAD STYLE | C38 TAPERED PAN |
| HEAD HEIGHT | 0.400 INCHES MINIMUM AND 0.432 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.130 INCHES MINIMUM AND 0.140 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.648 INCHES MAXIMUM |
| SHANK DIAMETER | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| GRIP LENGTH | 0.219 INCHES MINIMUM AND 0.282 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-219-5432
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
