NSN 5320-01-221-6871 CR3522P44, CR3522P4-4, 01-221-6871
Product Details | BLIND RIVET
5320-01-221-6871 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR3522P44, CR3522P4-4, 5320-01-221-6871, 01-221-6871, 5320012216871, 012216871
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 DEC 1985 | 01-221-6871 | 00864 ( RIVET, BLIND ) |

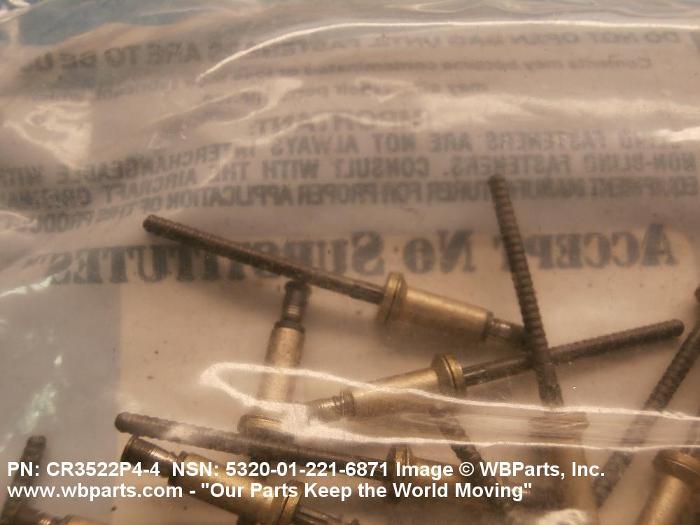

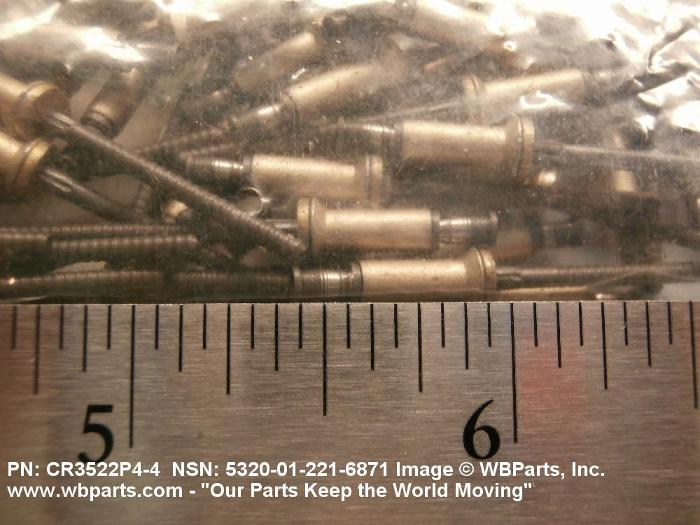

Drawings & Photos | NSN 5320-01-221-6871
Demand History | NSN 5320-01-221-6871
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-221-6871 | 2012-08-234 | 400 | United States |
| CR3522P4-4 | 2012-07-207 | 400 | |
| CR3522P4-4 | 2011-11-332 | 400 | |
| CR3522P4-4 | 2011-11-306 | 100 |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-221-6871
Technical Data | NSN 5320-01-221-6871
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 LOCKING RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD 3RD MATERIAL RESPONSE LOCKING RING |
| SURFACE TREATMENT | ALUMINUM SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | C-123 MFR REF SINGLE TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | UNIVERSAL |
| HEAD HEIGHT | 0.041 INCHES NOMINAL |
| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND |
| SHANK STYLE | SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.319 INCHES MINIMUM AND |
| SHANK DIAMETER | 0.125 INCHES MINIMUM AND |
| GRIP LENGTH | 0.188 INCHES MINIMUM AND |
| EXPANSION DEVICE | BREAK STEM |
| SPECIAL FEATURES | MIN BLIND CLEARANCE 0.355/HOLE LIMITS 0.129-0.132 |
Restrictions/Controls & Freight Information | NSN 5320-01-221-6871
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | U | 50 |
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 9Z | DLIS-K Battle Creek, MI 49037-3084 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
