NSN 5320-01-240-8098 NAS1921M05S02, SMLS100M0502, SMLS100M05-02
Product Details | BLIND RIVET
5320-01-240-8098 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1921M05S02, SMLS100M0502, SMLS100M05-02, 99240568, 5320-01-240-8098, 01-240-8098, 5320012408098, 012408098
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 19 SEP 1986 | 01-240-8098 | 00864 ( RIVET, BLIND ) |

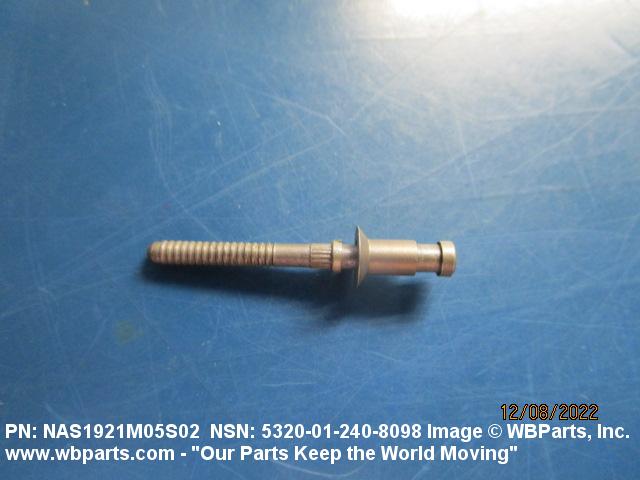

Drawings & Photos | NSN 5320-01-240-8098
Demand History | NSN 5320-01-240-8098
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1921M05S02 | 2025-11-325 | 188 | Japan |
| 5320-01-240-8098 | 2025-09-273 | 100 | United States |
| 5320-01-240-8098 | 2016-01-11 | 100 | DIBBS |
| 5320-01-240-8098 | 2016-01-03 | 100 | DIBBS |
| NAS1921M05S02 | 2013-10-297 | 160 | FR |
Cross Reference | NSN 5320-01-240-8098
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 99240568 | F6481 | THALES SA |
| NAS1921M05S02 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| SMLS100M05-02 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SMLS100M05-02 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| SMLS100M05-02 | 29666 | HUCK MFG CO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-240-8098
Related Products | NSN 5320-01-240-8098
Technical Data | NSN 5320-01-240-8098
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OR NICKEL ALLOY LOCKING RING NICKEL ALLOY SLEEVE STEEL CORROSION RESISTING STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS5737 ASSN STD 1ST MATERIAL RESPONSE OR QQ-N-281 FED SPEC 2ND MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS5737 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE LOCKING RING CADMIUM OR ALUMINUM SLEEVE PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING QQ-P-416,TY II,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OR NAS4006 ASSN STD SINGLE TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| MINIMUM TENSILE STRENGTH | 1050 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 1565 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

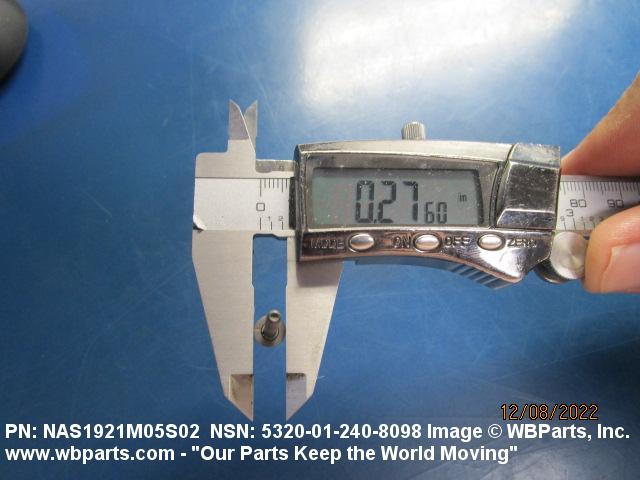

| HEAD MAJOR DIAMETER | 0.282 INCHES MINIMUM AND 0.290 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |

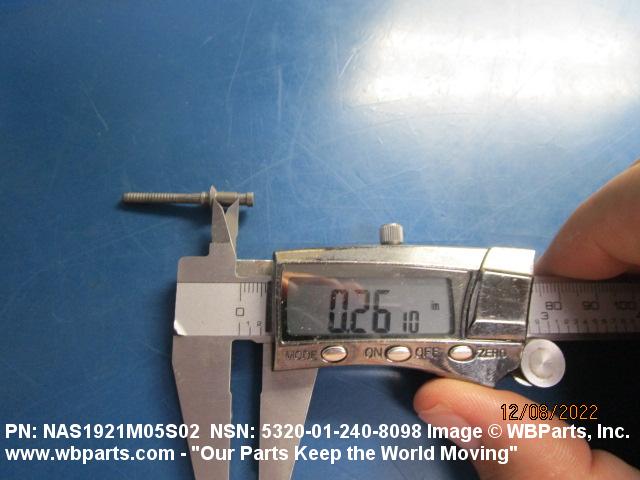

| FASTENER LENGTH | 0.263 INCHES NOMINAL |

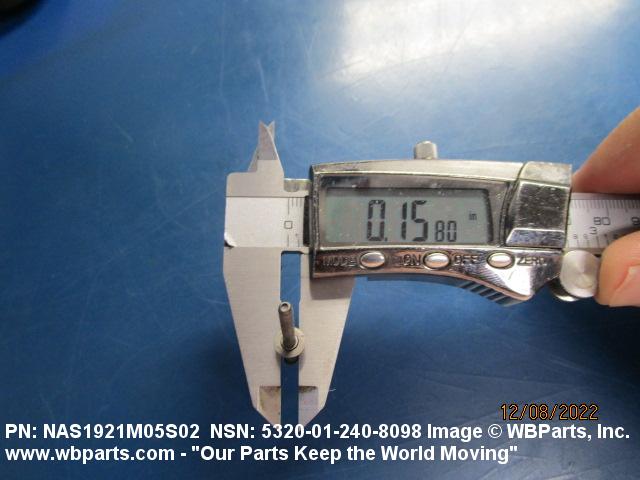

| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.101 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | SINGLE ACTION |
| SPECIFICATION/STANDARD DATA | 80205-NAS1921 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-240-8098
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZK | United Kingdom ZL ZM |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-240-8098
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
