NSN 5320-01-243-2944 MS20600AD4W11, CR9163411, CR9163-4-11

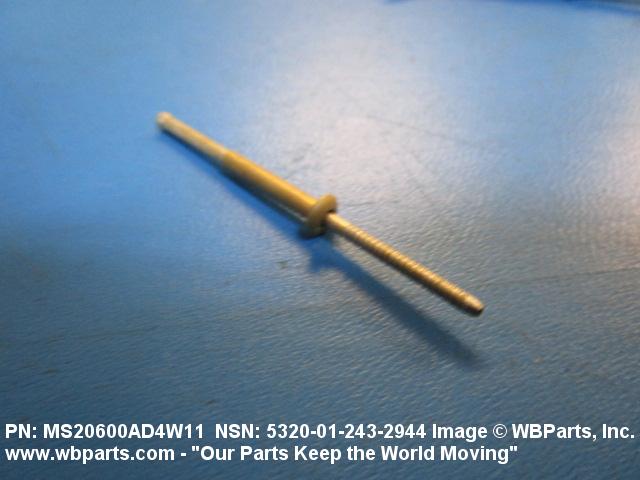

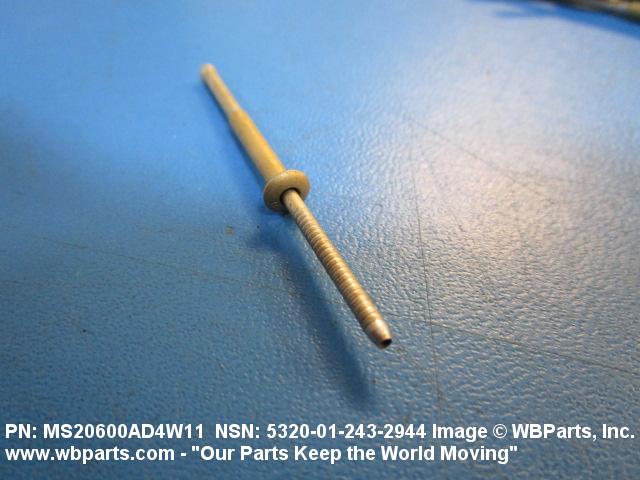

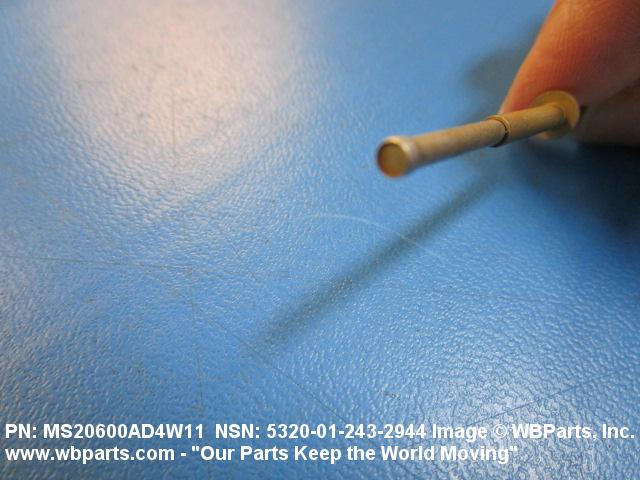

Product Details | BLIND RIVET
5320-01-243-2944 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS20600AD4W11, CR9163411, CR9163-4-11, 5320-01-243-2944, 01-243-2944, 5320012432944, 012432944
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 24 OCT 1986 | 01-243-2944 | 00864 ( RIVET, BLIND ) |

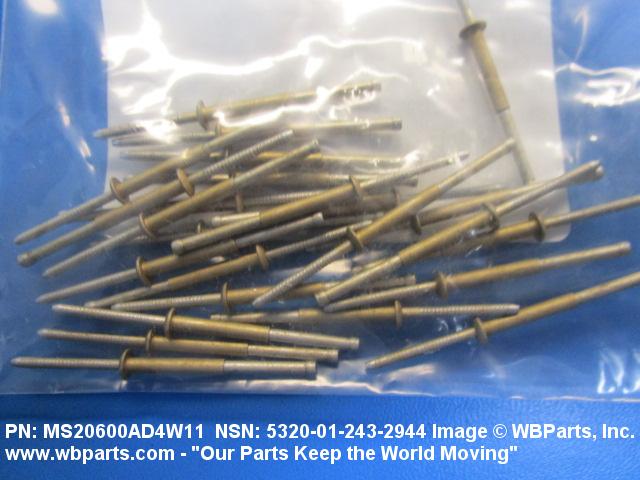

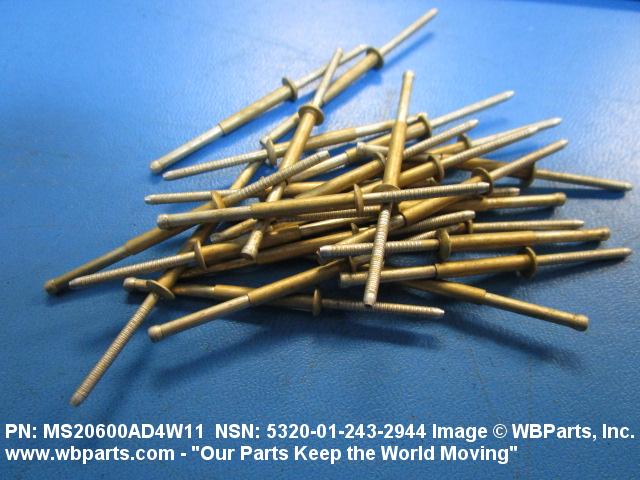

Drawings & Photos | NSN 5320-01-243-2944
Demand History | NSN 5320-01-243-2944
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20600AD4W11 | 2024-05-143 | 6 | United States |
| MS20600AD4W11 | 2021-07-208 | 12 | United States |
| 5320-01-243-2944 | 2014-10-282 | 1 | DIBBS |
| 5320-01-243-2944 | 2012-09-246 | 3 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-243-2944
Technical Data | NSN 5320-01-243-2944

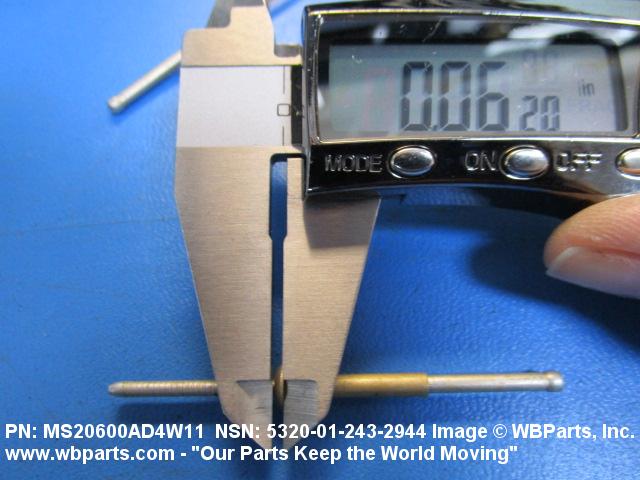

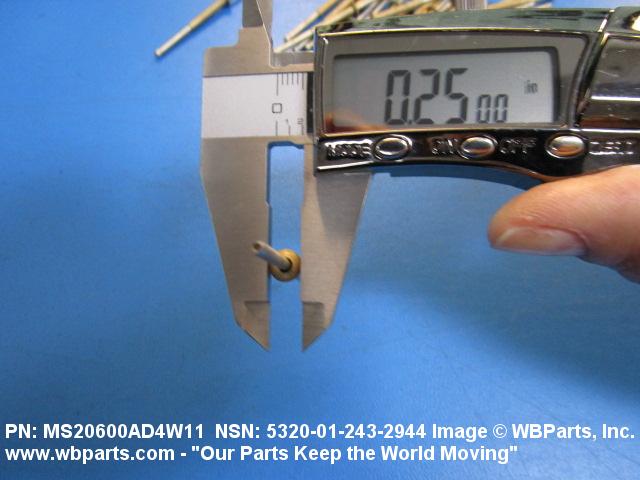

| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 SLEEVE ALUMINUM ALLOY 2017 STEM |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |

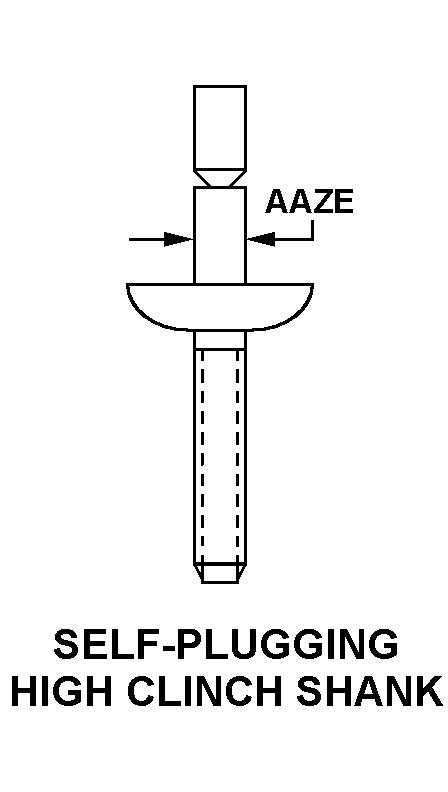

| SHANK STYLE | D29 SELF-PLUGGING HIGH CLINCH SHANK |

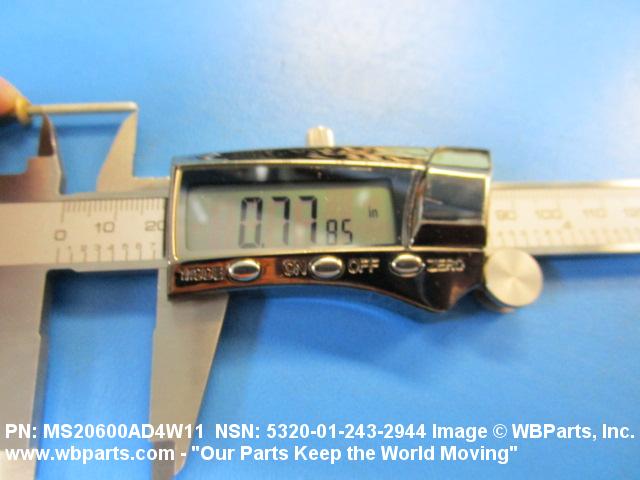

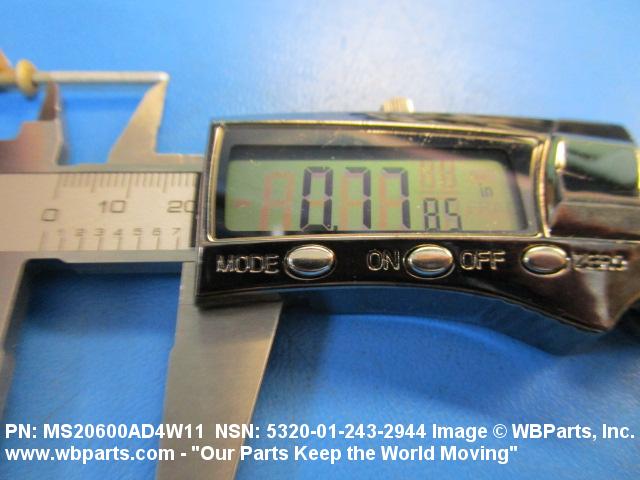

| FASTENER LENGTH | 0.775 INCHES MINIMUM AND 0.795 INCHES MAXIMUM |

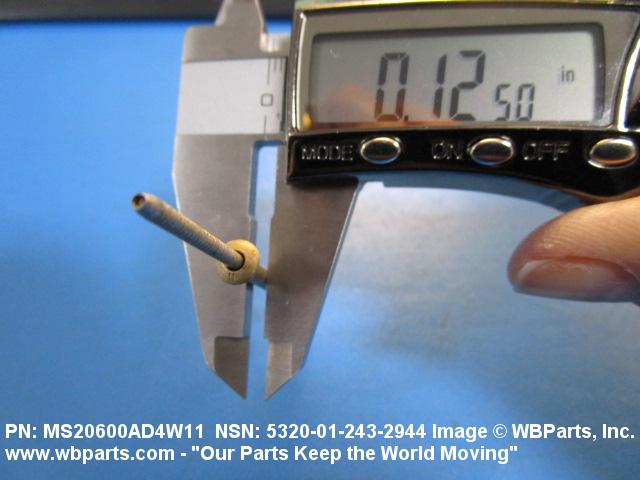

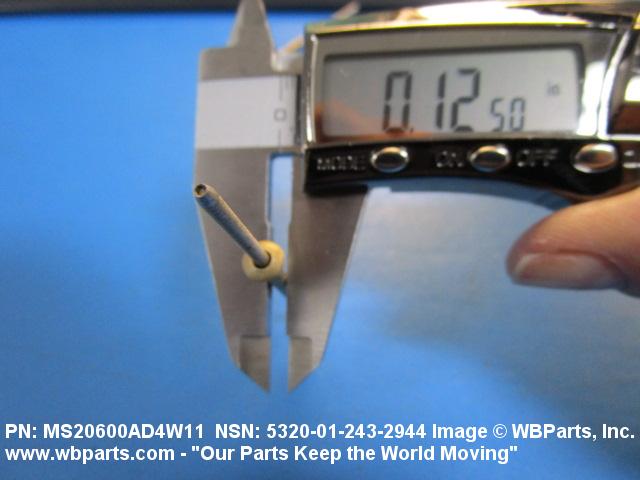

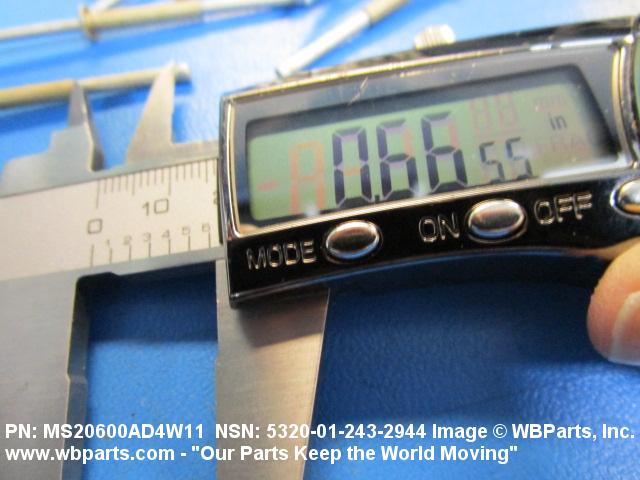

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.626 INCHES MINIMUM AND 0.687 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20600AD4W11 |
Restrictions/Controls & Freight Information | NSN 5320-01-243-2944
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZF | France ZG ZH |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
