NSN 5320-01-253-9066 AD45H, SMC56369811, SM-C-563698-11

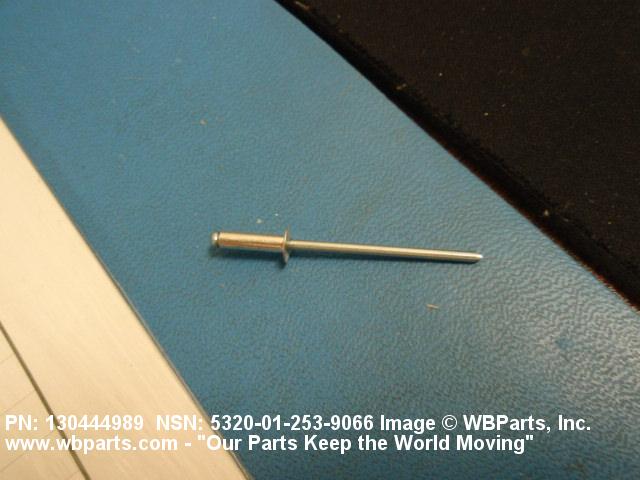

Product Details | BLIND RIVET
5320-01-253-9066 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: AD45H, SMC56369811, SM-C-563698-11, 13044498-9, 5320-01-253-9066, 01-253-9066, 5320012539066, 130444989, 012539066
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 APR 1987 | 01-253-9066 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-253-9066
Demand History | NSN 5320-01-253-9066
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SMC56369811 | 2024-10-295 | 2500 | Italy |
| SMC56369811 | 2021-03-84 | 2 | United States |
| SMC56369811 | 2015-02-49 | 20 | United States |
| AD45H | 2012-05-129 | 130 | US |
| AD45H | 2012-05-129 | 1300 | US |
| AD45H | 2012-05-129 | 5200 | US |
| SMC56369811 | 2011-05-124 | 10000 | TR |
| 5320-01-253-9066 | 2011-01-28 | 313 | TR |
| SMC56369811 | 2010-12-356 | 1 | Italy |
| 5320-01-253-9066 | 2010-12-350 | 3344 | DIBBS |
| 5320-01-253-9066 | 2010-11-328 | 3344 | DIBBS |
| 5320-01-253-9066 | 2010-09-255 | 240 | RO |
| AD45H | 2010-01-20 | 1292 | Italy |
| AD45H | 2009-12-362 | 11189 | Italy |
| SMC56369811 | 2009-12-362 | 11189 | Italy |
| SMC56369811 | 2009-12-362 | 11189 | Italy |
| 130444989 | 2009-12-337 | 450 | United States |
| SMC56369811 | 2009-11-321 | 450 | United States |
