NSN 5320-01-257-0755 MS90353U0610, UB100T0610, UB100T06-10
Product Details | BLIND RIVET
5320-01-257-0755 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS90353U0610, UB100T0610, UB100T06-10, 5320-01-257-0755, 01-257-0755, 5320012570755, 012570755
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 11 JUN 1987 | 01-257-0755 | 00864 ( RIVET, BLIND ) |

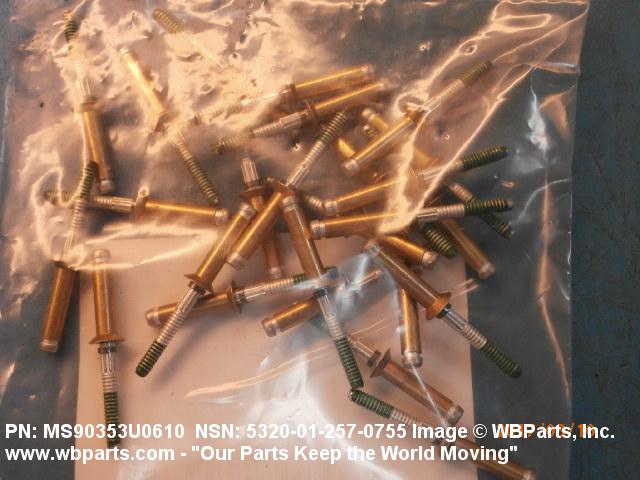

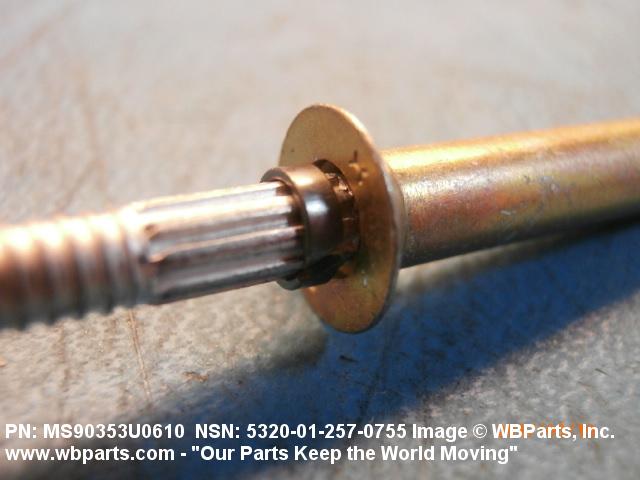

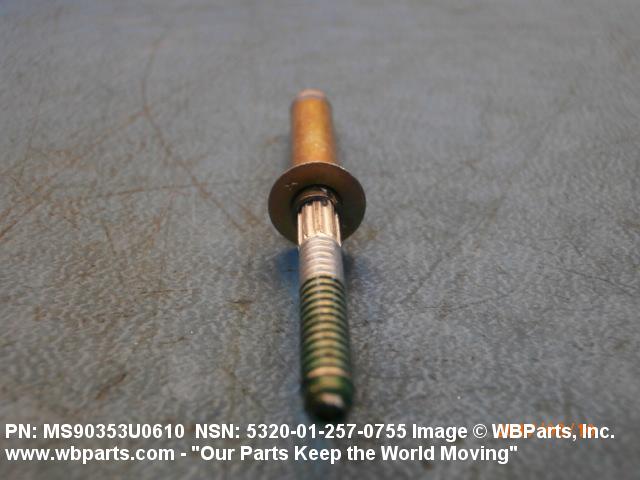

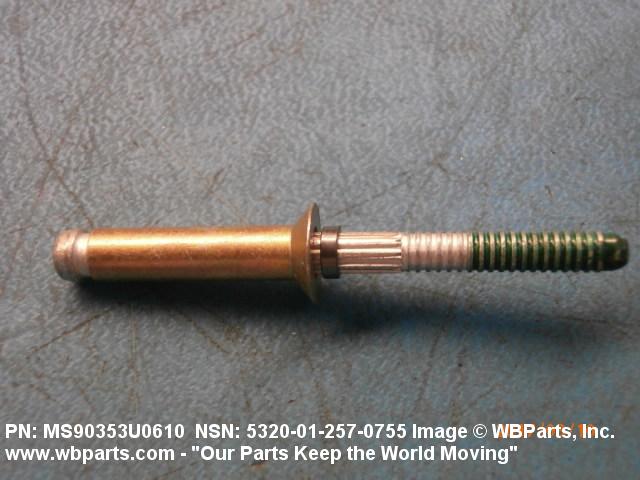

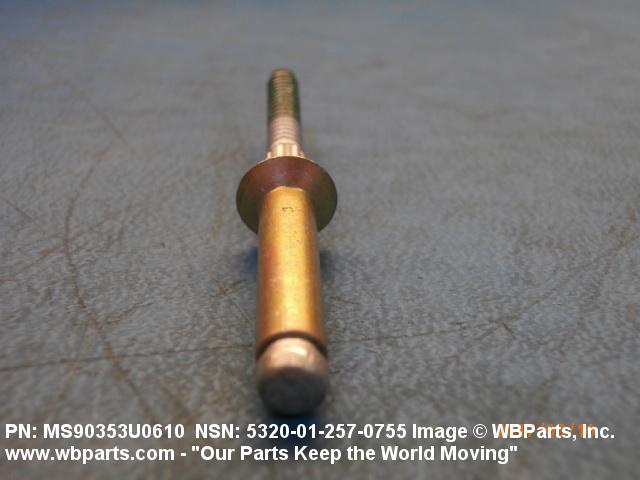

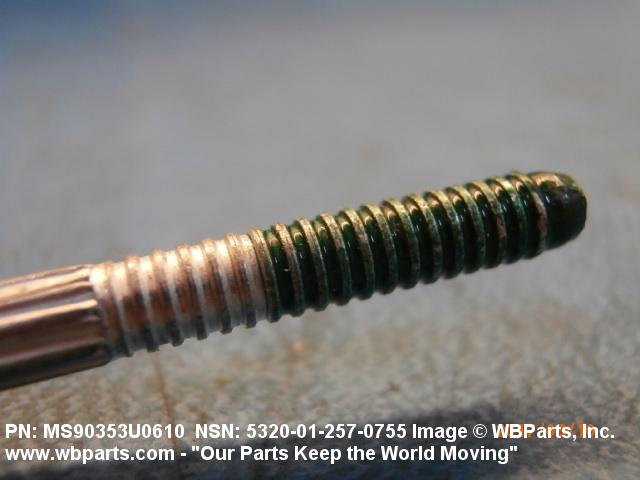

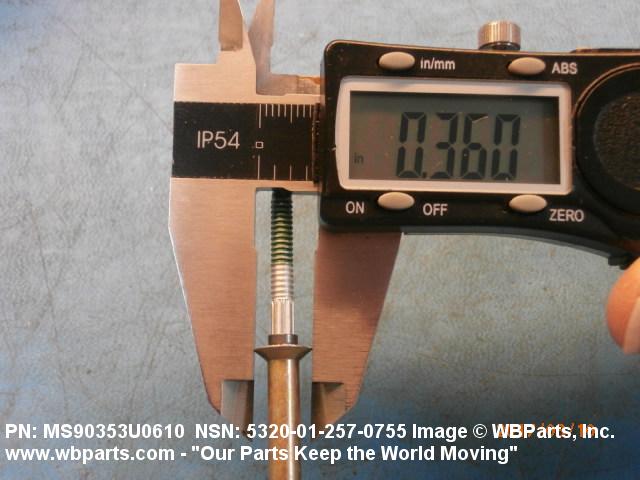

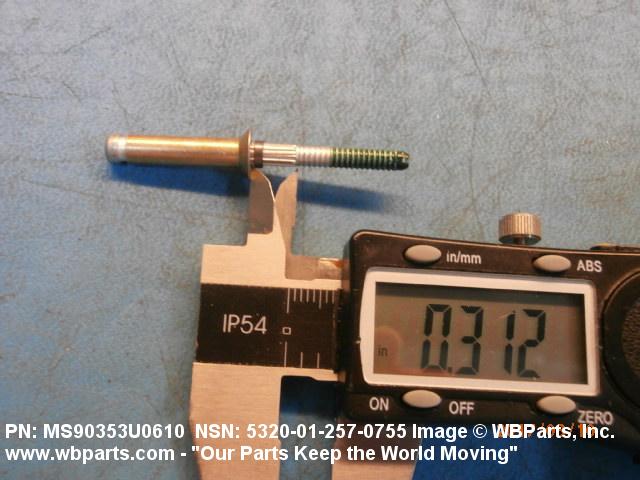

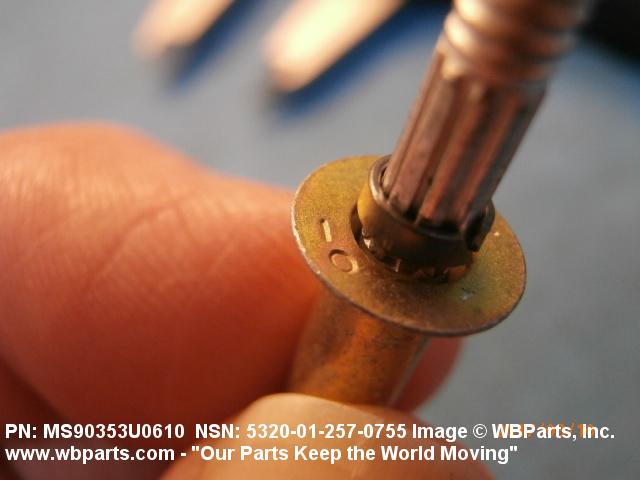

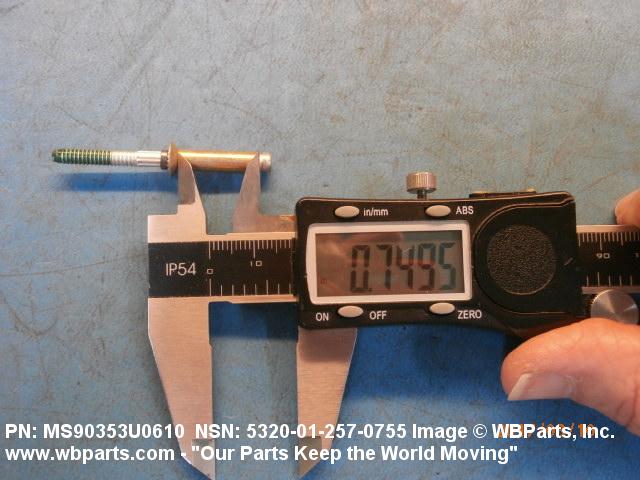

Drawings & Photos | NSN 5320-01-257-0755
Demand History | NSN 5320-01-257-0755
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS90353U0610 | 2017-03-66 | 25 | US |
