Product Details | BLIND RIVET
5320-01-294-8710 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1919C0402, NAS1919C04-02, 5320-01-294-8710, 01-294-8710, 5320012948710, 012948710
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23 FEB 1989 | 01-294-8710 | 00864 ( RIVET, BLIND ) |

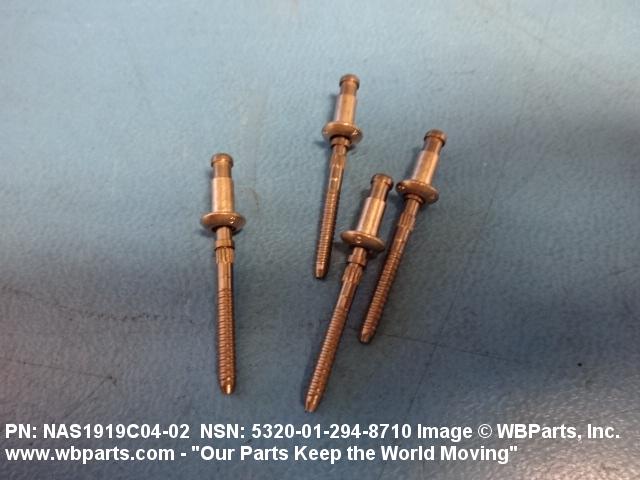

Drawings & Photos | NSN 5320-01-294-8710
Demand History | NSN 5320-01-294-8710
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1919C0402 | 2024-12-358 | 65 | United States |
| 5320-01-294-8710 | 2022-01-24 | 25 | US |
| 5320-01-294-8710 | 2020-10-283 | 110 | United States |
| 5320-01-294-8710 | 2019-07-186 | 100 | Malaysia |
| NAS1919C0402 | 2013-09-262 | 20 | United States |
| NAS1919C0402 | 2010-09-257 | 500 | US |
| 5320-01-294-8710 | 2010-07-201 | 50 | United Kingdom |
| 5320-01-294-8710 | 2008-06-179 | 800 | us |
| 5320-01-294-8710 | 2007-09-267 | 100 | US |
Cross Reference | NSN 5320-01-294-8710
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1919C04-02 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-294-8710
Related Products | NSN 5320-01-294-8710
Technical Data | NSN 5320-01-294-8710
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 LOCKING RING IRON ALLOY 660 SLEEVE IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE LOCKING RING AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE LOCKING RING PASSIVATE OR CADMIUM AND CHROMATE OR ALUMINUM ALLOY SLEEVE PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,CLASS 2,TYPE 2 FED SPEC 2ND TREATMENT RESPONSE OR NAS 4006 ASSN STD 3RD TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| SHEAR STRENGTH | 1020 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

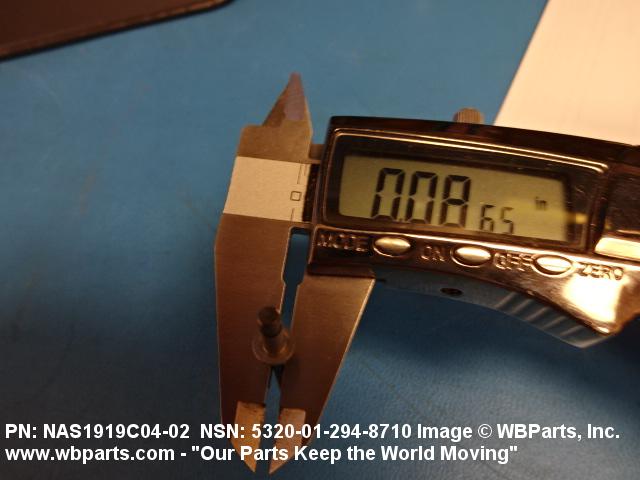

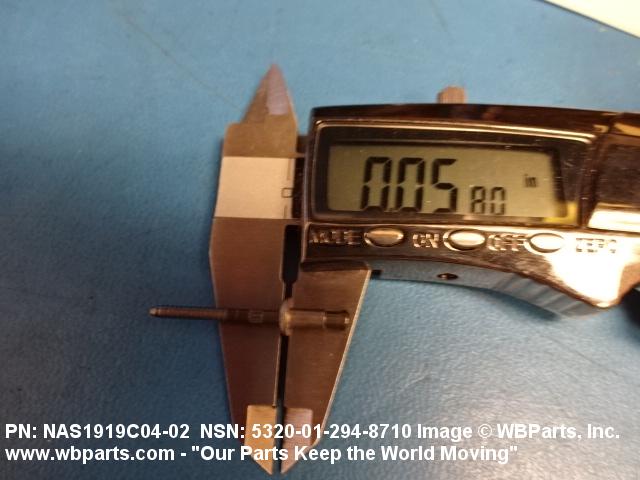

| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |

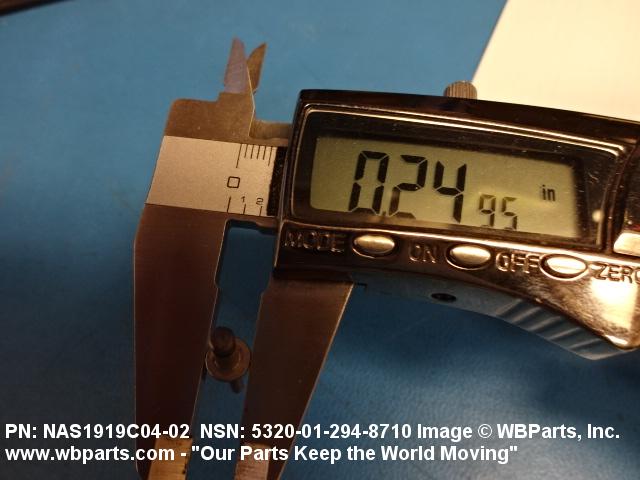

| HEAD MAJOR DIAMETER | 0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |

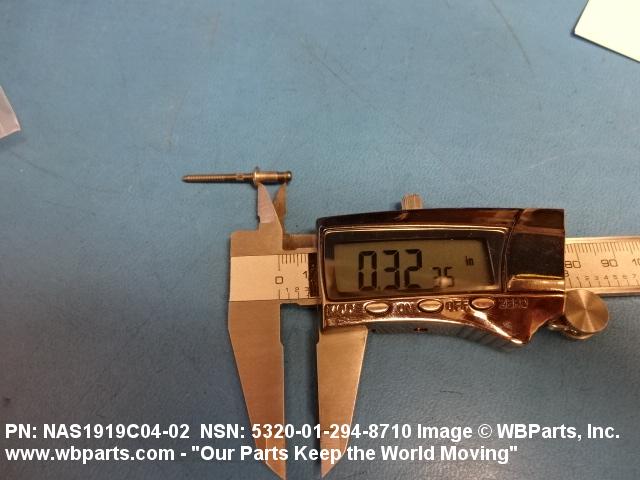

| FASTENER LENGTH | 0.323 INCHES MAXIMUM |

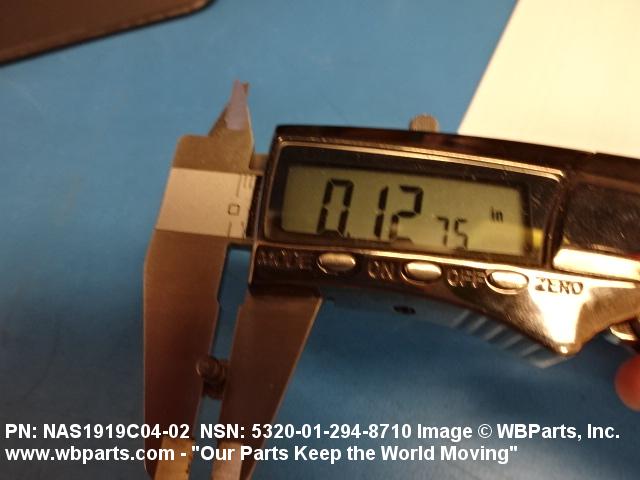

| SHANK DIAMETER | 0.125 INCHES NOMINAL |
