NSN 5320-01-320-6241 0, 01-320-6241, 013206241
Product Details | COMPRESSION RIVET
5320-01-320-6241 A two-piece fastening device consisting of a headed solid tapered shank portion designed to fit into the end of a headed hollow shank portion (cap), which is secured internally after insertion by means of compression at both ends.
Part Alternates: 0, 5320-01-320-6241, 01-320-6241, 5320013206241, 013206241
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 MAY 1990 | 01-320-6241 | 62412 ( RIVET, COMPRESSION ) |
Drawings & Photos | NSN 5320-01-320-6241
Demand History | NSN 5320-01-320-6241
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0 | 2017-04-95 | 5 | |
| 0 | 2016-03-77 | 15 | |
| 0 | 2012-05-147 | 1 | |
| 0 | 2012-04-118 | 1 | |
| 0 | 2012-04-102 | 1 | |
| 0 | 2011-08-228 | 1 |
Cross Reference | NSN 5320-01-320-6241
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0 | 60042 | ZODIAC OF NORTH AMERICA, INC. DIV MILPRO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-320-6241
Related Products | NSN 5320-01-320-6241
Technical Data | NSN 5320-01-320-6241
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.314 INCHES NOMINAL |
| SHANK STYLE | D8 TAPERED HOLLOW |
| FASTENER LENGTH | 0.312 INCHES NOMINAL |
| SHANK DIAMETER | 0.141 INCHES NOMINAL |
| HOLE DEPTH | 0.250 INCHES NOMINAL |
| GRIP LENGTH | 0.348 INCHES NOMINAL |

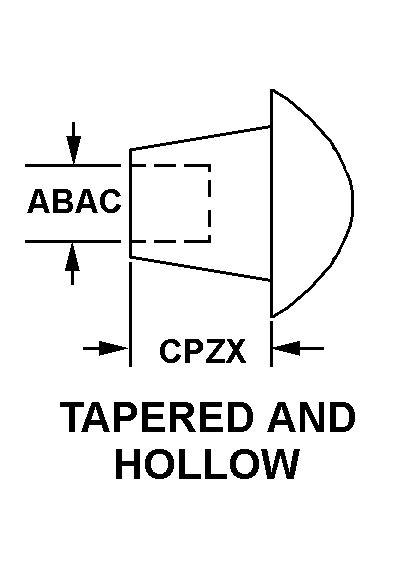

| CAP STYLE | F7 TAPERED AND HOLLOW |
| CAP INSIDE DIAMETER | 0.094 INCHES NOMINAL |
| LENGTH UNDER CAP HEAD | 0.156 INCHES NOMINAL |
| FEATURES PROVIDED | SELF-LOCKING |
| SPECIAL FEATURES | ACFT MODEL HH65A FLOTATION GEAR,RH |
| MANUFACTURERS CODE | 60042 |
| DESIGN CONTROL REFERENCE | 0 |
Restrictions/Controls & Freight Information | NSN 5320-01-320-6241
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5320-01-320-6241
Coast Guard| Category | Code | Description |
|---|---|---|
| Inventory Account Codes | A | Appropriations Purchase Account item managed for the Coast Guard by the respective Inventory Control Point. An unfunded requisition is required. |
| Inventory Account Codes | 0 | Item not controlled by serial number. |
| Special Material Content Codes | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | ZQC | Commanding Officer Department of Homeland Security USCG Aviation Logistics Center 1664 Weeksville Road Elizabeth City, NC 27909 |
| Agency | GP | U.S. Coast Guard |
| Service Organization | C | U.S. Coast Guard |
| Reparability | C | |
| Acquisition Advice Codes | C | SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
