NSN 5320-01-321-9747 MS90353U0515, 01-321-9747, 013219747
Product Details | BLIND RIVET
5320-01-321-9747 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS90353U0515, 5320-01-321-9747, 01-321-9747, 5320013219747, 013219747
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 JUN 1990 | 01-321-9747 | 00864 ( RIVET, BLIND ) |

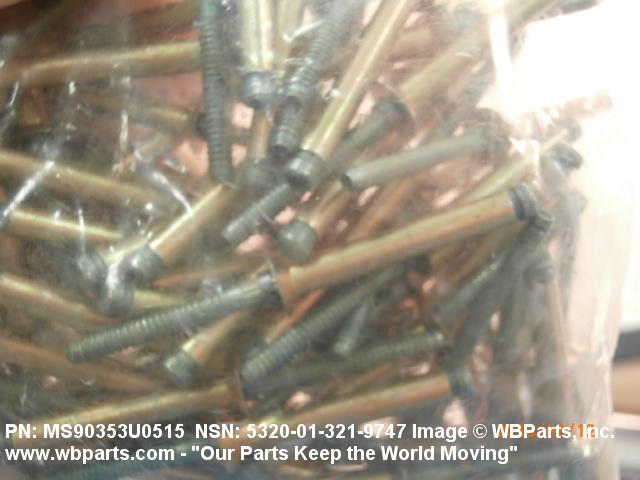

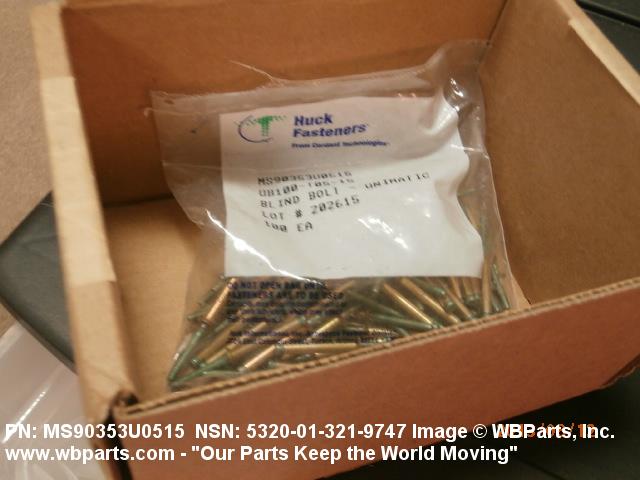

Drawings & Photos | NSN 5320-01-321-9747
Demand History | NSN 5320-01-321-9747
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-321-9747 | 2016-04-118 | 853 | DIBBS |
| 5320-01-321-9747 | 2016-03-82 | 174 | DIBBS |
| 5320-01-321-9747 | 2016-03-68 | 204 | DIBBS |
| MS90353U0515 | 2013-08-213 | 10 | Austria |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-321-9747
Related Products | NSN 5320-01-321-9747
Technical Data | NSN 5320-01-321-9747
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1010 OR STEEL COMP 1020 OR STEEL COMP 1144 OR STEEL COMP 4037 OR STEEL COMP 4130 MECHANICAL LOCK STEEL COMP 4027 OR STEEL COMP 4037 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | 66 FED STD ALL MATERIAL RESPONSES MECHANICAL LOCK ASTM A331 ASSN STD ALL MATERIAL RESPONSES SLEEVE ASTM A331 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM AND CHROMATE MECHANICAL LOCK CADMIUM AND CHROMATE SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES MECHANICAL LOCK QQ-P-416,TY 2,CL 2 FED SPEC ALL TREATMENT RESPONSES SLEEVE QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HARDNESS RATING | 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM |
| MINIMUM TENSILE STRENGTH | 112000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.333 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.162 INCHES MINIMUM AND 0.164 INCHES MAXIMUM |
| GRIP LENGTH | 0.906 INCHES MINIMUM AND 0.970 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | SINGLE ACTION FASTENER WITHOUT FRANGIBLE TYPE OF LOCKING COLLAR OR LOCKING COLLAR CAP |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS90353U0515 |
Restrictions/Controls & Freight Information | NSN 5320-01-321-9747
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-321-9747
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
