NSN 5320-01-322-3184 BN360PB4283, BN360PB-428-3 , 2868669-37
Product Details | BLIND RIVET
5320-01-322-3184 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: BN360PB4283, BN360PB-428-3 , 2868669-37, 5320-01-322-3184, 01-322-3184, 5320013223184, 286866937, 013223184
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 JUL 1990 | 01-322-3184 | 00864 ( RIVET, BLIND ) |

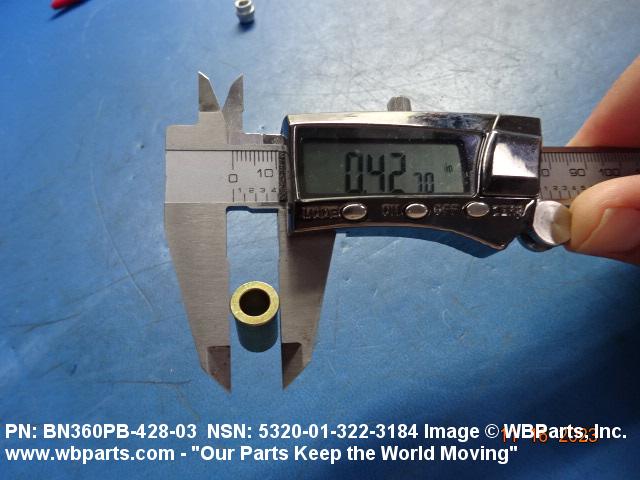

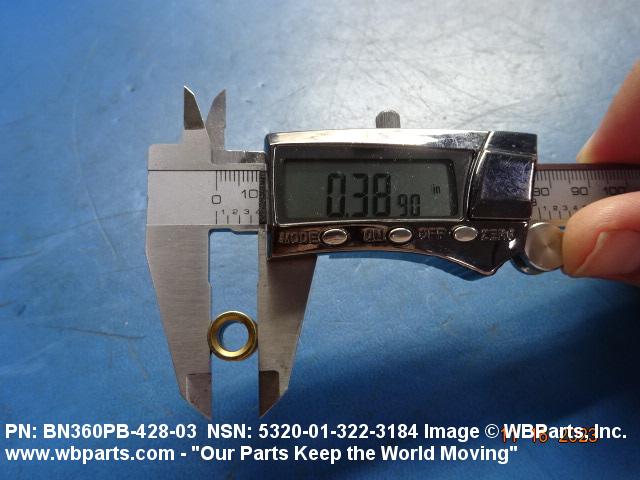

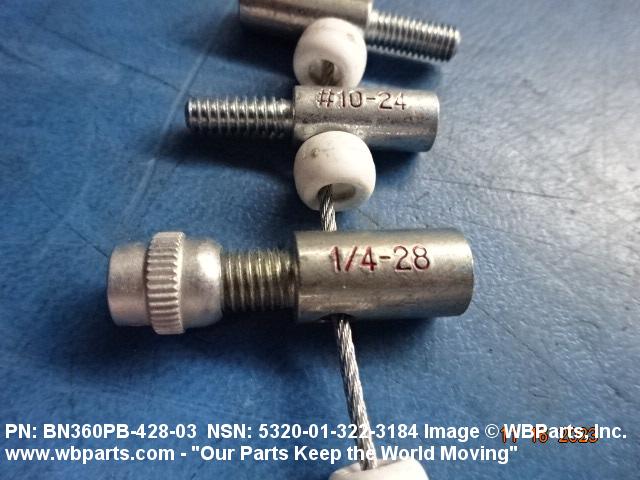

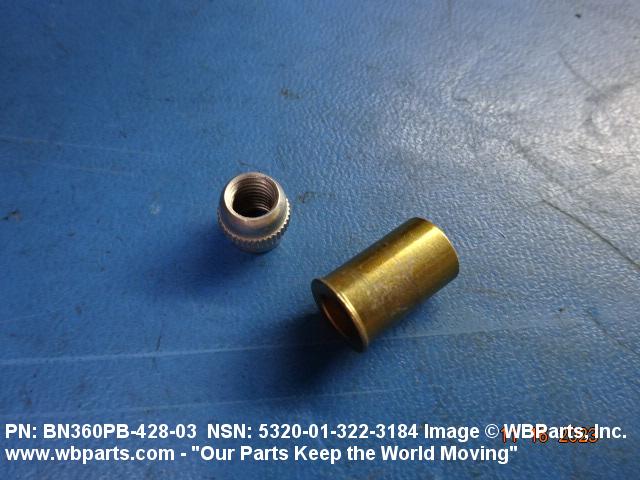

Drawings & Photos | NSN 5320-01-322-3184
Demand History | NSN 5320-01-322-3184
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-322-3184 | 2023-11-312 | 110 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-322-3184
Technical Data | NSN 5320-01-322-3184
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 431 EXPANDER STEEL COMP 304 OR STEEL COMP 305 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-18732,COND HT-125 MIL SPEC SINGLE MATERIAL RESPONSE EXPANDER QQ-S-763,COND A FED SPEC 1ST MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE EXPANDER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE EXPANDER |
| HEAT TREATMENT | ANNEALED SLEEVE |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.445 INCHES MINIMUM AND 0.450 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.0 DEGREES MINIMUM AND 102.0 DEGREES MAXIMUM |
| SHANK STYLE | D44 BLIND RIVET, NUT AND BOLT |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.387 INCHES MINIMUM AND 0.390 INCHES MAXIMUM |
| GRIP LENGTH | 0.157 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| THREAD SERIES DESIGNATOR | UNJF |
| NOMINAL THREAD SIZE | 0.250 INCHES |
| THREAD CLASS | 3B |
| THREAD QUANTITY PER INCH | 28 |
| THREAD DIRECTION | RIGHT-HAND |
| EXPANSION DEVICE | THREADED MANDREL |
| SPECIAL FEATURES | FURNISHED WITHOUT BOLT |
Restrictions/Controls & Freight Information | NSN 5320-01-322-3184
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-322-3184
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
