NSN 5320-01-334-3676 NAS9307M403, NAS9307M-4-03, CR3523403

Product Details | BLIND RIVET

5320-01-334-3676 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: NAS9307M403, NAS9307M-4-03, CR3523403, CR3523-4-03, CR3523P403, CR3523P-4-03 , CR3523P43, CR3523P-4-3, HR3523403, HR3523-4-03, 5320-01-334-3676, 01-334-3676, 5320013343676, 013343676

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	21 FEB 1991	01-334-3676	00864 ( RIVET, BLIND )

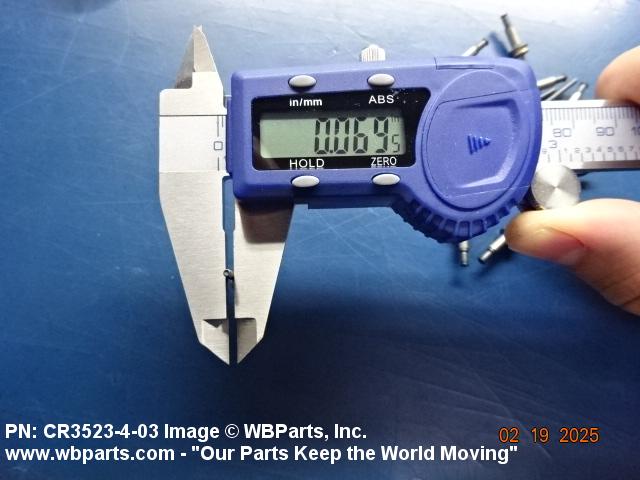

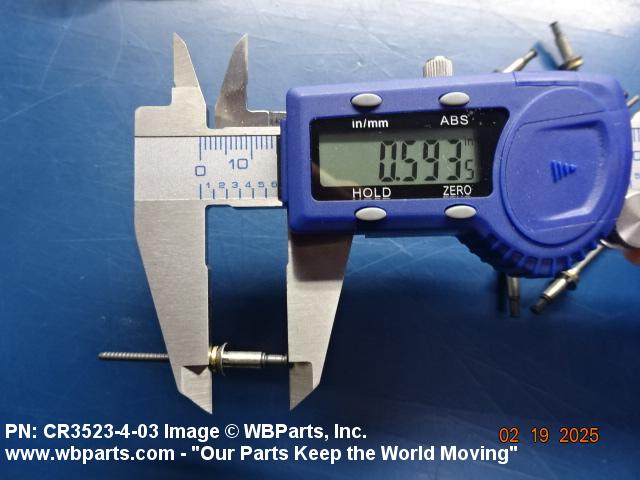

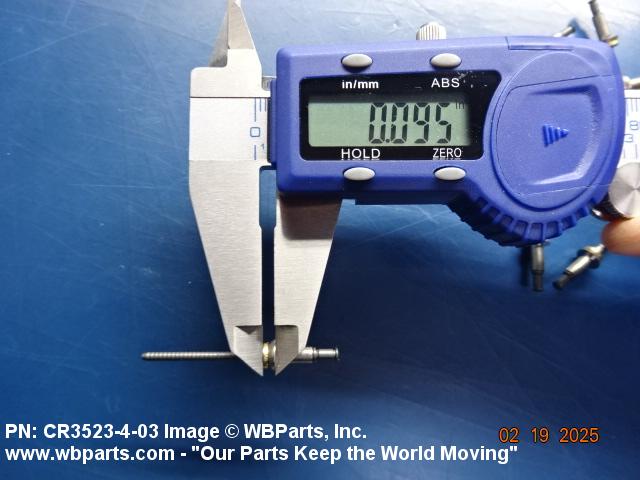

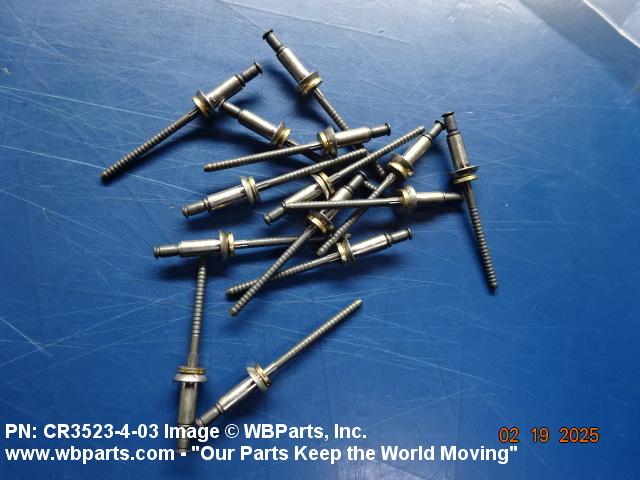

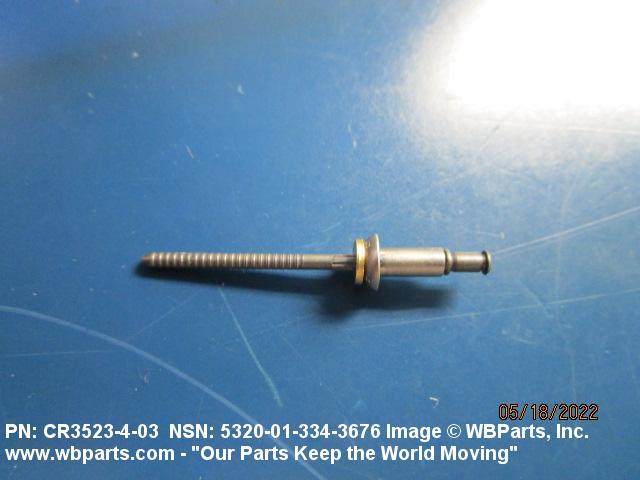

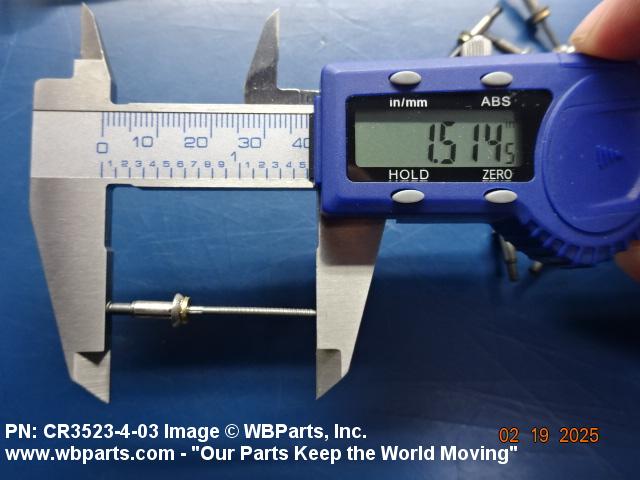

Drawings & Photos | NSN 5320-01-334-3676

Part Number	Request Date	QTY	Origin
5320-01-334-3676	2025-12-336	100000	India
5320-01-334-3676	2025-12-336	100000	India
5320-01-334-3676	2025-12-336	100000	India
NAS9307M403	2025-11-330	100000	FR
CR3523403	2025-10-294	200	United States
5320-01-334-3676	2025-09-262	5061	DIBBS
5320-01-334-3676	2025-09-254	5061	DIBBS
CR3523403	2025-08-226	25	United States
NAS9307M403	2025-07-204	600	US
CR3523403	2025-07-189	350	Canada
NAS9307M403	2025-07-184	816	Canada
NAS9307M403	2025-06-181	600	US
5320-01-334-3676	2025-06-174	3050	DIBBS
NAS9307M403	2025-06-171	760	CN
5320-01-334-3676	2025-06-166	3050	DIBBS
5320-01-334-3676	2025-05-129	2131	DIBBS
5320-01-334-3676	2025-04-119	2131	DIBBS
5320-01-334-3676	2025-04-99	7970	DIBBS
NAS9307M403	2025-02-43	1000	United States
NAS9307M403	2025-02-43	1500	United States
NAS9307M403	2025-02-43	2000	United States
NAS9307M403	2025-02-41	500	United States
CR3523403	2024-09-269	200	China
CR3523403	2021-11-322	200	United States
CR3523403	2020-01-29	50	us
CR3523-4-03	2019-03-60	15	UK
5320-01-334-3676	2018-02-52	1	DIBBS-RFPs
NAS9307M403	2018-01-03	26	United States
5320-01-334-3676	2016-05-147	5532	DIBBS
5320-01-334-3676	2016-02-42	4797	DIBBS
5320-01-334-3676	2011-12-349	2000	US
CR3523P43	2011-09-257	50	us
CR3523P403	2010-10-299	100	US
5320-01-334-3676	2009-12-335	50000	DIBBS
CR3523403	2009-09-267	145	United States
5320-01-334-3676	2009-06-155	37506	DIBBS
5320-01-334-3676	2009-04-112	8416	DIBBS
CR3523403	2009-04-93	400	Hong Kong
CR3523403	2008-10-305	120	US
5320-01-334-3676	2008-05-133	2191	DIBBS
5320-01-334-3676	2008-02-42	50	US

Cross Reference | NSN 5320-01-334-3676

Part Number	Cage Code	Manufacturer
CR3523-4-03	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3523P-4-3	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3523P-4-3	F7652	B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS
CR3523P-4-3	R1120	SATAIR A/S
HR3523-4-03	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
NAS9307M-4-03	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-334-3676

Compare

Related Products | NSN 5320-01-334-3676

5320-01-334-3677, 5320-01-334-3678, 5320-01-334-3679, 5320-01-334-3680, 5320-01-334-3682

Technical Data | NSN 5320-01-334-3676

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 OR STEEL COMP 304 LOCKING RING NICKEL ALLOY 400 OR NICKEL ALLOY R-405 SLEEVE STEEL COMP 632 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5731 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5639 ASSN STD 2ND MATERIAL RESPONSE LOCKING RING QQ-N-281 FED SPEC ALL MATERIAL RESPONSES SLEEVE AMS 5657 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	PASSIVATE LOCKING RING
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM

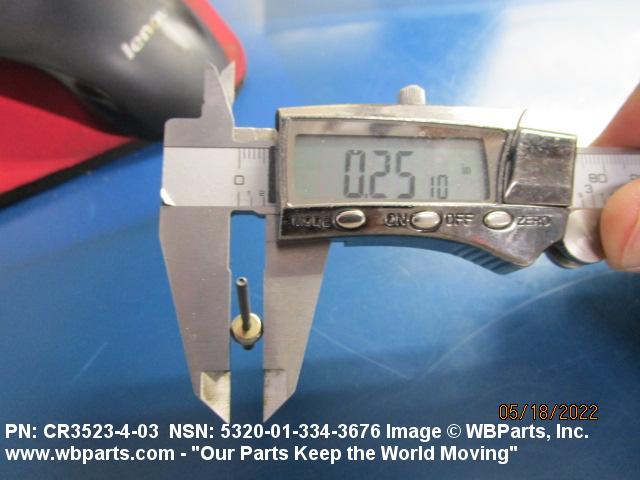

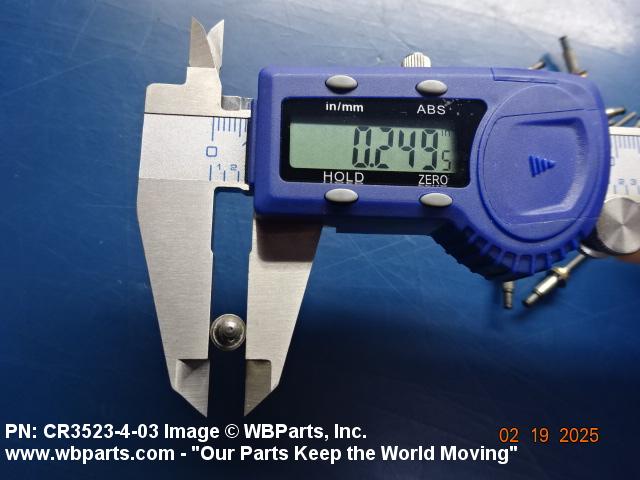

HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	ANY ACCEPTABLE

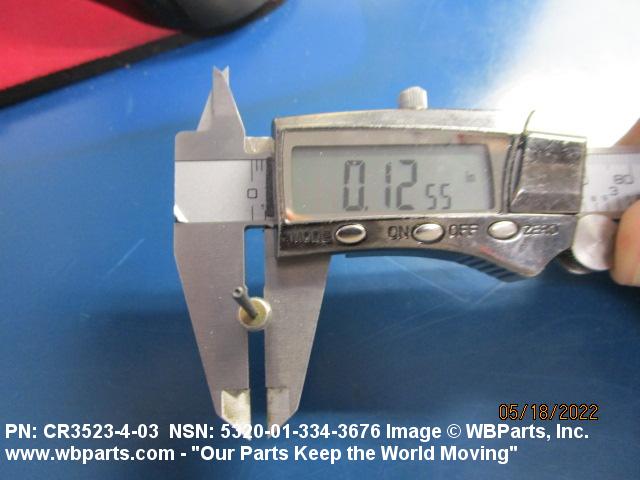

SHANK DIAMETER	0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM
GRIP LENGTH	0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM
EXPANSION DEVICE	PLAIN STEM-TYPE T
SPECIFICATION/STANDARD DATA	80205-NAS9307 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD

Restrictions/Controls & Freight Information | NSN 5320-01-334-3676

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KH	Defense Industrial Supply Center Philadelphia, PA 19111
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-334-3676

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
