NSN 5320-01-335-2967 MS20605R3W10, 01-335-2967, 013352967
Product Details | BLIND RIVET
5320-01-335-2967 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS20605R3W10, 5320-01-335-2967, 01-335-2967, 5320013352967, 013352967
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAR 1991 | 01-335-2967 | 00864 ( RIVET, BLIND ) |

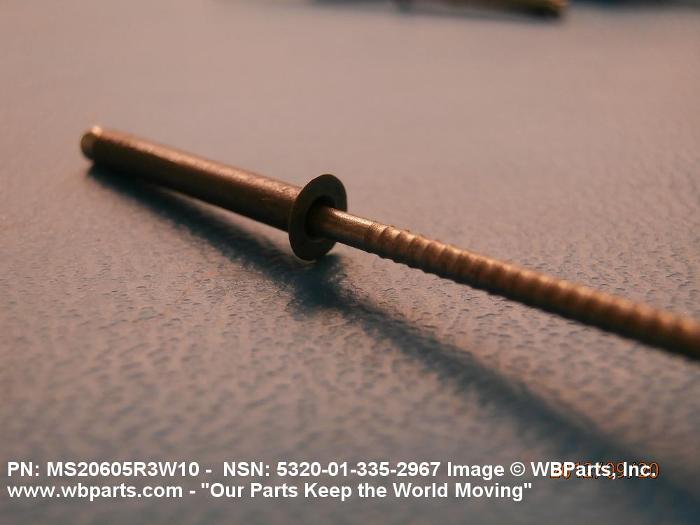

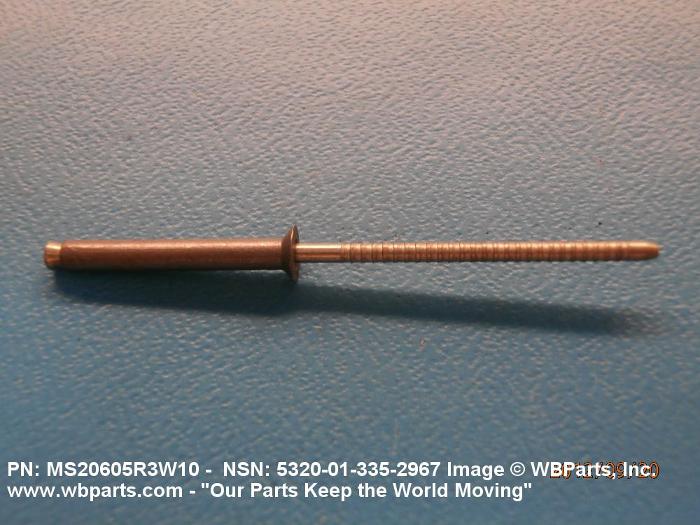

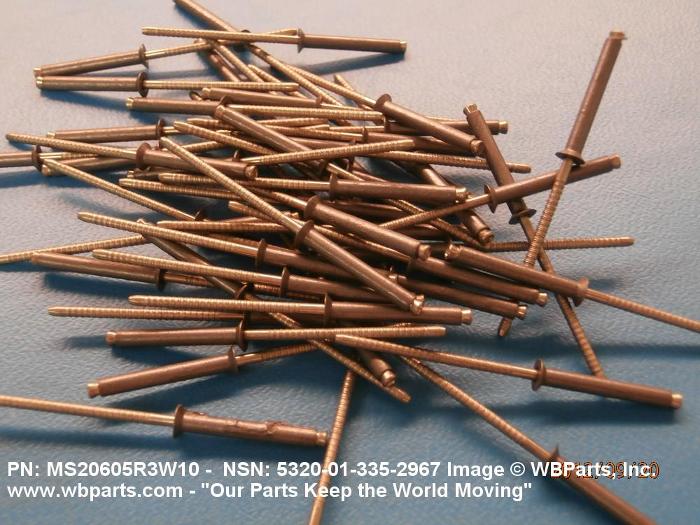

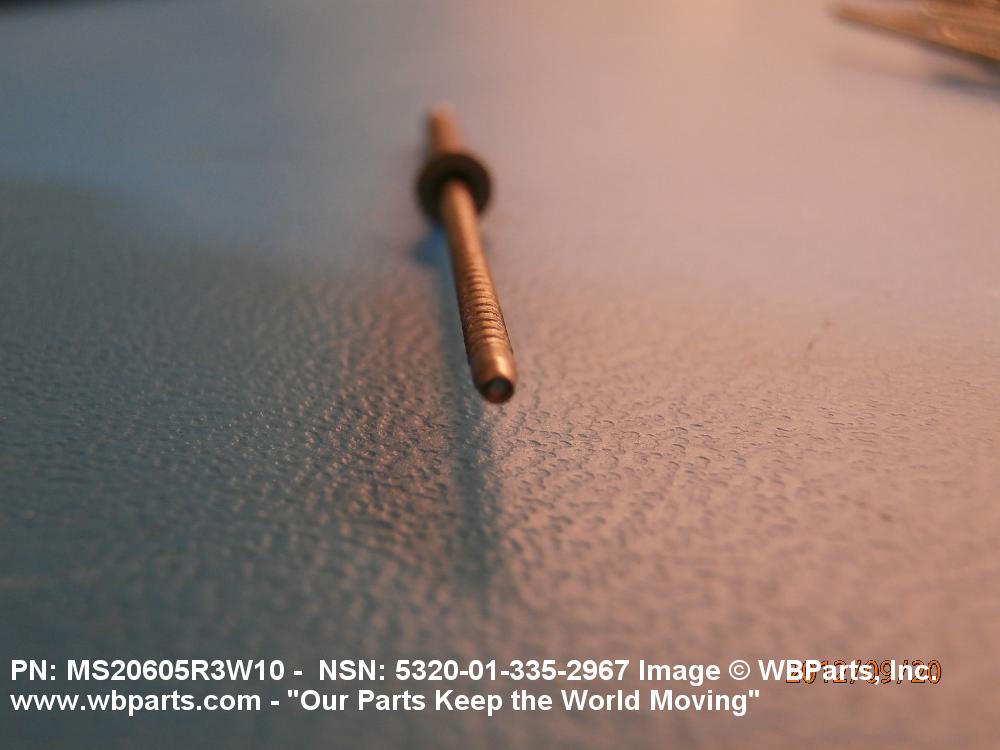

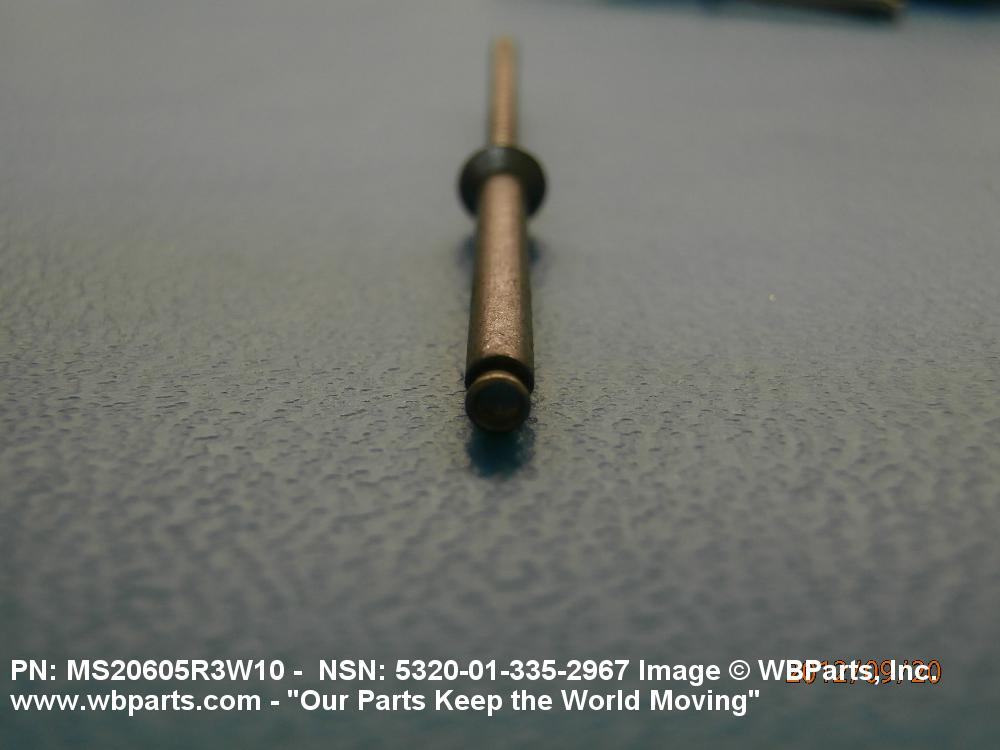

Drawings & Photos | NSN 5320-01-335-2967
Demand History | NSN 5320-01-335-2967
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-335-2967 | 2025-07-204 | 60 | US |
| 5320-01-335-2967 | 2025-02-35 | 235 | DIBBS |
| 5320-01-335-2967 | 2024-06-179 | 200 | US |
| 5320-01-335-2967 | 2024-03-65 | 257 | DIBBS |
| MS20605R3W10 | 2012-09-258 | 50 | Taiwan |
| MS20605R3W10 | 2012-05-131 | 100 | Taiwan |
| MS20605R3W10 | 2011-11-306 | 25 | CH |
Cross Reference | NSN 5320-01-335-2967
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS20605R3W10 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-335-2967
Technical Data | NSN 5320-01-335-2967
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.179 INCHES NOMINAL |
| COUNTERSINK ANGLE | 89.0 DEGREES MINIMUM AND 111.0 DEGREES MAXIMUM |
| SHANK STYLE | D31 PIN-RIVET, STRAIGHT, THREADED |
| SHANK DIAMETER | 0.094 INCHES NOMINAL |
| GRIP LENGTH | 0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20605R3W10 |
Restrictions/Controls & Freight Information | NSN 5320-01-335-2967
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5320-01-335-2967
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | FR | TL:F-22 AIRCRAFT |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F01 | Lockheed Martin Aeronautical Systems Marietta, GA 30063-0659 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
