NSN 5320-01-336-5407 MS21141U0505, KPD3297018, KPD329-7-018

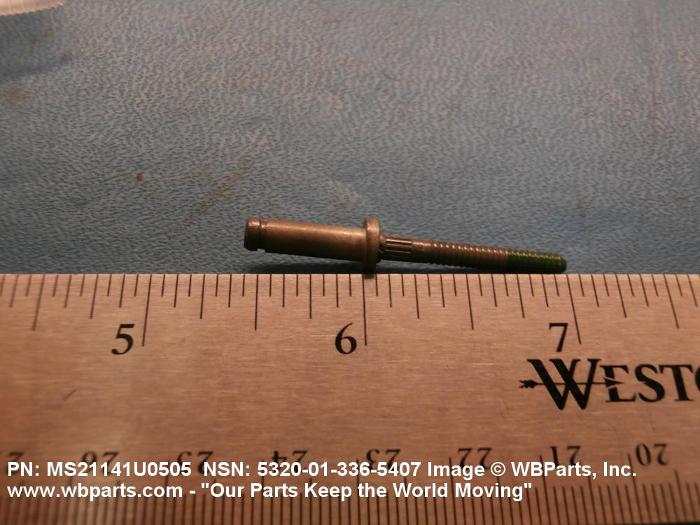

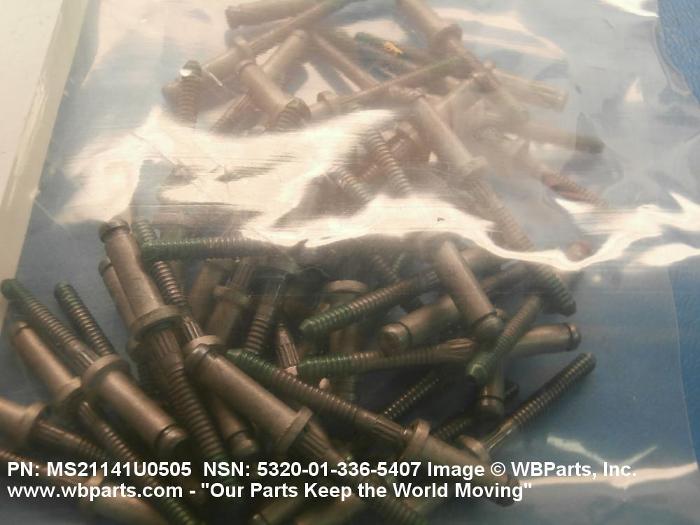

Product Details | BLIND RIVET
5320-01-336-5407 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS21141U0505, KPD3297018, KPD329-7-018 , 5320-01-336-5407, 01-336-5407, 5320013365407, 013365407
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 27 MAR 1991 | 01-336-5407 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-336-5407
Demand History | NSN 5320-01-336-5407
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-336-5407 | 2025-06-167 | 26 | United States |
| 5320-01-336-5407 | 2025-06-157 | 1323 | DIBBS |
| 5320-01-336-5407 | 2025-05-149 | 1323 | DIBBS |
| 5320-01-336-5407 | 2025-03-72 | 1223 | DIBBS |
| 5320-01-336-5407 | 2025-03-64 | 1223 | DIBBS |
| 5320-01-336-5407 | 2024-08-225 | 763 | DIBBS |
| 5320-01-336-5407 | 2020-10-297 | 500 | United States |
| MS21141U0505 | 2015-05-139 | 10 | PK |
| MS21141U0505 | 2013-07-189 | 180 | HK |
| MS21141U0505 | 2013-01-04 | 11 | United States |
Cross Reference | NSN 5320-01-336-5407
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21141U0505 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-336-5407
Technical Data | NSN 5320-01-336-5407
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OR CADMIUM AND CHROMATE SLEEVE PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,TY2,CL2 FED SPEC 2ND TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| MINIMUM TENSILE STRENGTH | 95000 POUNDS PER SQUARE INCH |
| HEAD STYLE | C21 STRAIGHT PAN |
| HEAD HEIGHT | 0.062 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.250 INCHES MINIMUM AND 0.272 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.162 INCHES MINIMUM AND 0.164 INCHES MAXIMUM |
| GRIP LENGTH | 0.281 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
| IDENTIFICATION CODE COLOR | GREEN |
| SPECIAL FEATURES | THE LETTER "U" SIGNIFIES SINGLE ACTION FASTENER WITHOUT FRANGIBLE TYPE OF LOCKING COLLAR OR LOCKING COLLAR CAP |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21141U0505 |
Restrictions/Controls & Freight Information | NSN 5320-01-336-5407
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5320-01-336-5407
Air Force| Category | Code | Description |
|---|---|---|
| Materiel Management Aggregation Code | BQ | TN:B-2 TSSP, NORTHROP GRUMMAN |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Budget Code | S | 1557X3010:Aircraft Replenishment Spares |
| Source of Supply | F59 | Northrop Grumman IS ACS 2501 Liberty Parkway, Suite 101 Midwest, OK 73110-2885 |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
