NSN 5320-01-365-0500 NAS9302B402, NAS9302B-4-02, HR3212402
Product Details | BLIND RIVET
5320-01-365-0500 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS9302B402, NAS9302B-4-02, HR3212402, HR3212-4-02, 5320-01-365-0500, 01-365-0500, 5320013650500, 013650500
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 SEP 1992 | 01-365-0500 | 00864 ( RIVET, BLIND ) |

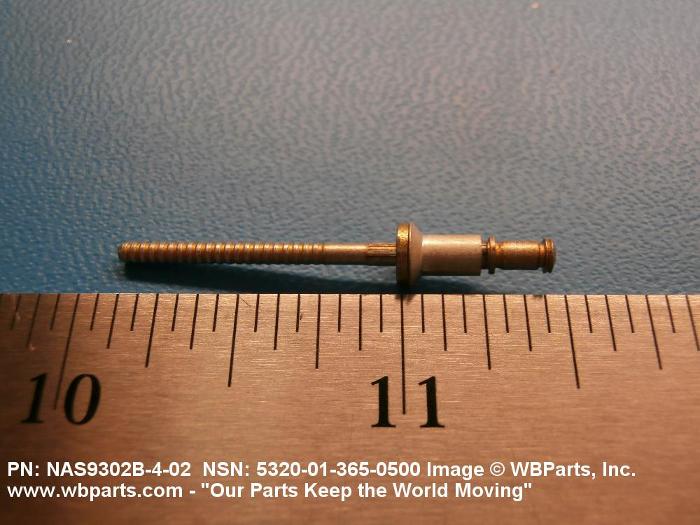

Drawings & Photos | NSN 5320-01-365-0500
Demand History | NSN 5320-01-365-0500
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-365-0500 | 2025-08-241 | 2368 | DIBBS |
| 5320-01-365-0500 | 2025-08-233 | 2368 | DIBBS |
| 5320-01-365-0500 | 2023-05-134 | 1552 | DIBBS |
| NAS9302B402 | 2022-05-123 | 50 | US |
| NAS9302B402 | 2022-04-119 | 100 | US |
| NAS9302B402 | 2021-12-354 | 200 | United States |
| NAS9302B402 | 2021-03-77 | 20 | United States |
| NAS9302B-4-02 | 2021-02-53 | 250 | BD |
| NAS9302B-4-02 | 2021-02-53 | 250 | BD |
| NAS9302B402 | 2018-03-67 | 180 | Korea |
| NAS9302B402 | 2012-07-185 | 100 | United States |
| NAS9302B402 | 2012-07-185 | 100 | United States |
| NAS9302B402 | 2011-07-187 | 3000 | United States |
