NSN 5320-01-421-0484 M24243/6-A406H, M242436A406H, MILR24243
Product Details | BLIND RIVET

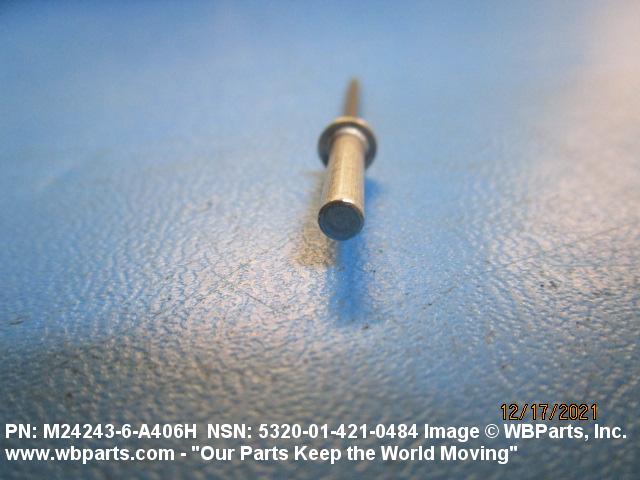

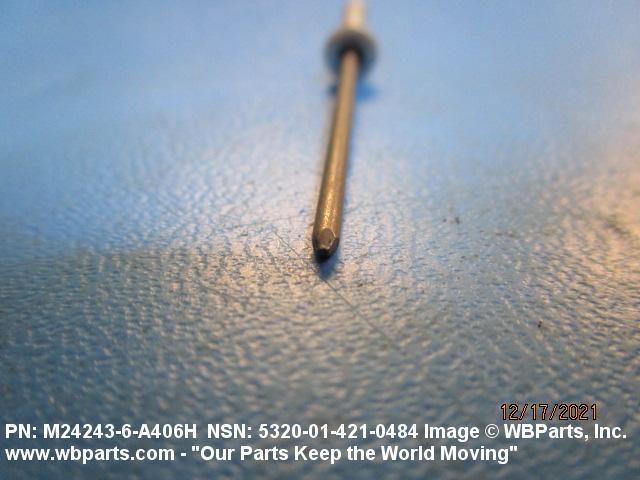

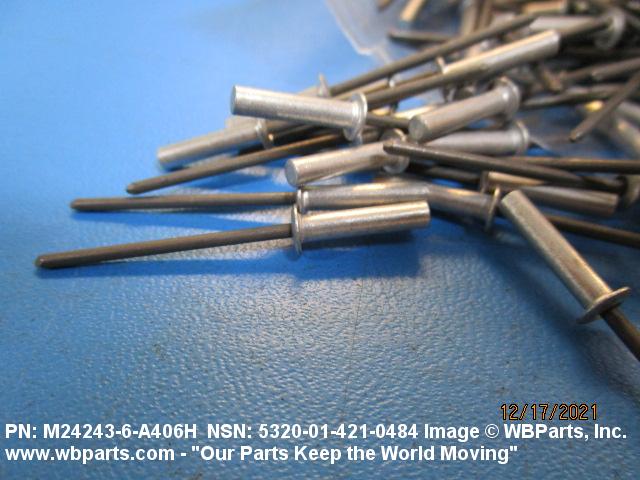

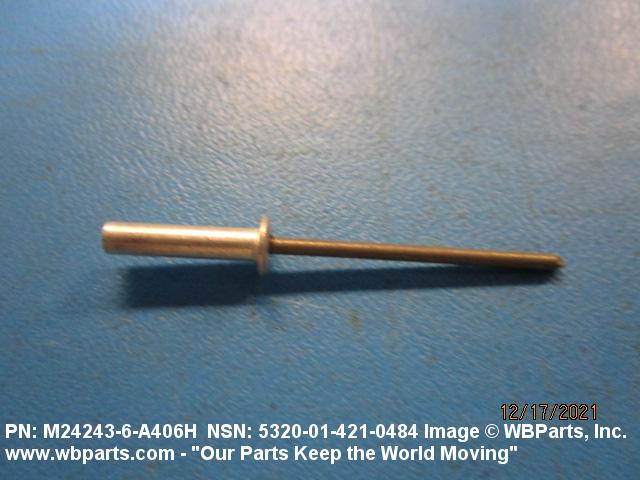

5320-01-421-0484 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/6-A406H, M242436A406H, MILR24243, MIL-R-24243, 5320-01-421-0484, 01-421-0484, 5320014210484, 014210484
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 OCT 1995 | 01-421-0484 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-421-0484
Demand History | NSN 5320-01-421-0484
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| M242436A406H | 2022-09-269 | 8 | US |
| 5320-01-421-0484 | 2021-11-312 | 200 | United States |
| M242436A406H | 2020-11-328 | 8 | US |
| M242436A406H | 2018-12-352 | 8 | United States |
| MILR24243 | 2016-11-322 | 5 | US |
| 5320-01-421-0484 | 2016-08-236 | 668 | DIBBS |
| 5320-01-421-0484 | 2014-12-341 | 2273 | DIBBS |
| 5320-01-421-0484 | 2013-03-73 | 20 | US |
| M242436A406H | 2012-05-152 | 100 | United States |
| 5320-01-421-0484 | 2012-05-152 | 100 | US |
| MILR24243 | 2011-06-175 | 1500 | US |
| MILR24243 | 2011-06-175 | 1875 | US |
| M242436A406H | 2011-01-05 | 8 | US |
| MILR24243 | 2010-08-242 | 100 | US |
| MILR24243 | 2010-03-88 | 100 | US |
| 5320-01-421-0484 | 2009-12-356 | 1706 | DIBBS |
| 5320-01-421-0484 | 2009-09-268 | 1706 | DIBBS |
| MILR24243 | 2009-01-26 | 2000 | US |
| 5320-01-421-0484 | 2009-01-20 | 1059 | DIBBS |
| 5320-01-421-0484 | 2008-12-345 | 600 | DIBBS |
| 5320-01-421-0484 | 2008-07-189 | 750 | DIBBS |
| 5320-01-421-0484 | 2008-05-128 | 300 | DIBBS |
| 5320-01-421-0484 | 2008-04-114 | 300 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-421-0484
Related Products | NSN 5320-01-421-0484
Technical Data | NSN 5320-01-421-0484
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY STEEL MANDREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY ASTM A545 ASSN STD SINGLE MATERIAL RESPONSE OR QQ-W-428 FED SPEC SINGLE MATERIAL RESPONSE MANDREL |
| SURFACE TREATMENT | ANODIZE BODY ZINC OR CADMIUM OR PHOSPHATE MANDREL |
| MINIMUM TENSILE STRENGTH | 335 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 255 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |

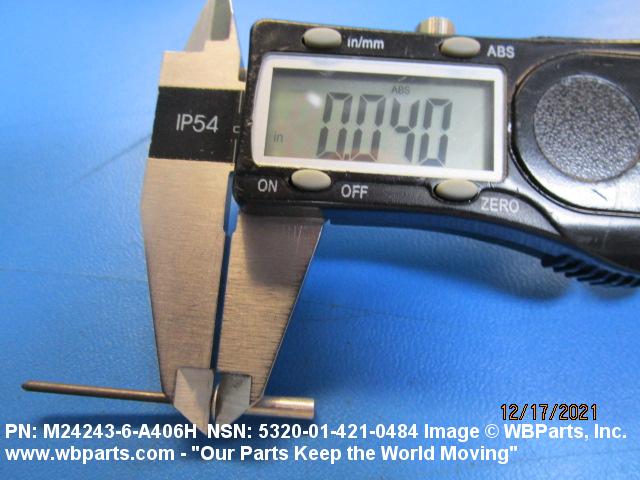

| HEAD HEIGHT | 0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |

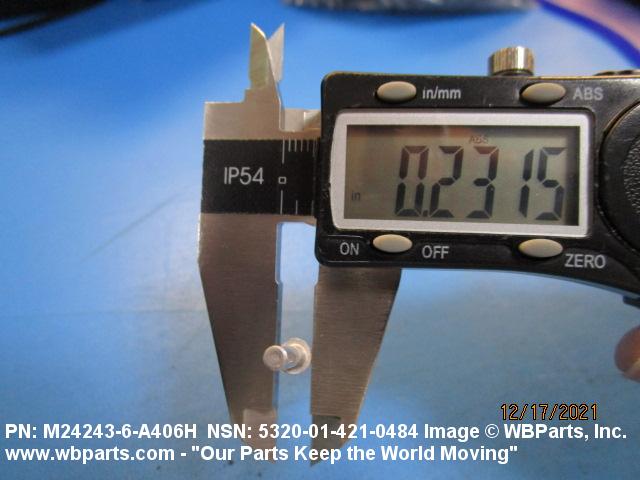

| HEAD MAJOR DIAMETER | 0.224 INCHES MINIMUM AND 0.252 INCHES MAXIMUM |
| SHANK STYLE | D36 CLOSED END HOLLOW-CORE |

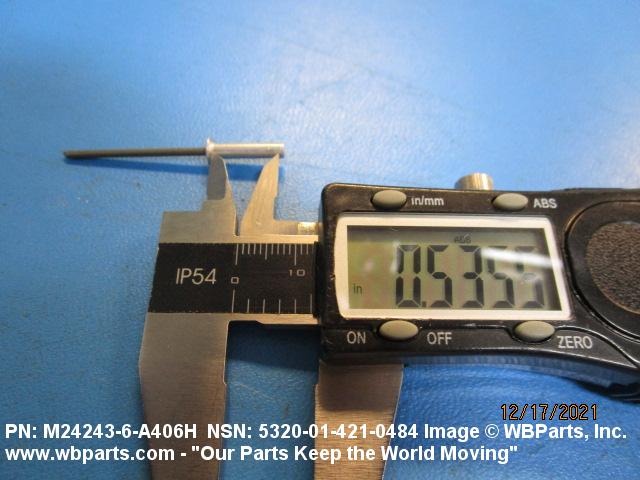

| FASTENER LENGTH | 0.534 INCHES MINIMUM AND 0.564 INCHES MAXIMUM |

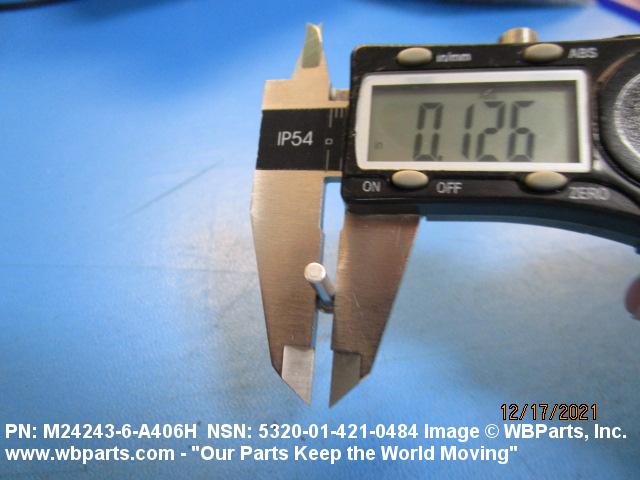

| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
