NSN 5320-01-469-1432 BL105856, BL1058-5-6, ST3M781086
Product Details | BLIND RIVET

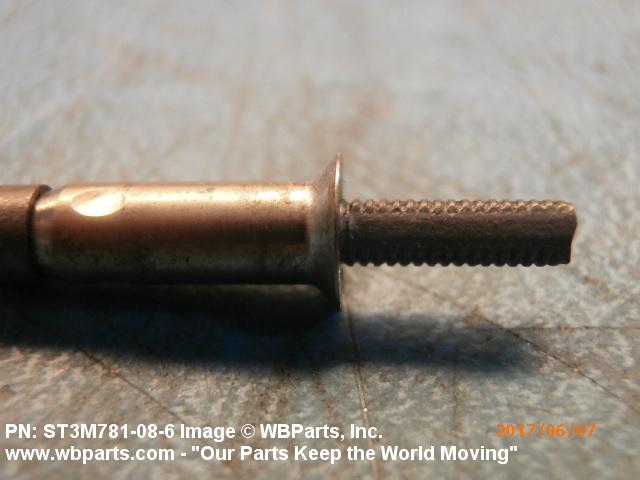

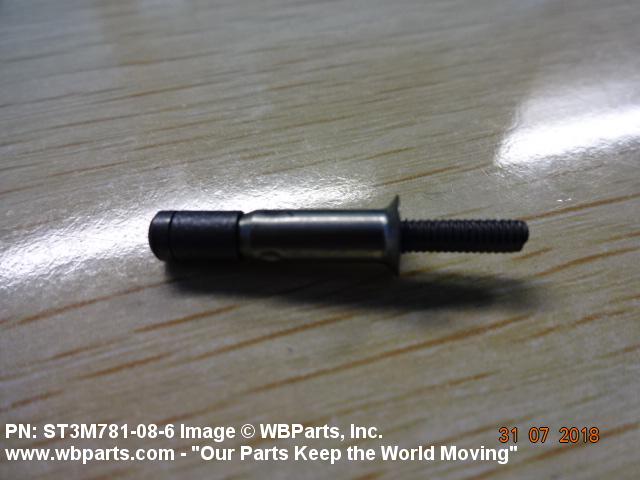

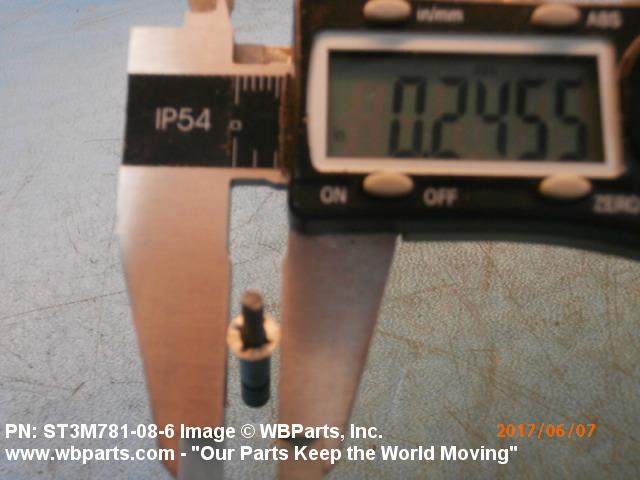

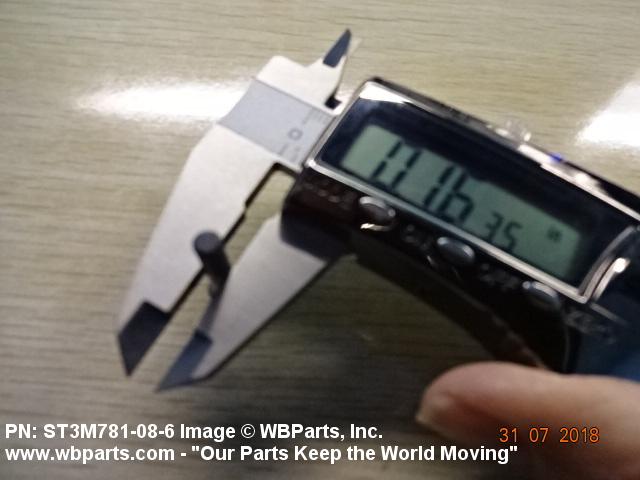

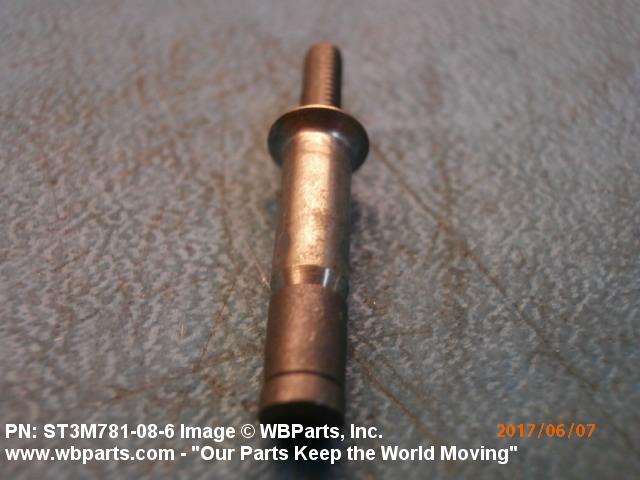

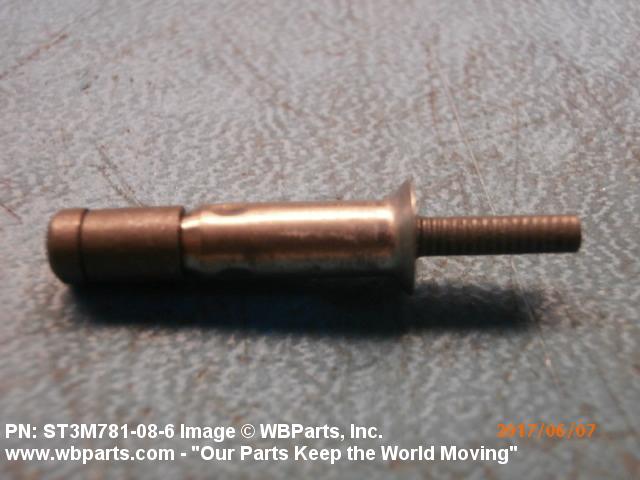

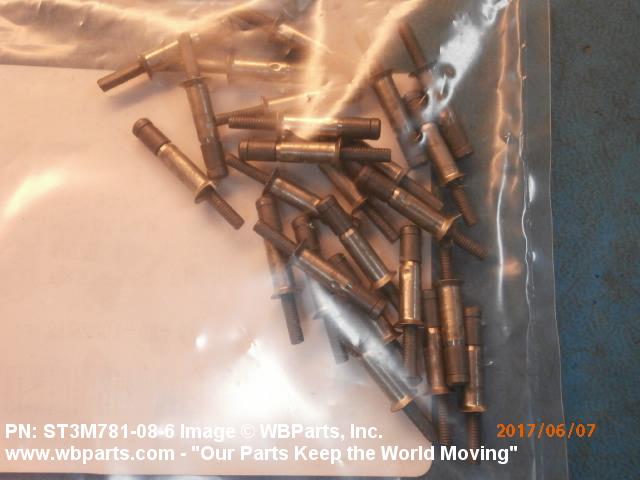

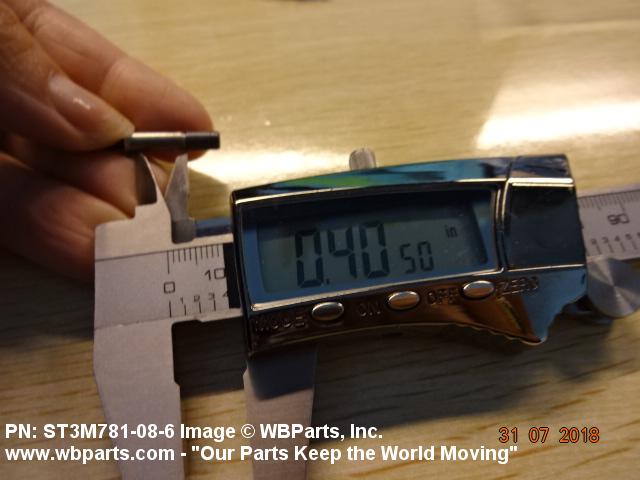

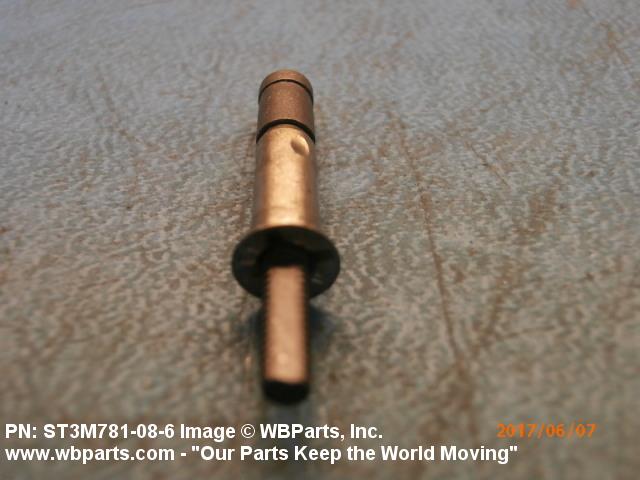

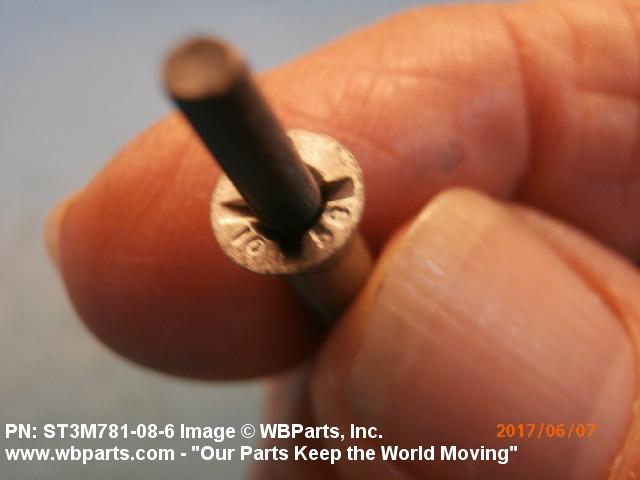

5320-01-469-1432 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: BL105856, BL1058-5-6, ST3M781086, ST3M781-08-6, PLT105856, PLT1058-5-6, 5320-01-469-1432, 01-469-1432, 5320014691432, 014691432
