NSN 5320-01-472-8010 NAS9301B503, NAS9301B-5-03, 01-472-8010
Product Details | BLIND RIVET

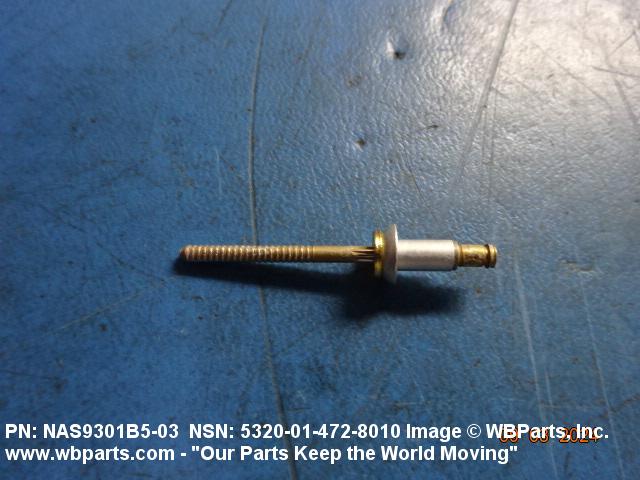

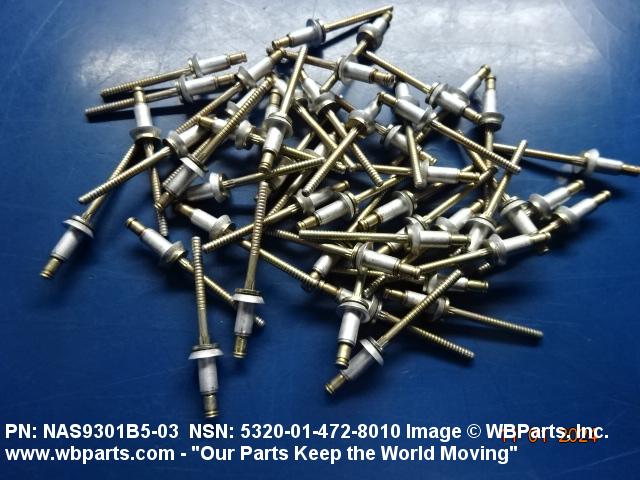

5320-01-472-8010 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS9301B503, NAS9301B-5-03, 5320-01-472-8010, 01-472-8010, 5320014728010, 014728010
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 16 MAR 2000 | 01-472-8010 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-472-8010
Demand History | NSN 5320-01-472-8010
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-472-8010 | 2024-07-194 | 6582 | United States |
| 5320-01-472-8010 | 2024-07-194 | 6582 | United States |
| 5320-01-472-8010 | 2023-03-61 | 960 | United States |
| NAS9301B503 | 2008-08-217 | 720 | United States |
| NAS9301B503 | 2008-07-212 | 720 | United States |
| NAS9301B503 | 2008-07-210 | 720 | United States |
Cross Reference | NSN 5320-01-472-8010
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS9301B-5-03 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-472-8010
Related Products | NSN 5320-01-472-8010
Technical Data | NSN 5320-01-472-8010
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OR STEEL COMP 304 LOCKING RING ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5739 ASSN STD 2ND MATERIAL RESPONSE LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE LOCKING RING CHROMATE SLEEVE CADMIUM OR PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416, TY II CL 2 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |

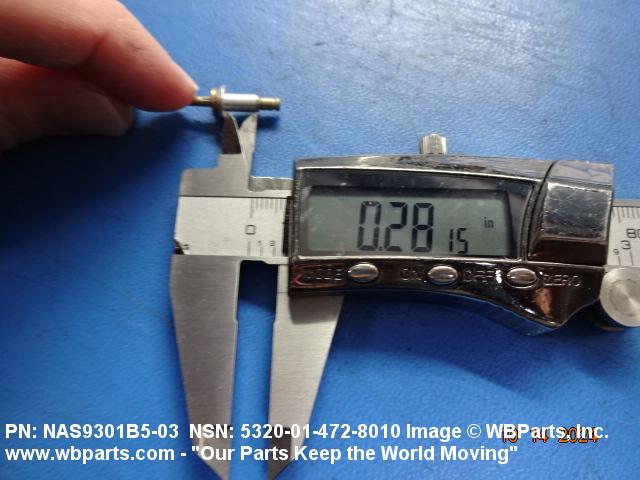

| FASTENER LENGTH | 0.263 INCHES MINIMUM AND 0.293 INCHES MAXIMUM |
| SHANK DIAMETER | 0.156 INCHES NOMINAL |
| GRIP LENGTH | 0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
Restrictions/Controls & Freight Information | NSN 5320-01-472-8010
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
