NSN 5320-01-477-1003 MS21141U0510, 01-477-1003, 014771003
Product Details | BLIND RIVET
5320-01-477-1003 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS21141U0510, 5320-01-477-1003, 01-477-1003, 5320014771003, 014771003
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 JUL 2000 | 01-477-1003 | 00864 ( RIVET, BLIND ) |

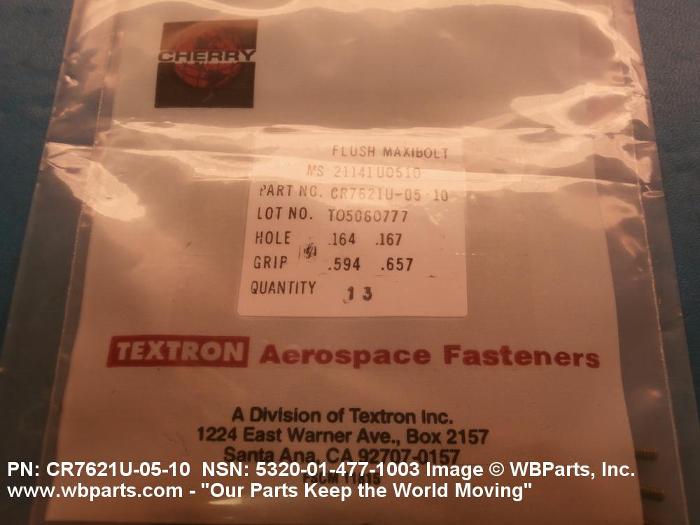

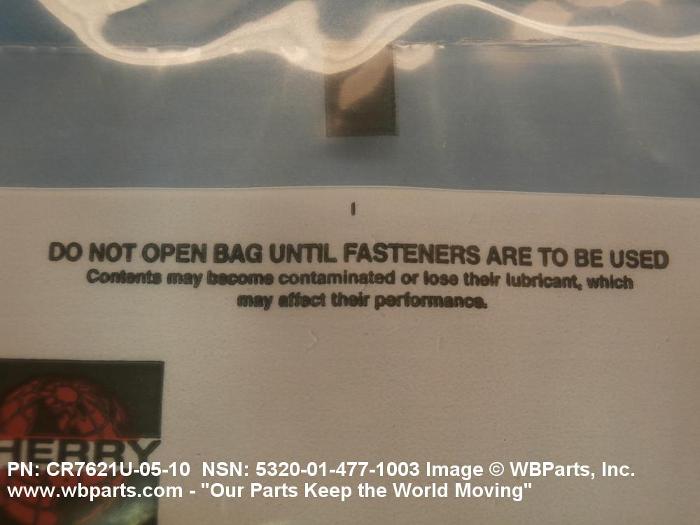

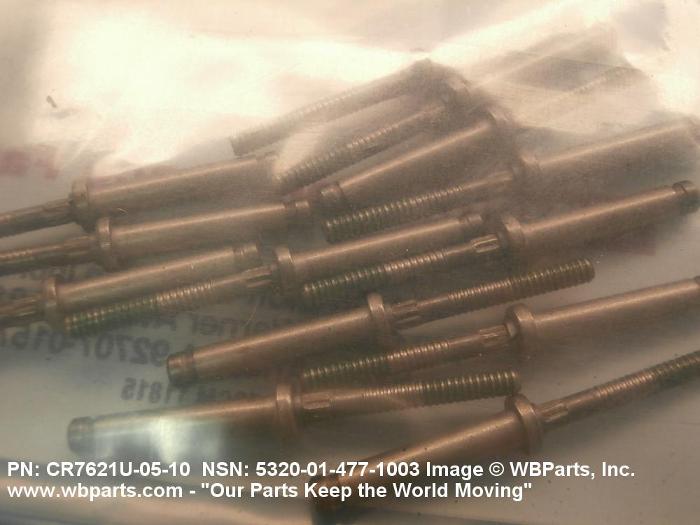

Drawings & Photos | NSN 5320-01-477-1003
Demand History | NSN 5320-01-477-1003
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-477-1003 | 2013-01-04 | 11 | United States |
Cross Reference | NSN 5320-01-477-1003
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MS21141U0510 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-477-1003
Technical Data | NSN 5320-01-477-1003
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| FASTENER LENGTH | 0.934 INCHES MAXIMUM |
| GRIP LENGTH | 0.780 INCHES NOMINAL |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
| SPECIAL FEATURES | POSITIVE MECHANICAL LOCK; PULL TYPE; PROTRUDING HEAD |
| TEST DATA DOCUMENT | 96906-21141 STANDARD |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21141U0510 |
Restrictions/Controls & Freight Information | NSN 5320-01-477-1003
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
