NSN 5320-01-491-0772 MS20605AD3W7, CR911637, CR9116-3-7
Product Details | BLIND RIVET
5320-01-491-0772 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS20605AD3W7, CR911637, CR9116-3-7 , 5320-01-491-0772, 01-491-0772, 5320014910772, 014910772
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 12 OCT 2001 | 01-491-0772 | 00864 ( RIVET, BLIND ) |

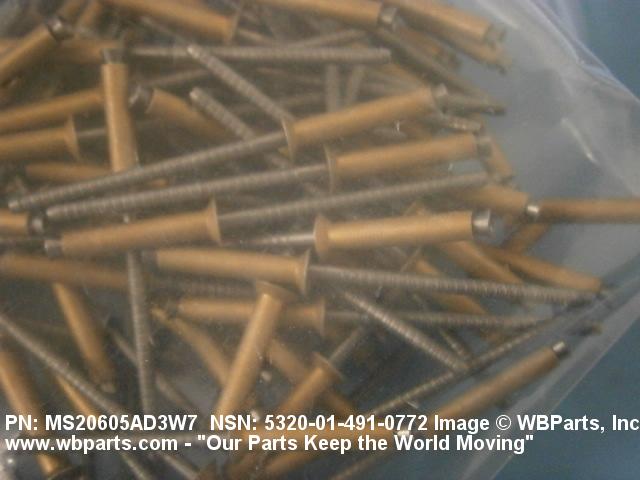

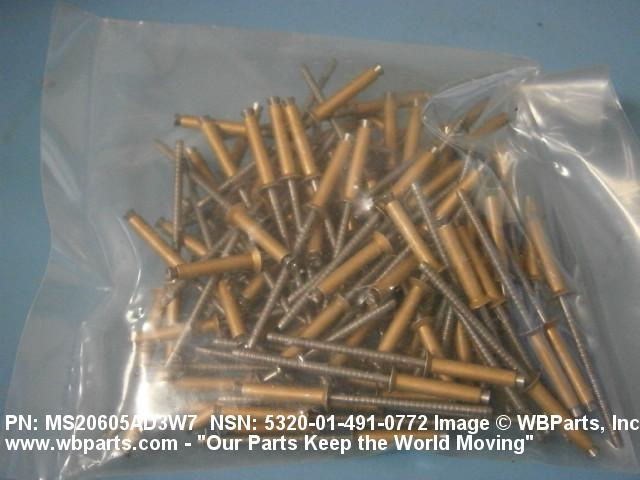

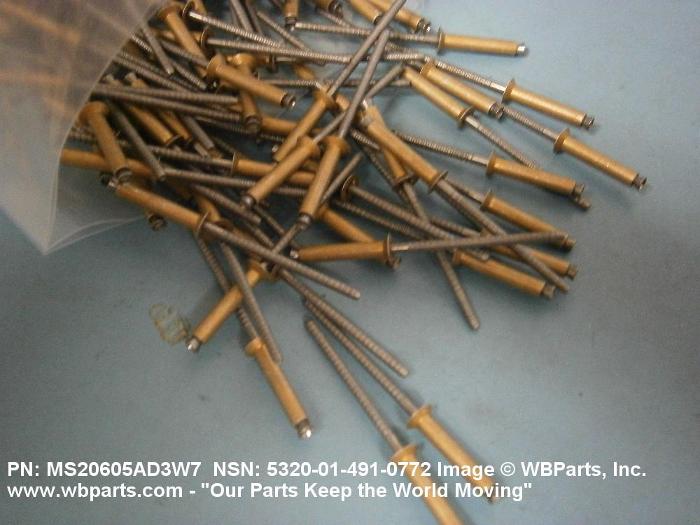

Drawings & Photos | NSN 5320-01-491-0772
Demand History | NSN 5320-01-491-0772
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20605AD3W7 | 2025-08-223 | 320 | us |
| MS20605AD3W7 | 2025-08-223 | 520 | us |
| MS20605AD3W7 | 2025-08-223 | 800 | us |
| 5320-01-491-0772 | 2024-08-235 | 300 | US |
| 5320-01-491-0772 | 2023-07-191 | 599 | DIBBS |
| 5320-01-491-0772 | 2016-04-101 | 1197 | DIBBS |
| 5320-01-491-0772 | 2014-11-306 | 142 | DIBBS |
| 5320-01-491-0772 | 2014-09-253 | 299 | DIBBS |
| MS20605AD3W7 | 2012-08-226 | 100 | Canada |
| MS20605AD3W7 | 2012-08-226 | 150 | Canada |
| MS20605AD3W7 | 2012-08-226 | 200 | Canada |
| MS20605AD3W7 | 2012-04-115 | 200 | Canada |
| MS20605AD3W7 | 2012-04-93 | 100 | Canada |
| MS20605AD3W7 | 2012-04-93 | 150 | Canada |
| MS20605AD3W7 | 2012-02-47 | 100 | Canada |
| MS20605AD3W7 | 2012-02-47 | 150 | Canada |
| 5320-01-491-0772 | 2011-08-220 | 0 | DIBBS |
| 5320-01-491-0772 | 2009-04-106 | 283 | DIBBS |
| 5320-01-491-0772 | 2009-04-92 | 893 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-491-0772
Related Products | NSN 5320-01-491-0772
Technical Data | NSN 5320-01-491-0772
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2117 SLEEVE STEEL STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE ASTM A510 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.179 INCHES NOMINAL |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D19 PULL THROUGH HOLLOW SHANK |
| SHANK DIAMETER | 0.094 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| GRIP LENGTH | 0.376 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NASM20605 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
| III END ITEM IDENTIFICATION | AIRCRAFT, ORION P-3 |
Restrictions/Controls & Freight Information | NSN 5320-01-491-0772
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-491-0772
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
