NSN 5320-01-497-1933 PLT107063, PLT1070-6-3, 01-497-1933

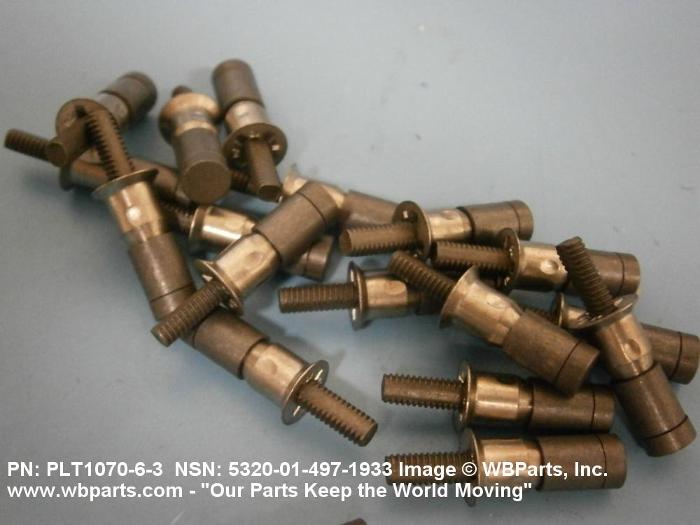

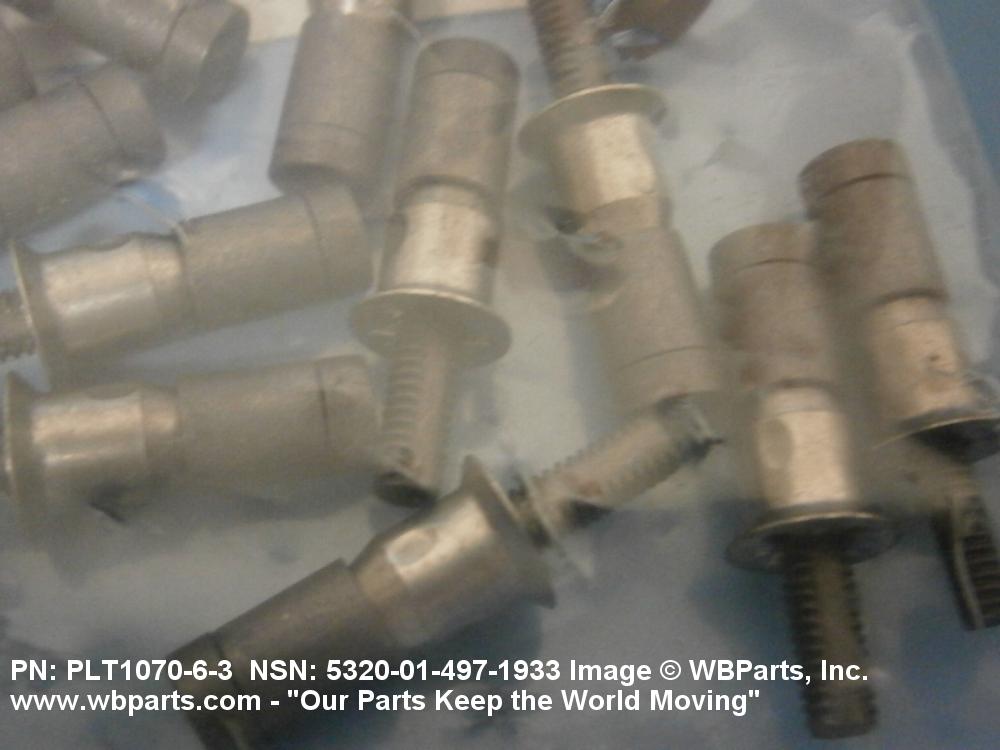

Product Details | BLIND RIVET
5320-01-497-1933 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: PLT107063, PLT1070-6-3, 5320-01-497-1933, 01-497-1933, 5320014971933, 014971933
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 13 MAY 2002 | 01-497-1933 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-497-1933
Demand History | NSN 5320-01-497-1933
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PLT107063 | 2011-10-284 | 40 | United States |
| PLT107063 | 2009-10-286 | 100 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-497-1933
Related Products | NSN 5320-01-497-1933
Technical Data | NSN 5320-01-497-1933
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY NUT STEEL CORROSION RESISTING SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | SAE-AMS4928 ASSN STD 1ST MATERIAL RESPONSE OR SAE-AMS4967 ASSN STD 2ND MATERIAL RESPONSE NUT |
| SURFACE TREATMENT | ALUMINUM NUT PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | NAS4006 NATIONAL SPEC ALL TREATMENT RESPONSES NUT SAE-AMS-QQ-P-35 ASSN STD ALL TREATMENT RESPONSES SLEEVE |
| MINIMUM TENSILE STRENGTH | 1250 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 4600 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.311 INCHES MINIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D44 BLIND RIVET, NUT AND BOLT |
| SHANK DIAMETER | 0.228 INCHES MINIMUM AND 0.230 INCHES MAXIMUM |
| GRIP LENGTH | 0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| FEATURES PROVIDED | SELF-LOCKING |
| III END ITEM IDENTIFICATION | CBR+ECP-904; F/A-18 HORNET |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | VISU-LOK, FASTENER, BLIND INTERNALLY THREADED, EXTERNAL SLEEVE TITANIUM 100 DEGREE REDUCED FLUSH HEAD, SELF LOCKING 1/32 INCH OVERSIZE |
Restrictions/Controls & Freight Information | NSN 5320-01-497-1933
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 096320 | RIVETS I/S NICKEL PLATED BUFFED |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
