NSN 5320-01-516-7866 NAS16696L20, NAS1669-6L20, 01-516-7866
Product Details | BLIND RIVET
5320-01-516-7866 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS16696L20, NAS1669-6L20, 5320-01-516-7866, 01-516-7866, 5320015167866, 015167866
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 JAN 2004 | 01-516-7866 | 00864 ( RIVET, BLIND ) |

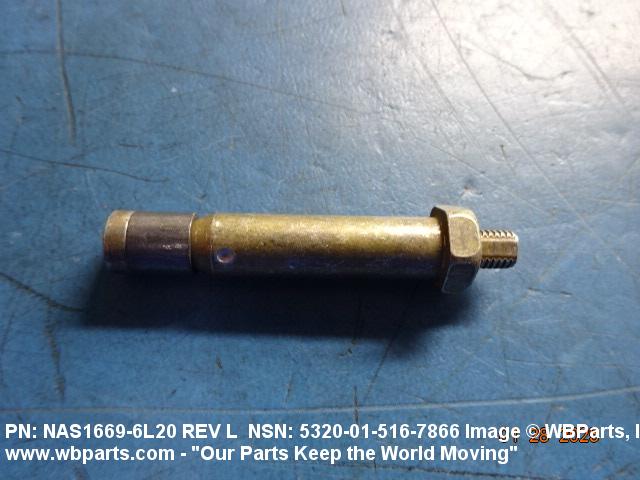

Drawings & Photos | NSN 5320-01-516-7866
Demand History | NSN 5320-01-516-7866
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-516-7866 | 2025-01-06 | 48 | United States |
| 5320-01-516-7866 | 2024-06-180 | 24 | United States |
| NAS16696L20 | 2023-02-52 | 264 | US |
| NAS16696L20 | 2021-12-355 | 6 | United States |
| 5320-01-516-7866 | 2021-06-168 | 168 | US |
| NAS16696L20 | 2021-04-111 | 168 | US |
| NAS16696L20 | 2021-04-110 | 168 | US |
| NAS16696L20 | 2018-11-320 | 64 | United States |
| 5320-01-516-7866 | 2018-03-80 | 128 | United States |
| 5320-01-516-7866 | 2018-01-29 | 8 | United States |
| 5320-01-516-7866 | 2017-06-164 | 2 | US |
| NAS1669-6L20 | 2016-11-334 | 32 | United States |
| NAS16696L20 | 2007-08-220 | 250 | us |
Cross Reference | NSN 5320-01-516-7866
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1669-6L20 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-516-7866
Technical Data | NSN 5320-01-516-7866
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 NUT STEEL COMP 304 OR STEEL COMP 303SE SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR AMS6322 ASSN STD 2ND MATERIAL RESPONSE NUT QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR AMS5639 ASSN STD 1ST MATERIAL RESPONSE OR AMS5641 ASSN STD 2ND MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM NUT PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | C17 HEXAGON |
| HEAD HEIGHT | 0.190 INCHES MAXIMUM |

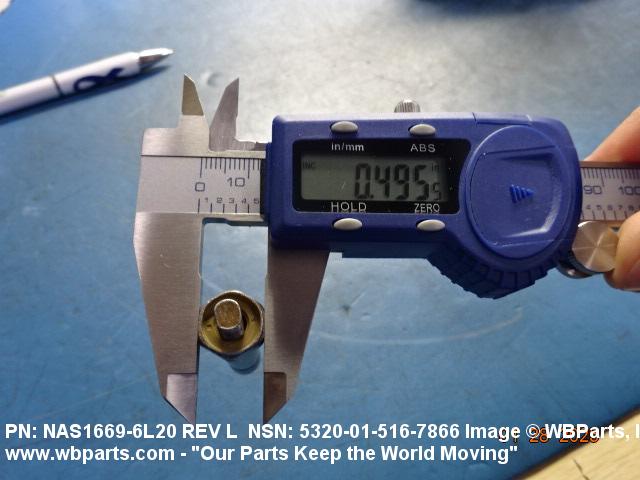

| WIDTH ACROSS FLATS | 0.491 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| SHANK DIAMETER | 0.372 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |

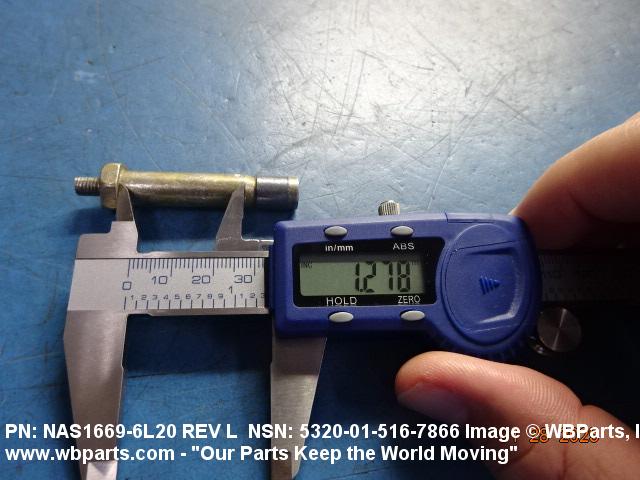

| GRIP LENGTH | 1.220 INCHES MINIMUM AND 1.281 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1669 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-516-7866
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
