NSN 5320-01-529-4409 NAS9305E606, NAS9305E-6-06, 01-529-4409
Product Details | BLIND RIVET
5320-01-529-4409 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS9305E606, NAS9305E-6-06, 5320-01-529-4409, 01-529-4409, 5320015294409, 015294409
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 18 APR 2005 | 01-529-4409 | 00864 ( RIVET, BLIND ) |

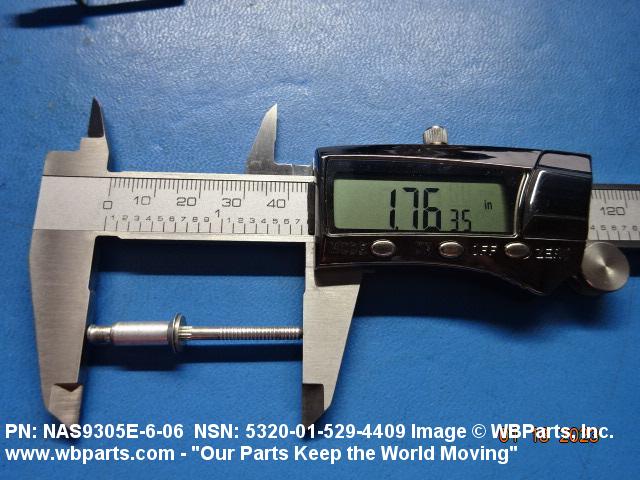

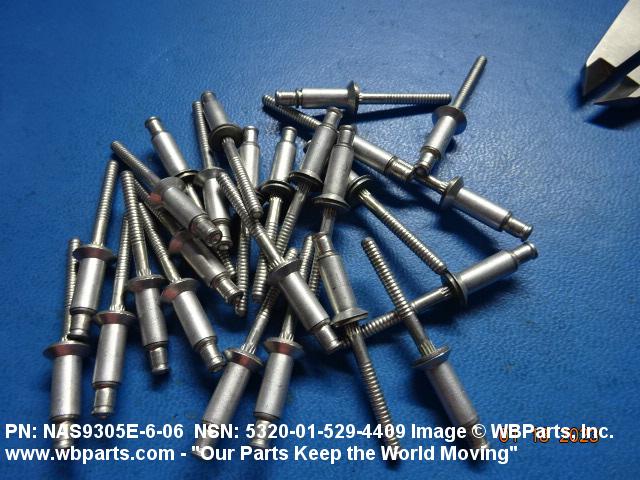

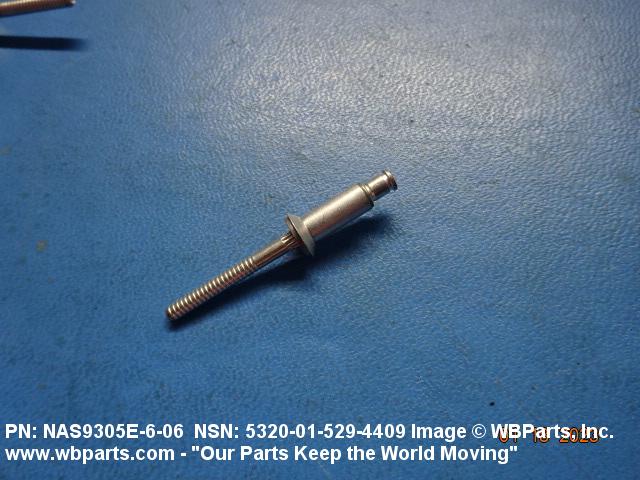

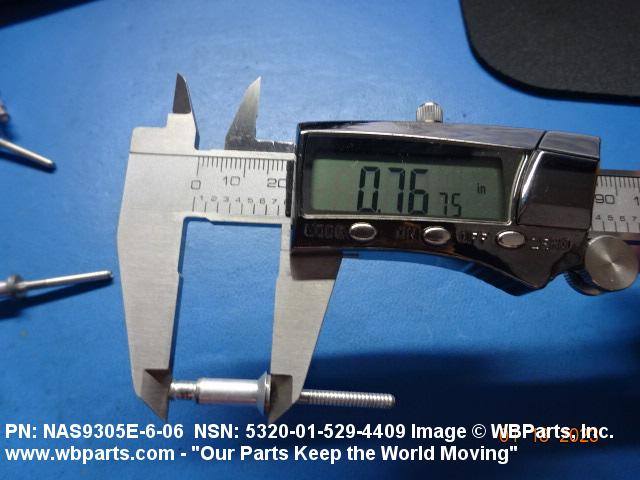

Drawings & Photos | NSN 5320-01-529-4409
Demand History | NSN 5320-01-529-4409
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-529-4409 | 2022-12-347 | 7 | us |
| 5320-01-529-4409 | 2015-06-160 | 6 | DIBBS |
| 5320-01-529-4409 | 2015-05-139 | 6 | DIBBS |
| 5320-01-529-4409 | 2015-04-104 | 400 | DIBBS |
| 5320-01-529-4409 | 2008-01-17 | 400 | DIBBS |
Cross Reference | NSN 5320-01-529-4409
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS9305E-6-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-529-4409
Related Products | NSN 5320-01-529-4409
Technical Data | NSN 5320-01-529-4409
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OR STEEL COMP 302 OR STEEL COMP 304 OR STEEL COMP 305 OR STEEL COMP 316 OR STEEL COMP 321 OR STEEL COMP 347 OR STEEL COMP 384 OR STEEL COMP 385 GRIP IRON ALLOY 660 OR STEEL COMP 304 LOCKING RING ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 632 OR IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS-5737 ASSN STD SINGLE MATERIAL RESPONSE OR ASTM-A493 ASSN STD SINGLE MATERIAL RESPONSE GRIP AMS-5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS-5639 ASSN STD SINGLE MATERIAL RESPONSE LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS-5657 ASSN STD SINGLE MATERIAL RESPONSE OR AMS-5737 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE GRIP PASSIVATE LOCKING RING CHROMATE SLEEVE CADMIUM OR PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE GRIP QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416 TYPE I0.QQ-P-416 TYPE I0CL 2 FED SPEC SINGLE TREATMENT RESPONSE OR QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

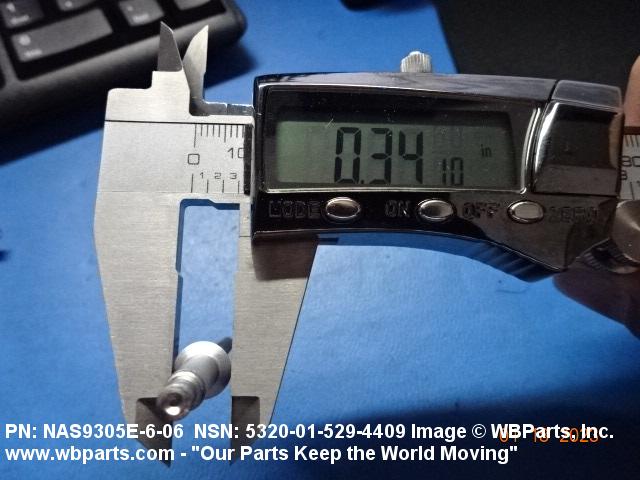

| HEAD MAJOR DIAMETER | 0.349 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |

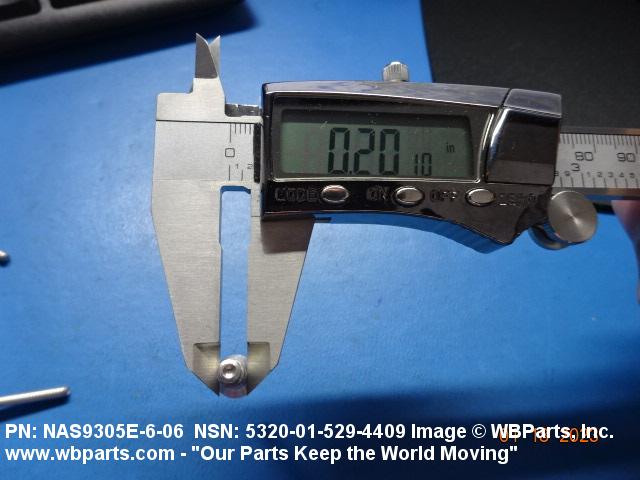

| SHANK DIAMETER | 0.200 INCHES MINIMUM AND 0.204 INCHES MAXIMUM |
| GRIP LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | F/A-18 HORNET |
Restrictions/Controls & Freight Information | NSN 5320-01-529-4409
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-529-4409
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
