NSN 5320-01-535-3942 NAS9305B504, NAS9305B-5-04, 01-535-3942
Product Details | BLIND RIVET
5320-01-535-3942 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS9305B504, NAS9305B-5-04, 5320-01-535-3942, 01-535-3942, 5320015353942, 015353942
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 NOV 2005 | 01-535-3942 | 00864 ( RIVET, BLIND ) |

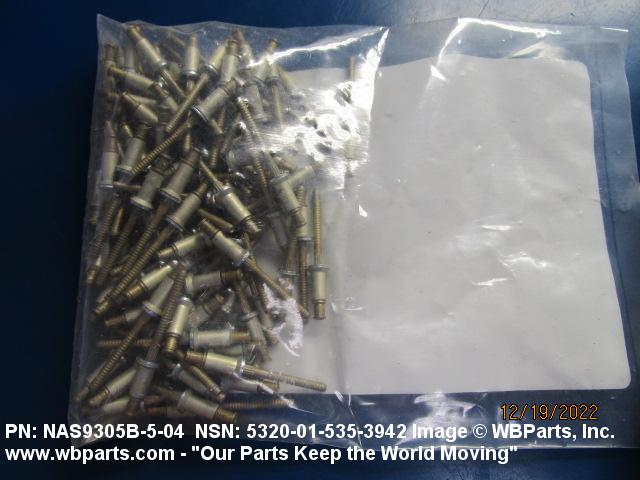

Drawings & Photos | NSN 5320-01-535-3942
Demand History | NSN 5320-01-535-3942
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-535-3942 | 2023-02-51 | 120 | United States |
| 5320-01-535-3942 | 2023-02-46 | 120 | United States |
| NAS9305B504 | 2022-12-341 | 200 | United States |
| NAS9305B504 | 2022-11-321 | 200 | United States |
Cross Reference | NSN 5320-01-535-3942
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS9305B-5-04 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-535-3942
Technical Data | NSN 5320-01-535-3942
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1038 GRIP IRON ALLOY 660 OR STEEL COMP 304 LOCKING RING STEEL COMP 8740 MANDREL ALUMINUM ALLOY 5056 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5731 ASSN STD SINGLE MATERIAL RESPONSE OR AMS 5639 ASSN STD SINGLE MATERIAL RESPONSE LOCKING RING AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE MANDREL QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM GRIP PASSIVATE LOCKING RING CADMIUM MANDREL CHROMATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE GRIP QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE MANDREL MIL-C-5541, CLASS 1A MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.284 INCHES MINIMUM AND 0.292 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| SHANK DIAMETER | 0.172 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| GRIP LENGTH | 0.600 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-535-3942
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
