NSN 5320-01-550-1068 CR3243404, CR3243-4-04, 01-550-1068
Product Details | BLIND RIVET
5320-01-550-1068 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR3243404, CR3243-4-04, 5320-01-550-1068, 01-550-1068, 5320015501068, 015501068
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 APR 2007 | 01-550-1068 | 00864 ( RIVET, BLIND ) |

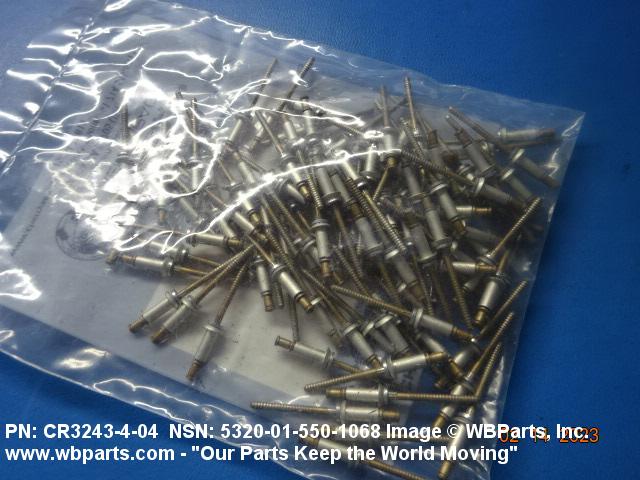

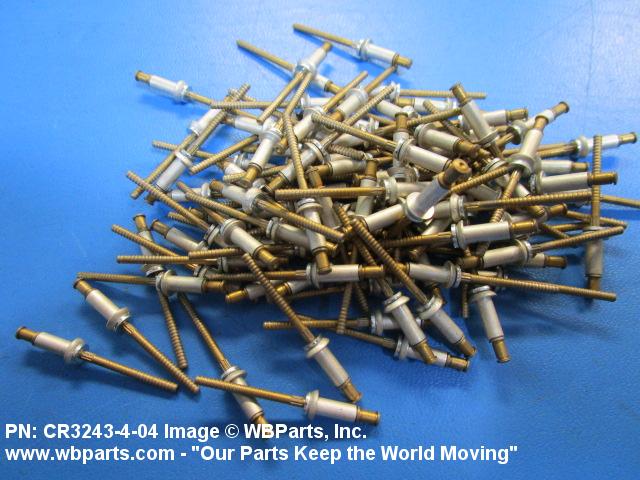

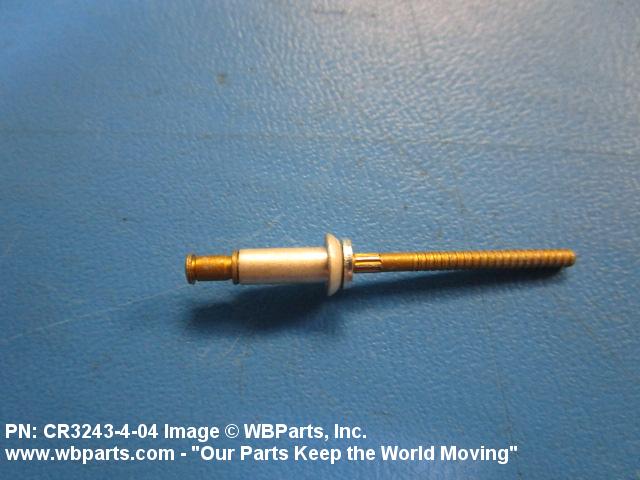

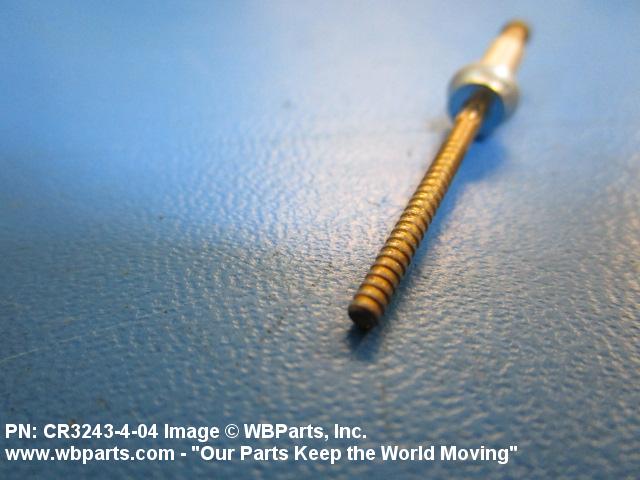

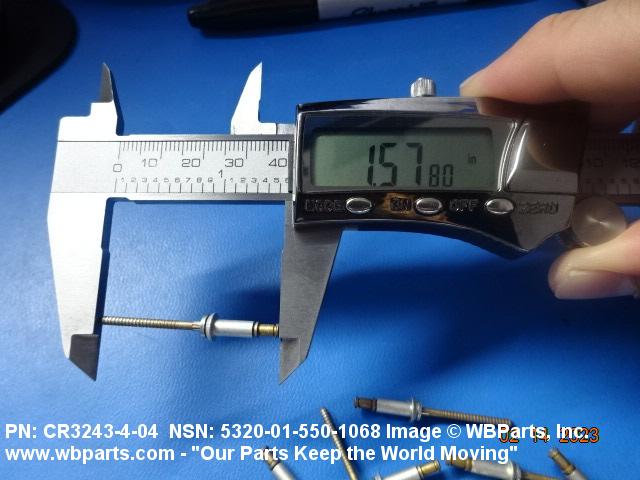

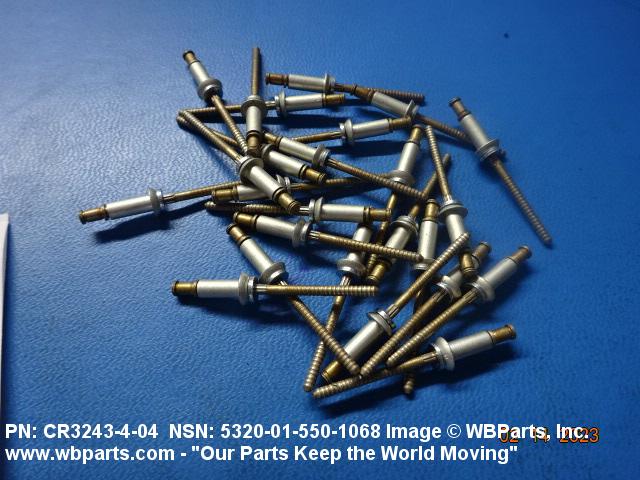

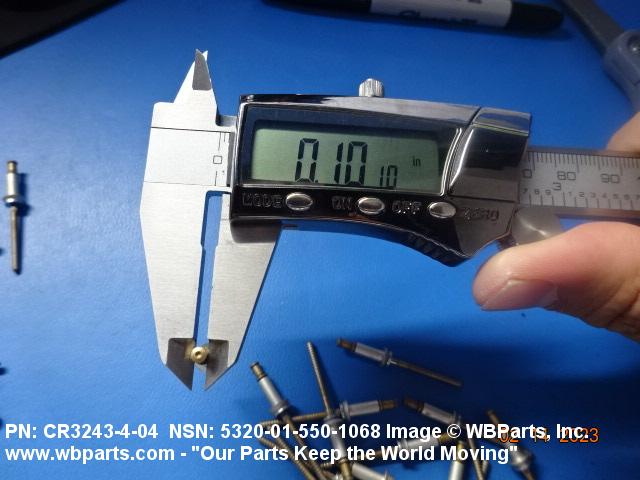

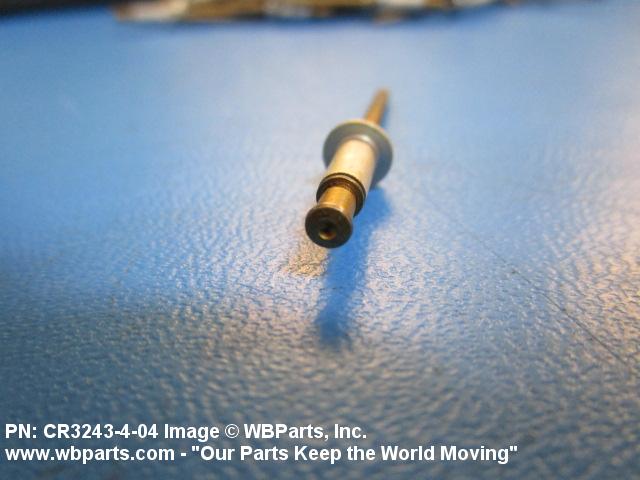

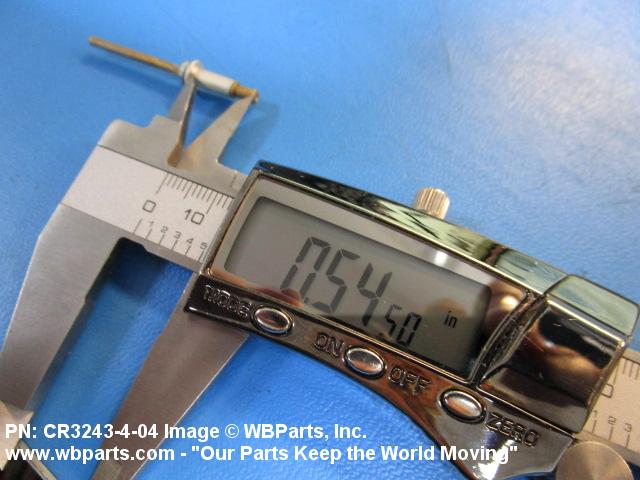

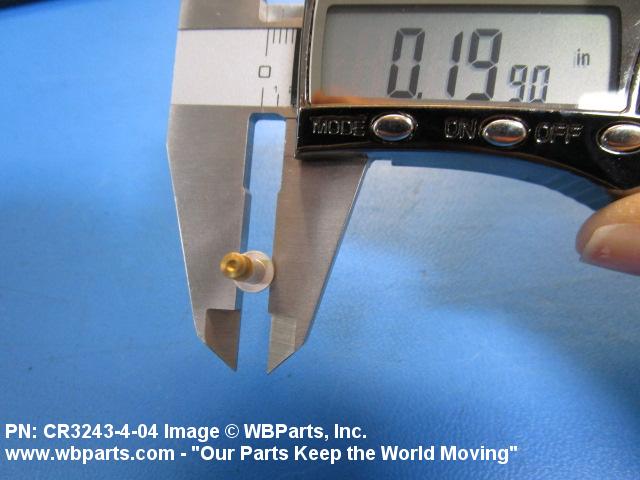

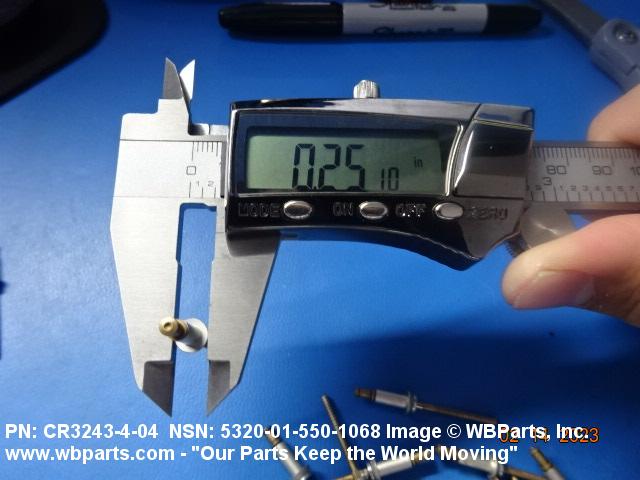

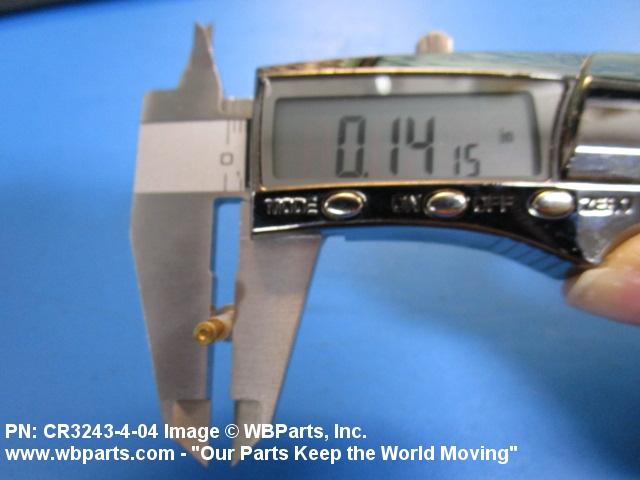

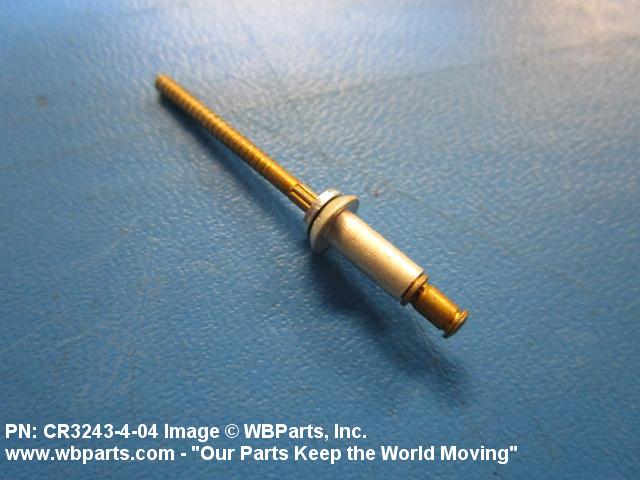

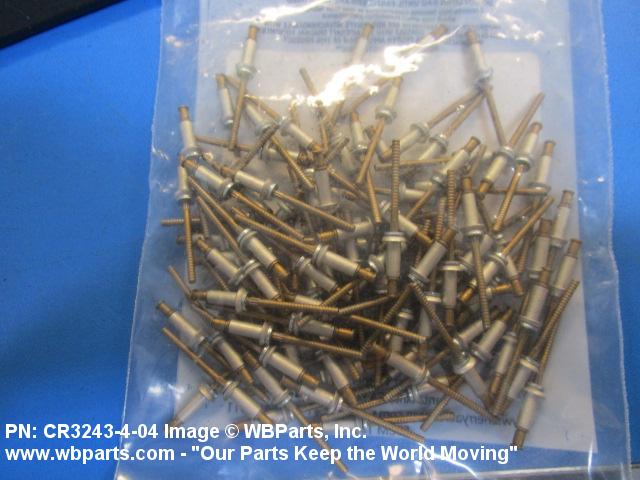

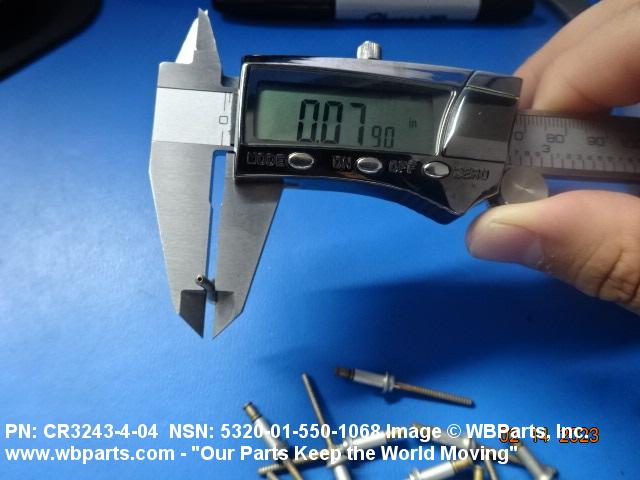

Drawings & Photos | NSN 5320-01-550-1068
Demand History | NSN 5320-01-550-1068
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR3243-4-04 | 2025-08-217 | 1484 | DIBBS |
| CR3243404 | 2025-01-10 | 25 | US |
| CR3243404 | 2023-09-249 | 20 | TR |
| CR3243404 | 2023-09-249 | 20 | US |
| CR3243-4-04 | 2021-06-168 | 1429 | DIBBS |
| CR3243404 | 2019-05-144 | 1 | United States |
| CR3243404 | 2019-05-144 | 1 | United States |
| CR3243404 | 2017-09-269 | 100 | us |
| CR3243404 | 2017-05-122 | 2 | United States |
| CR3243404 | 2017-04-96 | 60 | US |
| CR3243404 | 2015-06-162 | 1000 | IL |
| CR3243404 | 2014-07-196 | 1 | AR |
| CR3243-4-04 | 2013-05-134 | 50 | CZ |
| CR3243404 | 2012-12-338 | 500 | CO |
| 5320-01-550-1068 | 2008-06-177 | 1429 | DIBBS |
Cross Reference | NSN 5320-01-550-1068
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR3243-4-04 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-550-1068
Related Products | NSN 5320-01-550-1068
Technical Data | NSN 5320-01-550-1068
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING COLLAR ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| SURFACE TREATMENT | PASSIVATE COLLAR CADMIUM STEM |
| HEAD STYLE | C39 COUNTERSUNK W/PROTRUDING STUD |
| HEAD HEIGHT | 0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM |

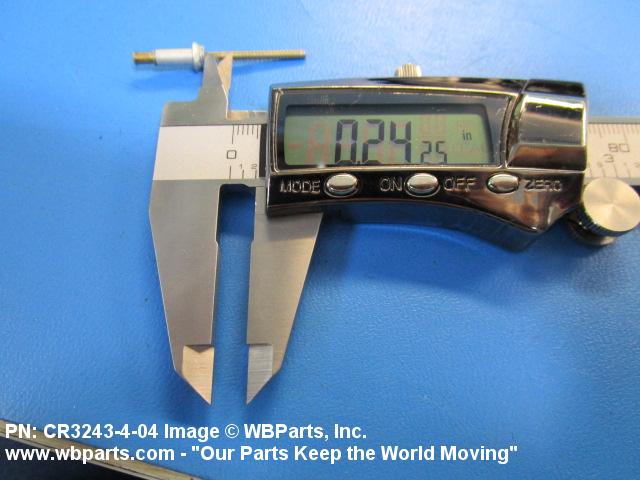

| HEAD MAJOR DIAMETER | 0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| SHANK STYLE | D20 DRIVE PIN |
| FASTENER LENGTH | 0.242 INCHES MINIMUM AND 0.314 INCHES MAXIMUM |
| SHANK DIAMETER | 0.125 INCHES NOMINAL |
| GRIP LENGTH | 0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-550-1068
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | 20 | Committee for the Purchase from the Blind and Severely Handicapped Arlington, VA 22201 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-550-1068
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
