NSN 5320-01-578-1815 FCBF21125350, FCBF2112-5-350 , 3M1067D08350
Product Details | BLIND RIVET
5320-01-578-1815 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: FCBF21125350, FCBF2112-5-350 , 3M1067D08350, 3M1067D08-350, 5320-01-578-1815, 01-578-1815, 5320015781815, 015781815
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 SEP 2009 | 01-578-1815 | 00864 ( RIVET, BLIND ) |

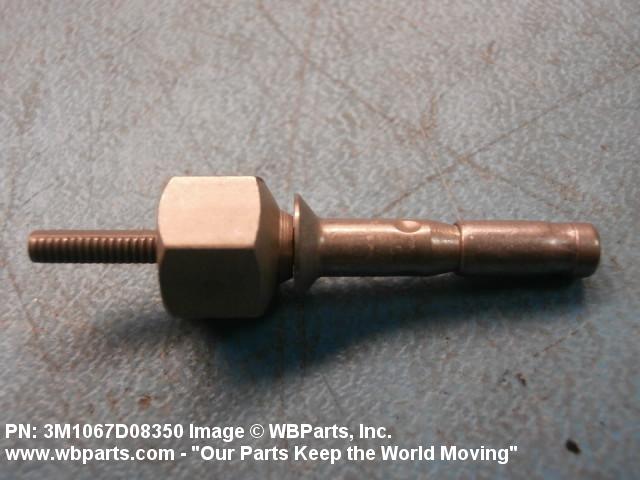

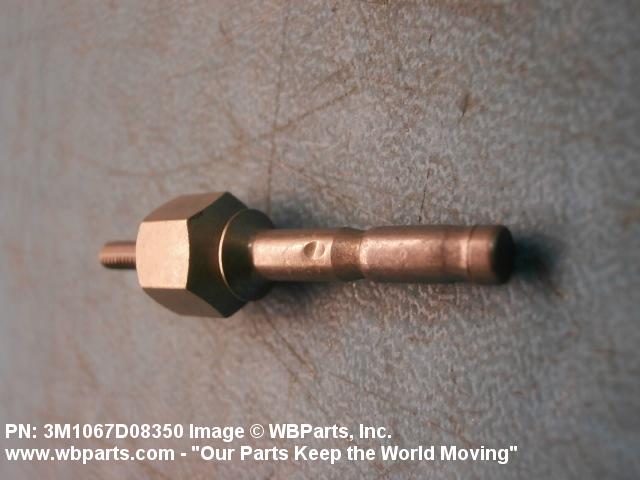

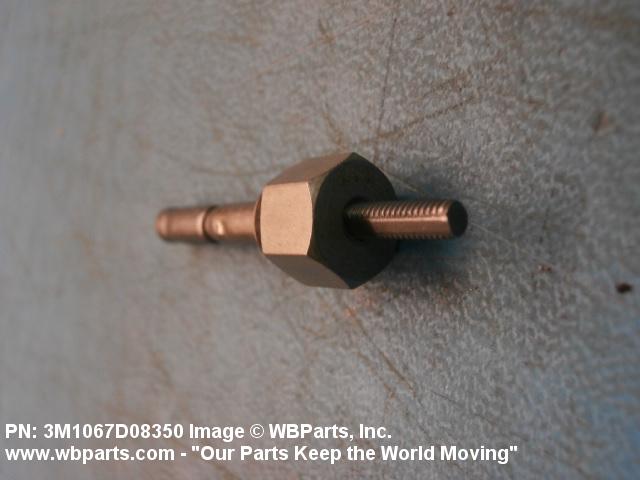

Drawings & Photos | NSN 5320-01-578-1815
Demand History | NSN 5320-01-578-1815
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 3M1067D08350 | 2016-10-278 | 200 | Australia |
| 5320-01-578-1815 | 2014-03-78 | 3333 | DIBBS |
| 5320-01-578-1815 | 2014-02-44 | 3333 | DIBBS |
| 5320-01-578-1815 | 2013-11-316 | 500 | DIBBS |
| 5320-01-578-1815 | 2013-10-302 | 3337 | DIBBS |
| 5320-01-578-1815 | 2013-08-227 | 3337 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-578-1815
Technical Data | NSN 5320-01-578-1815
| Characteristic | Specifications |
|---|---|
| HEAD STYLE | FLUSH (FLAT) COUNTERSUNK (INCLUDED ANGLE - LESS THAN 135 DEG W OR W/O CHAMFER) |
| HEAD MAJOR DIAMETER | 0.325 INCHES MINIMUM AND 0.332 INCHES MAXIMUM |
| SURFACE TREATMENT | PASSIVATE NUT |

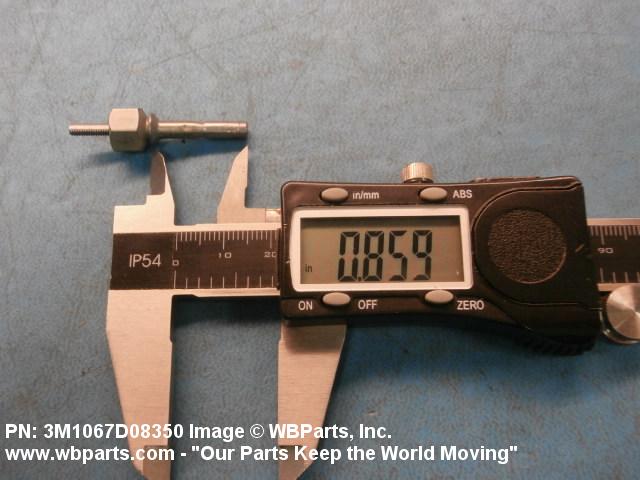

| FASTENER LENGTH | 0.860 INCHES MAXIMUM |
| MATERIAL | STEEL COMP 304 SLEEVE |

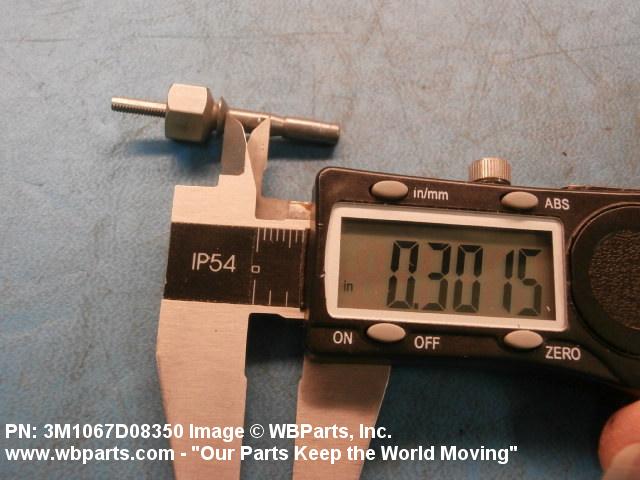

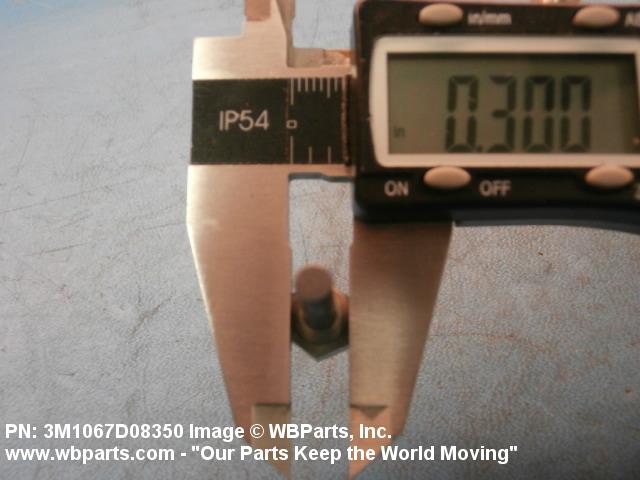

| GRIP LENGTH | 0.300 INCHES MINIMUM AND 0.350 INCHES MAXIMUM |
| MATERIAL | TITANIUM ALLOY UNS R56400 NUT |

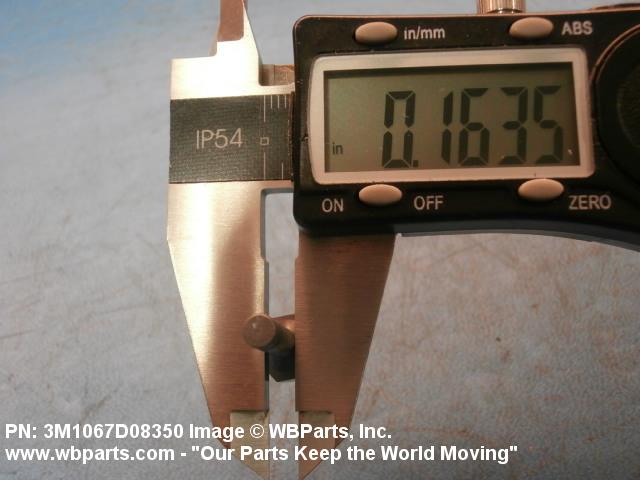

| SHANK DIAMETER | 0.1625 INCHES MINIMUM AND 0.1645 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5320-01-578-1815
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZA | Australia ZB ZC |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-578-1815
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
