Product Details | METALLIC EYELET
5325-00-018-8644 A one-piece metal item, usually tubular, flanged at one end, the other end open. It is used primarily for lining and reinforcing the edges of holes. The unflanged end is designed to be inserted through a hole and crimped to form a mating flange. Excludes GROMMET, METALLIC and eyelets which are components of pushbutton, turnbutton and turnlock type fastners.
Part Alternates: C5632042, C56320-42, SE-84 BRASS, SE84BRASS, SE84NP, EY2504, EY250-4, 188644, 410211-256, 609062, 609-062, 5325-00-018-8644, 00-018-8644, 5325000188644, 000188644, 410211256
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-018-8644 | 05457 ( EYELET, METALLIC ) |

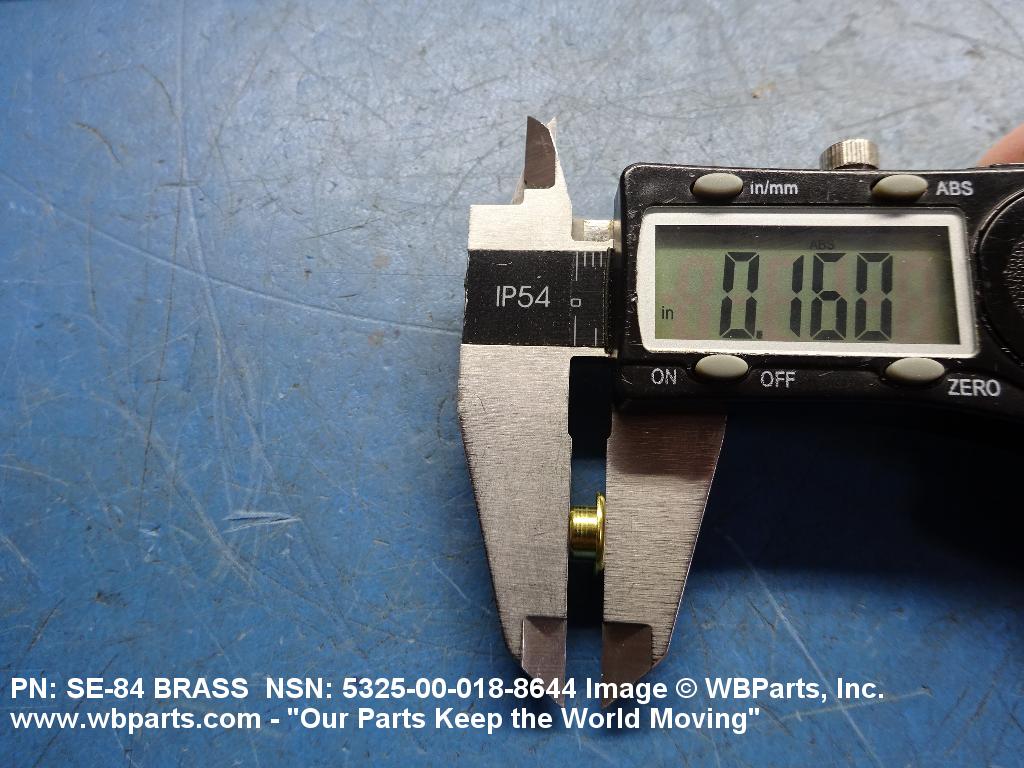

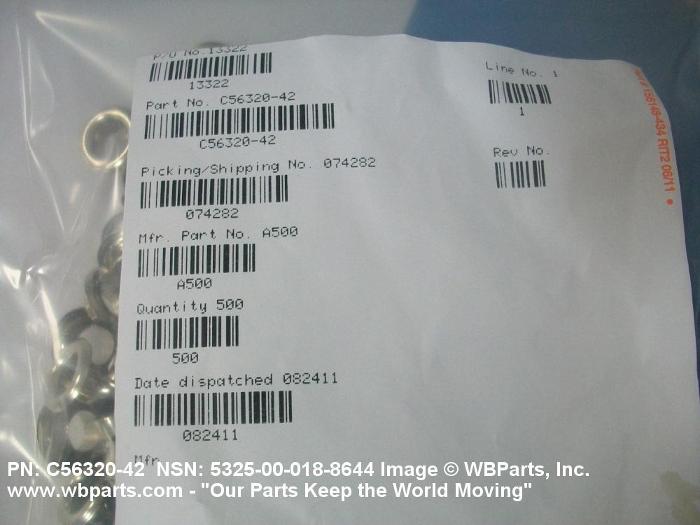

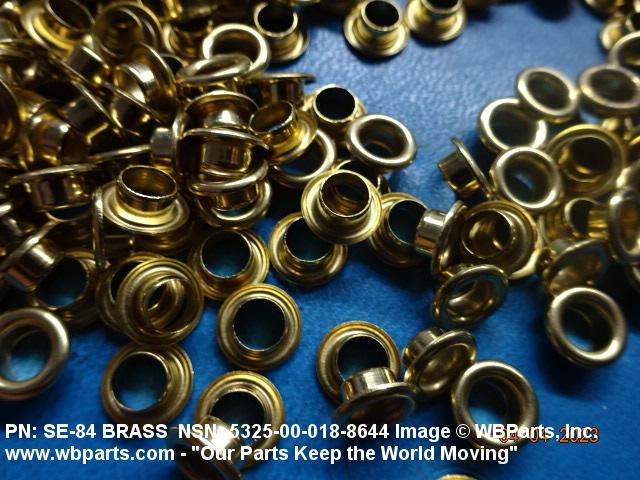

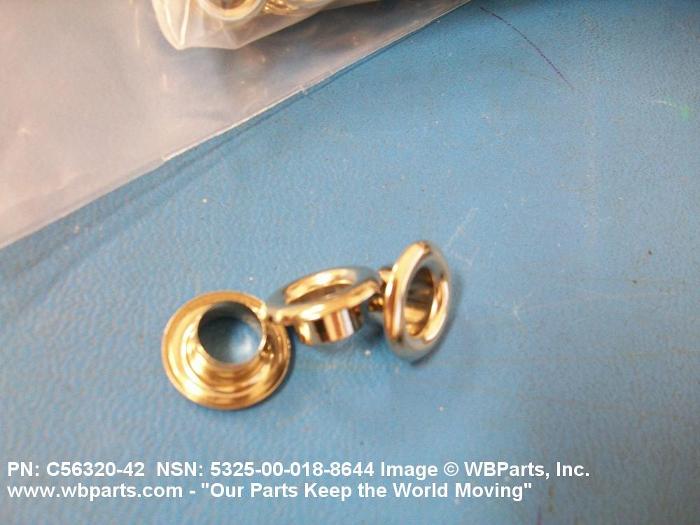

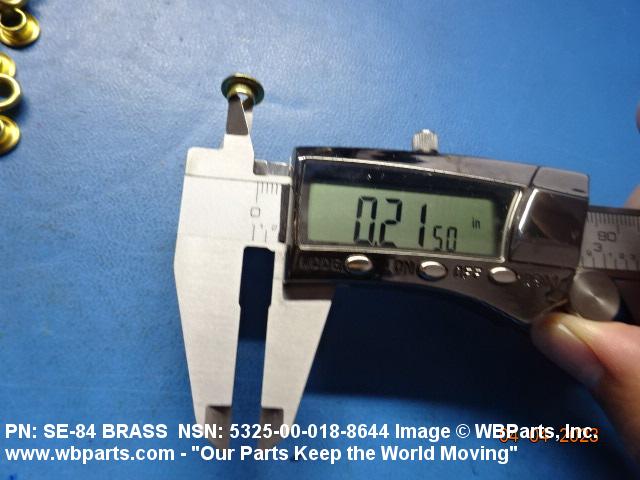

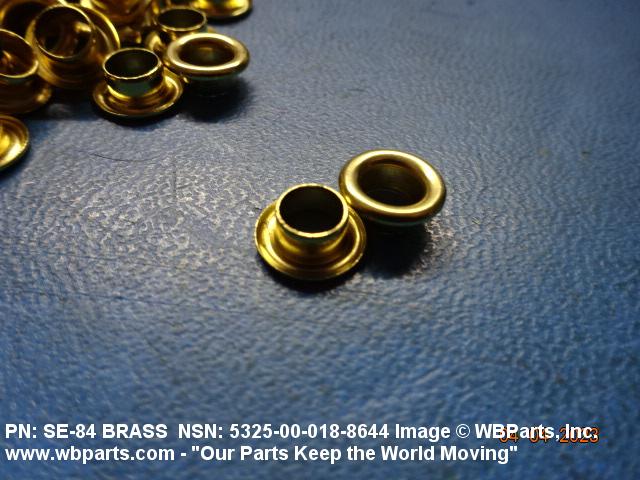

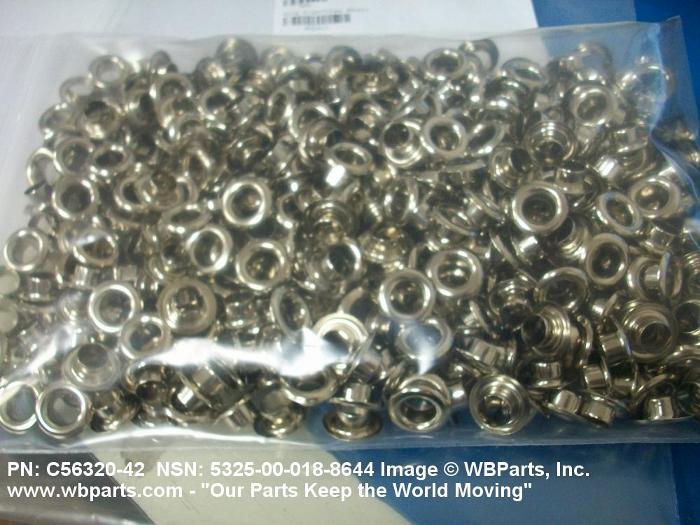

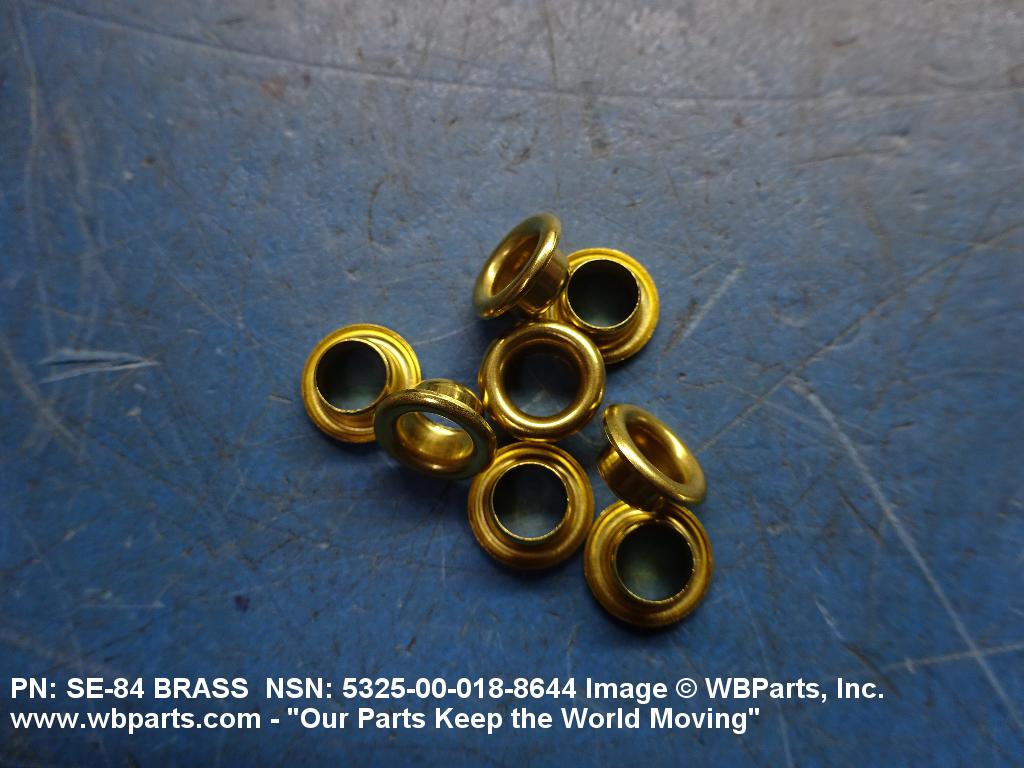

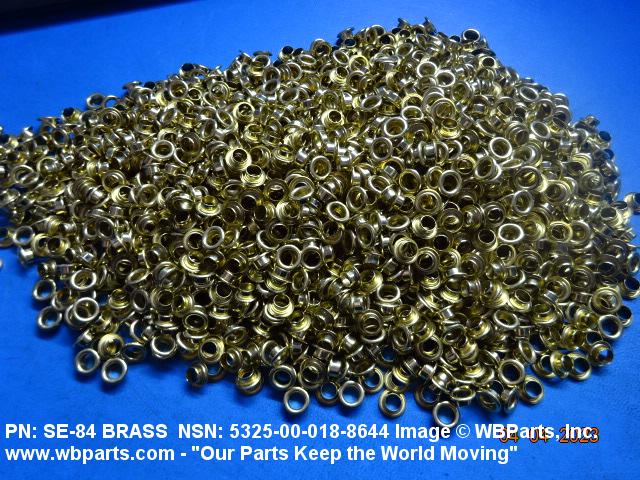

Drawings & Photos | NSN 5325-00-018-8644
Demand History | NSN 5325-00-018-8644
Cross Reference | NSN 5325-00-018-8644
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 188644 | 24617 | GENERAL MOTORS CORP |
| 188644 | 7X677 | GENERAL MOTORS LLC DBA GENERAL MOTORS |
| 410211-256 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 609-062 | 82386 | JAIDINGER MFG. CO., INC. DBA JAICO PRODUCTS |
| C56320-42 | 06845 | RAYTHEON COMPANY DBA RAYTHEON |
| EY250-4 | 80249 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| SE-84 BRASS | 73057 | USM CORP SUB OF EMHART INDUSTRIES INC |
| SE84NP | 61957 | USM CORP SUB OF EMHART INDUSTRIES INC |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5325-00-018-8644
5325-00-019-0595, 5325-00-019-1559, 5325-00-019-1695, 5325-00-019-1768, 5325-00-019-1799
Technical Data | NSN 5325-00-018-8644
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| BARREL STYLE | 1 STRAIGHT ROUND TYPE |

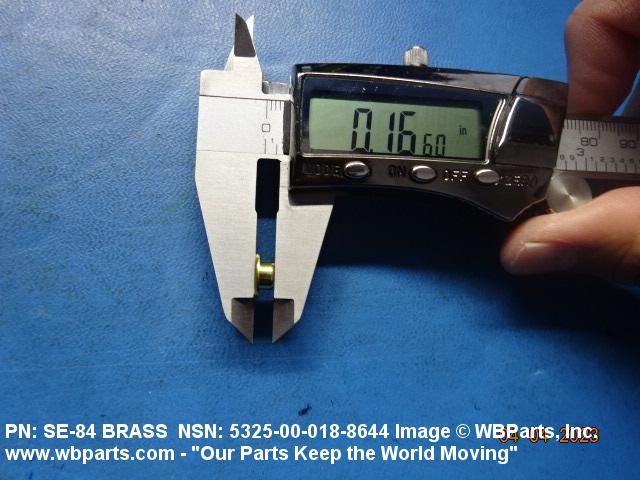

| BARREL HEIGHT | 0.125 INCHES NOMINAL |

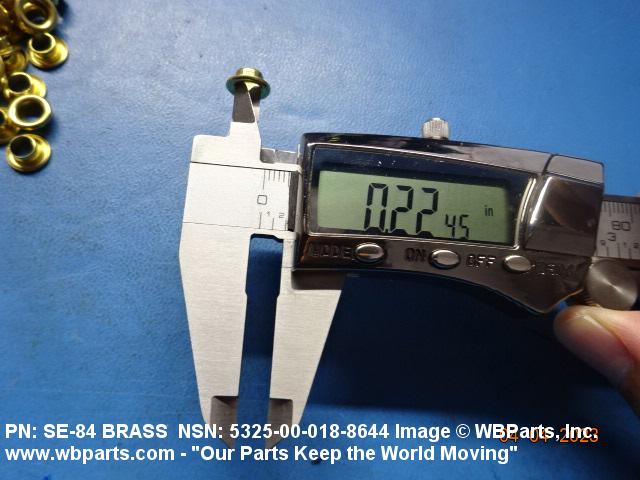

| BARREL OUTSIDE DIAMETER | 0.246 INCHES NOMINAL |
| FLANGE STYLE | 2 FLANGE |

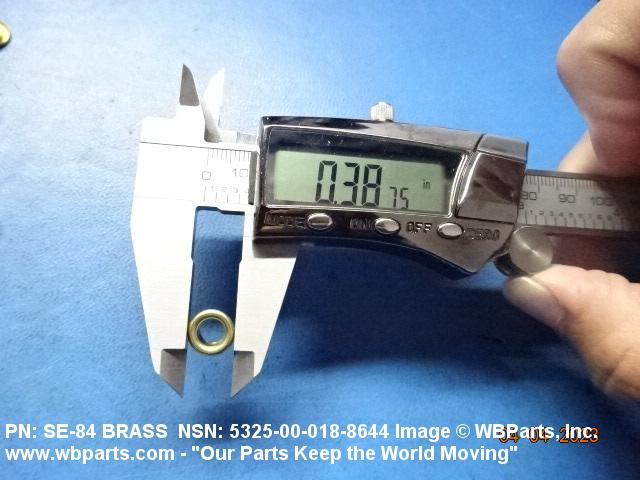

| FLANGE OUTSIDE DIAMETER | 0.385 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-018-8644
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 094533 | EYELETS OR EYELET HOOKS NOI |
| Less than car load rating | ||
| Less than truck load rating | P | 77.5 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-018-8644
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
