NSN 5325-00-135-5554 4G53806101A, 4G53806-101A, 00-135-5554
Product Details | NONMETALLIC GROMMET
5325-00-135-5554 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 4G53806101A, 4G53806-101A, 5325-00-135-5554, 00-135-5554, 5325001355554, 001355554
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JAN 1969 | 00-135-5554 | 33729 ( GROMMET, NONMETALLIC ) |
Drawings & Photos | NSN 5325-00-135-5554
Demand History | NSN 5325-00-135-5554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-135-5554 | 2020-03-79 | 100 | DIBBS |
| 5325-00-135-5554 | 2020-02-57 | 100 | DIBBS |
| 5325-00-135-5554 | 2019-04-107 | 100 | DIBBS |
| 5325-00-135-5554 | 2018-01-29 | 150 | DIBBS |
| 5325-00-135-5554 | 2018-01-01 | 69 | DIBBS |
| 5325-00-135-5554 | 2017-08-239 | 65 | DIBBS |
| 5325-00-135-5554 | 2017-07-199 | 32 | DIBBS |
| 5325-00-135-5554 | 2008-05-140 | 440 | DIBBS |
| 5325-00-135-5554 | 2008-03-70 | 401 | DIBBS |
Cross Reference | NSN 5325-00-135-5554
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 4G53806-101A | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-135-5554
Related Products | NSN 5325-00-135-5554
Technical Data | NSN 5325-00-135-5554
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6855,CL 2,GR 40 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |

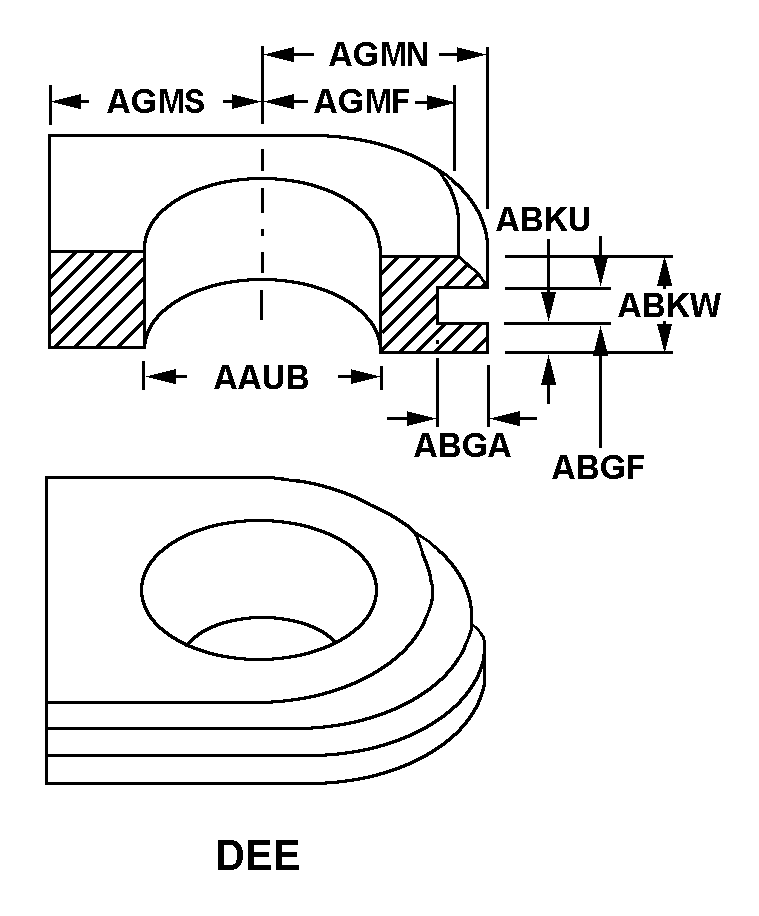

| GROMMET STYLE | 56 DEE |
| HOLE DIAMETER | 1.250 INCHES NOMINAL |
| GROOVE DEPTH | 0.500 INCHES NOMINAL |
| GROOVE WIDTH | 0.090 INCHES NOMINAL |
| FLANGE THICKNESS | 0.268 INCHES NOMINAL |
| OVERALL HEIGHT | 0.438 INCHES NOMINAL |
| LARGE FLANGE RADIUS | 0.880 INCHES NOMINAL |
| SMALL FLANGE RADIUS | 0.750 INCHES NOMINAL |
| HOLE CENTER TO FLAT END LENGTH | 0.880 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SPLIT |
| SPECIAL FEATURES | HOLE CENTER TO FLAT END LENGTH VARIES BECAUSE OF TAPER OF EDGE OF GROMMET |
| MANUFACTURERS CODE | 98897 |
| DESIGN CONTROL REFERENCE | 4G53806-101A |
Restrictions/Controls & Freight Information | NSN 5325-00-135-5554
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | Y | 180 months |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 194120 | WASHERS/GASKETS/PCKG DVCS NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | SG | 403 SCMS/GUED 5215 Thurlow St, Suite 5, Bldg 70C Wright-Patterson AFB OH 45433 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | Z | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-135-5554
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | UC | TG:C-5A GALAXY |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | Y | 180 months |
| Purchasing | QTY UOM |
1 EA : Each |
