NSN 5325-00-141-3291 BACR11X3, 24416S, 244-16S
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-141-3291 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: BACR11X3, 24416S, 244-16S, 65C99611, 65C9961-1, 91376457, 9166047, 5325-00-141-3291, 00-141-3291, 5325001413291, 001413291
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-141-3291 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

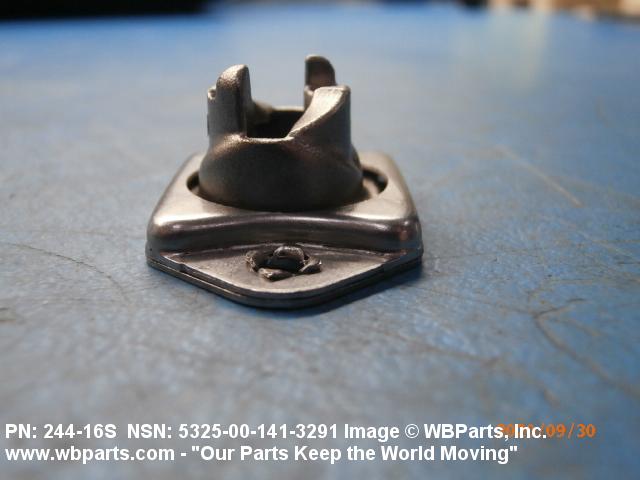

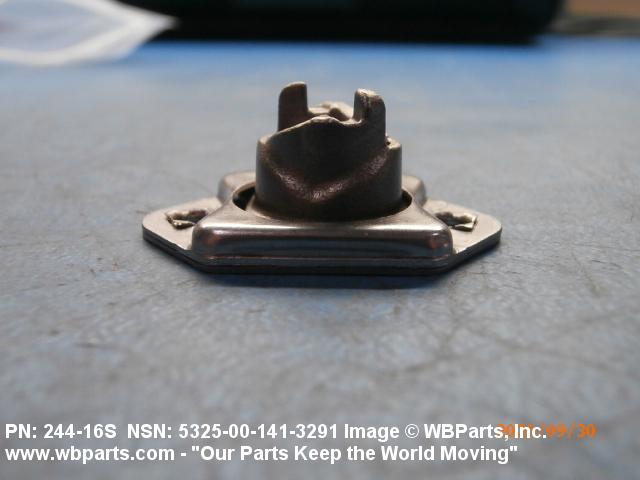

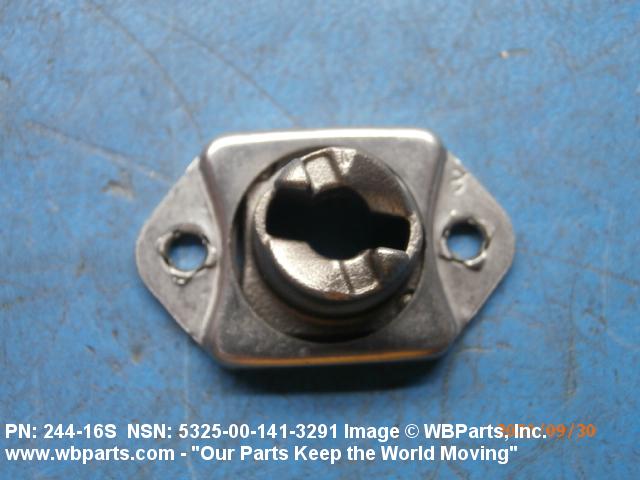

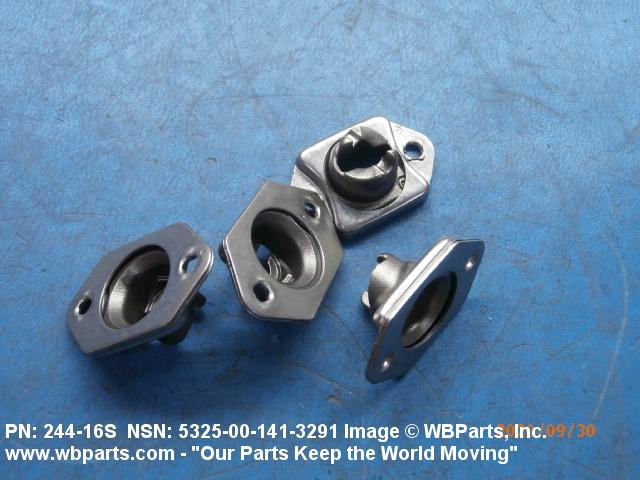

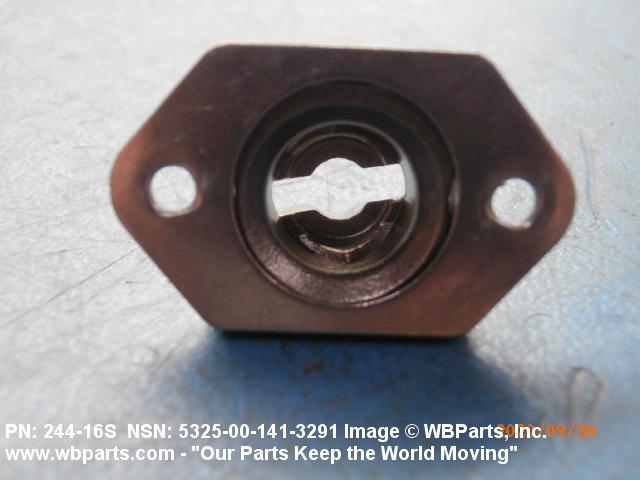

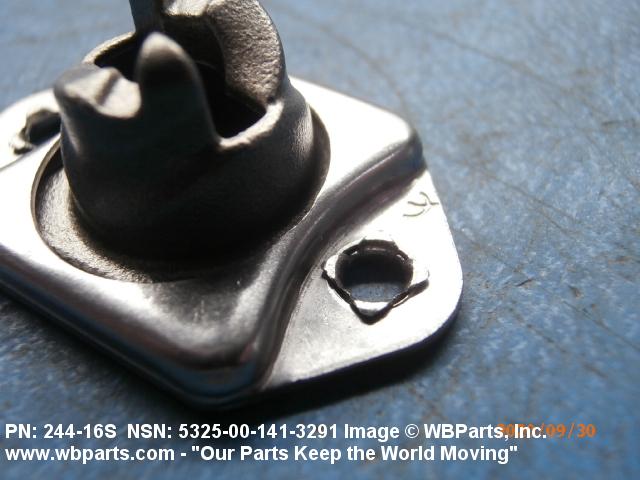

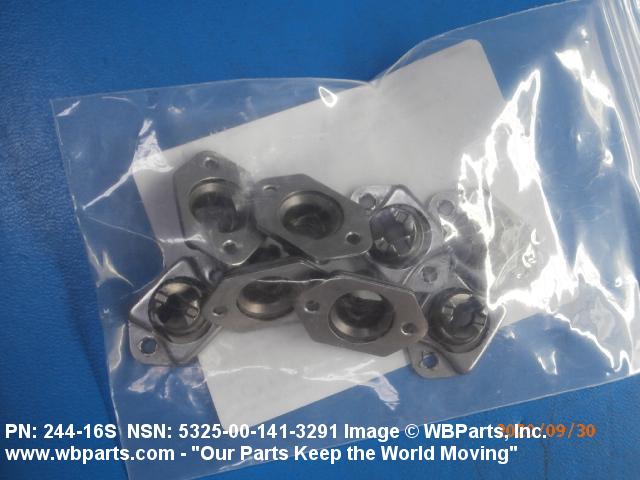

Drawings & Photos | NSN 5325-00-141-3291
Demand History | NSN 5325-00-141-3291
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 244-16S | 2025-12-335 | 229 | DIBBS |
| BACR11X3 | 2025-12-335 | 229 | DIBBS |
| 244-16S | 2025-07-190 | 302 | DIBBS |
| BACR11X3 | 2025-07-190 | 302 | DIBBS |
| 24416S | 2025-06-154 | 25 | US |
| 24416S | 2020-10-282 | 250 | United States |
| 24416S | 2020-10-282 | 3000 | United States |
| 24416S | 2020-09-267 | 4 | United States |
| 24416S | 2020-09-265 | 4 | United States |
| 24416S | 2018-12-348 | 3000 | United States |
| 5325-00-141-3291 | 2017-09-264 | 30 | United States |
| 5325-00-141-3291 | 2017-09-262 | 30 | SG |
| 244-16S | 2013-09-263 | 20 | US |
| 24416S | 2008-03-78 | 100 | US |
| 5325-00-141-3291 | 2008-01-09 | 9 | South Korea |
| 24416S | 2007-10-297 | 65 | US |
| BACR11X3 | 2006-12-341 | 210 | US |
Cross Reference | NSN 5325-00-141-3291
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 244-16S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 65C9961-1 | 19204 | ARMY UNITED STATES DEPARTMENT OF THE |
| 91376457 | F6481 | THALES SA |
| 9166047 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| BACR11X3 | 77272 | THE BOEING COMPANY DBA BOEING |
| BACR11X3 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-141-3291
Related Products | NSN 5325-00-141-3291
Technical Data | NSN 5325-00-141-3291
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TURNLOCK RECEPTACLE STYLE | 10 FLOATING |

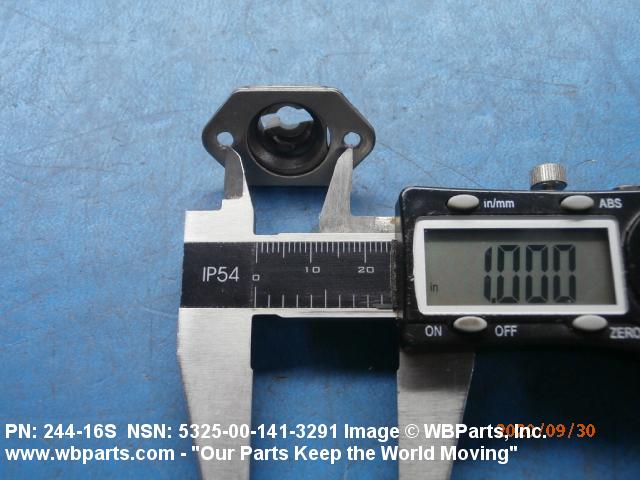

| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 1.000 INCHES NOMINAL |

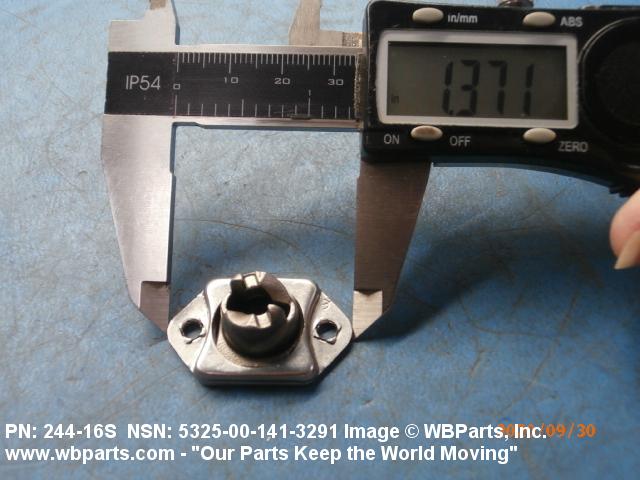

| RECEPTACLE OVERALL LENGTH | 1.375 INCHES NOMINAL |

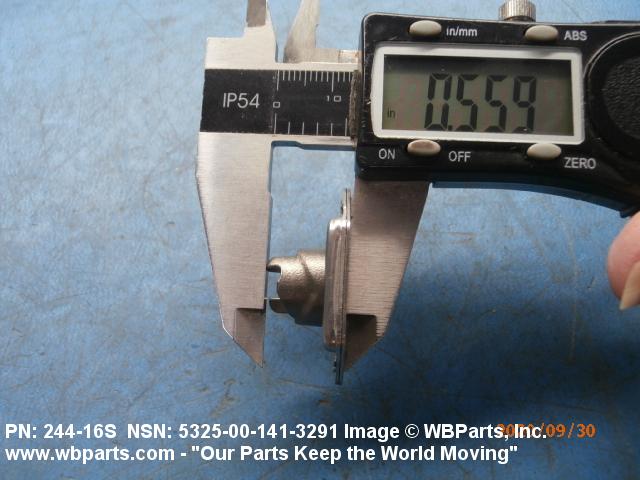

| RECEPTACLE HEIGHT | 0.562 INCHES NOMINAL |

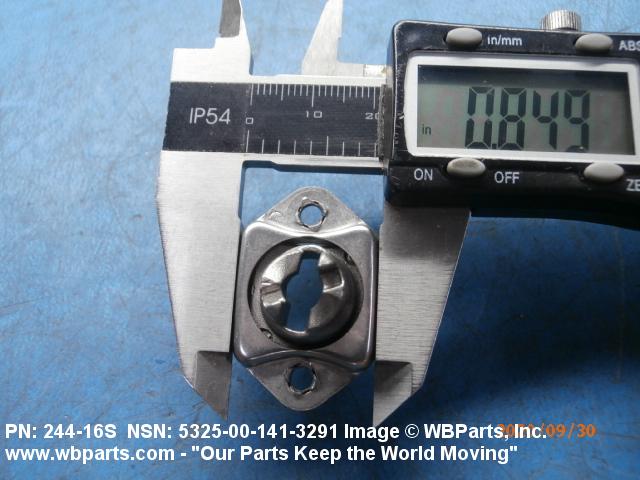

| RECEPTACLE WIDTH | 0.840 INCHES NOMINAL |
| MOUNTING STYLE | 10 RIVETED W/MOUNTING HOLE |

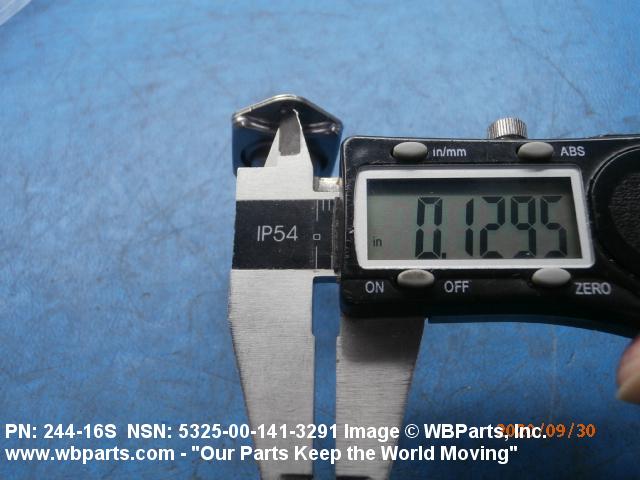

| TURNLOCK MOUNTING HOLE DIAMETER | 0.128 INCHES MINIMUM AND 0.134 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 244-16S |
Restrictions/Controls & Freight Information | NSN 5325-00-141-3291
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-141-3291
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
