NSN 5325-00-144-0908 10607623, 10-60762-3, 00-144-0908
Product Details | NONMETALLIC GROMMET
5325-00-144-0908 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: 10607623, 10-60762-3, 5325-00-144-0908, 00-144-0908, 5325001440908, 001440908
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JAN 1973 | 00-144-0908 | 33729 ( GROMMET, NONMETALLIC ) |

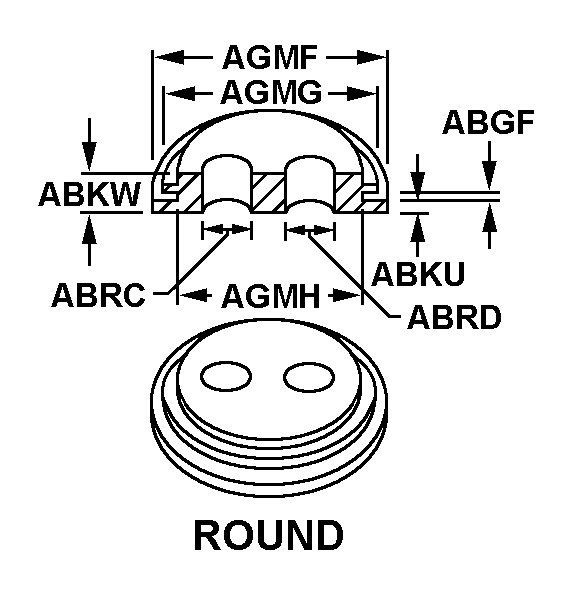

Drawings & Photos | NSN 5325-00-144-0908
Cross Reference | NSN 5325-00-144-0908
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 10-60762-3 | 77820 | AMPHENOL CORPORATION DBA AMPHENOL AEROSPACE INDUSTRIAL |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-144-0908
Technical Data | NSN 5325-00-144-0908
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| COLOR | ANY ACCEPTABLE OVERALL |
| GROMMET STYLE | 18 ROUND |
| GROOVE WIDTH | 0.062 INCHES NOMINAL |
| FLANGE THICKNESS | 0.094 INCHES NOMINAL |
| OVERALL HEIGHT | 0.468 INCHES NOMINAL |
| FIRST HOLE DIAMETER | 0.115 INCHES NOMINAL |
| SECOND HOLE DIAMETER | 0.115 INCHES NOMINAL |
| LARGE FLANGE OUTSIDE DIAMETER | 0.453 INCHES NOMINAL |
| SMALL FLANGE OUTSIDE DIAMETER | 0.406 INCHES NOMINAL |
| GROOVE OUTSIDE DIAMETER | 0.375 INCHES NOMINAL |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | NOT RATED |
| FEATURES PROVIDED | COOLANT RESISTANT AND OIL RESISTANT |
| MANUFACTURERS CODE | 77820 |
| DESIGN CONTROL REFERENCE | 10-60762-3 |
Restrictions/Controls & Freight Information | NSN 5325-00-144-0908
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 156600 | PLASTIC/RUBBER ARTICLE VIZ: |
| Less than car load rating | J | 100.2 |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
