NSN 5325-00-171-4237 G8005818, G800581-8 , 12Z1212033
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-171-4237 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: G8005818, G800581-8 , 12Z1212033, 12Z12120-33, 27008, 2700-8, 28D0LN97, 2-8D0LN97, 55131108, 55131-108, 8168976, 5325-00-171-4237, 00-171-4237, 5325001714237, 001714237
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-171-4237 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

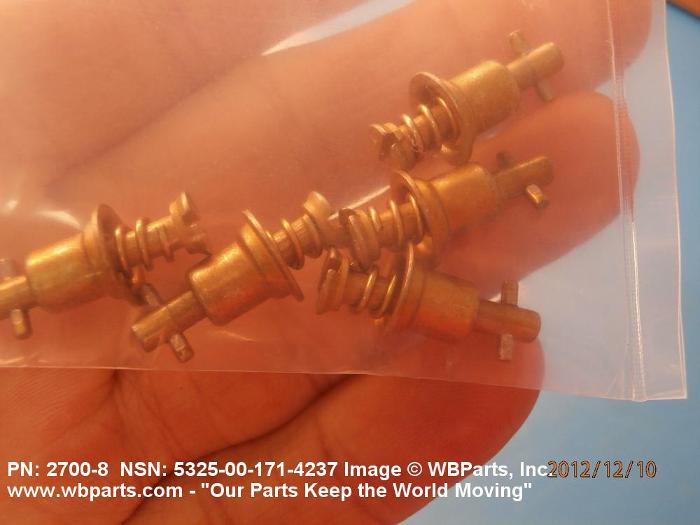

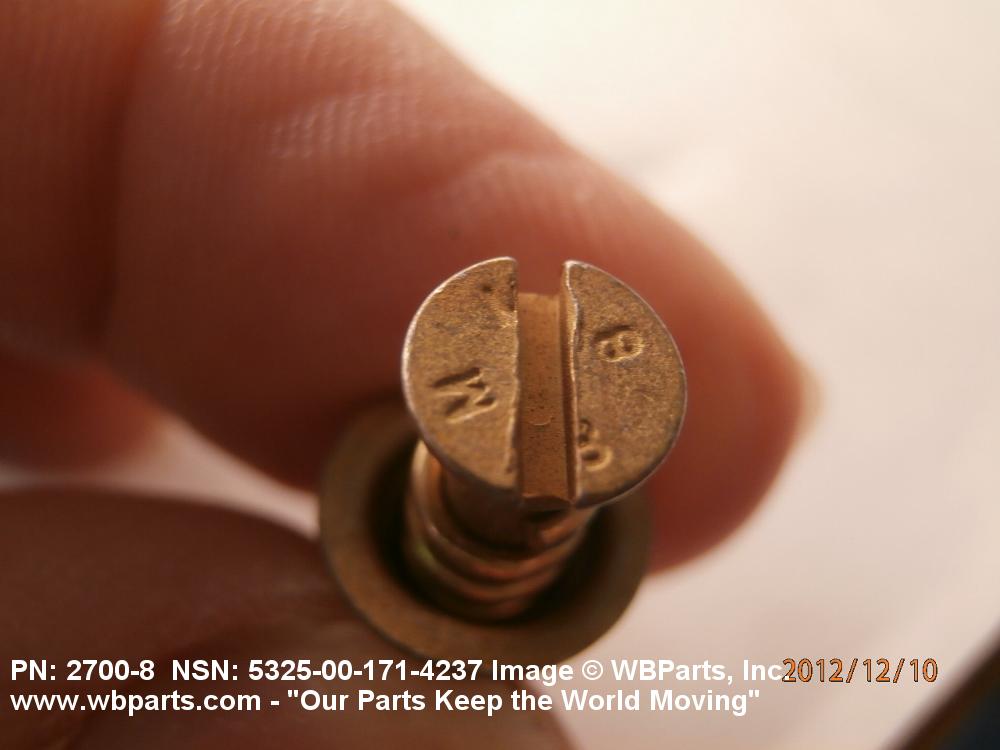

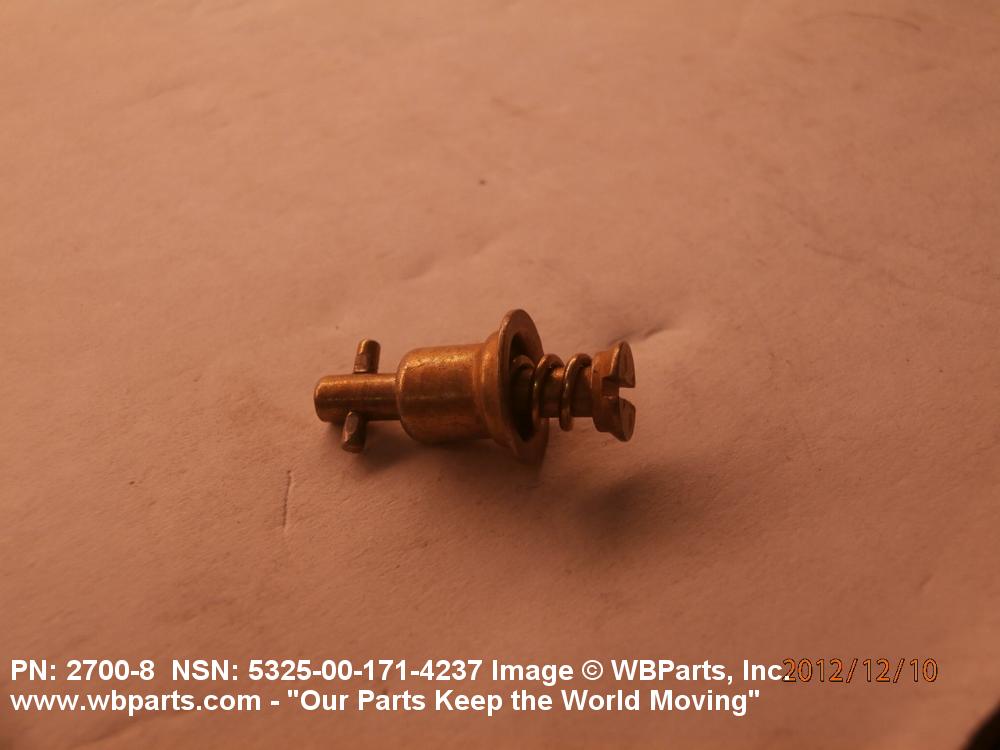

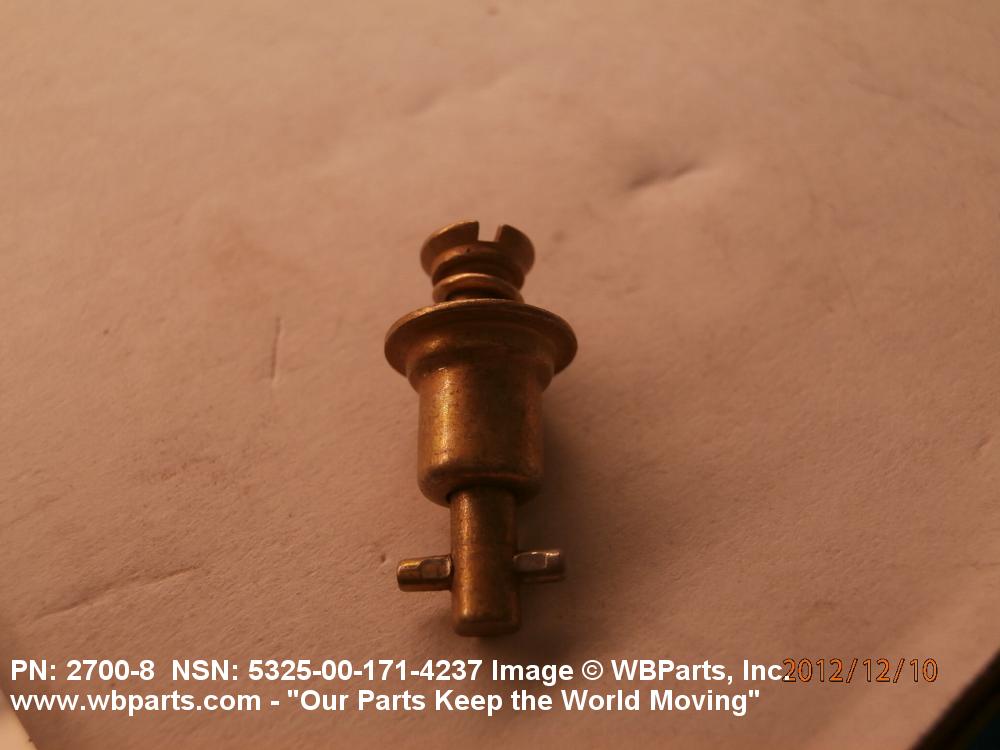

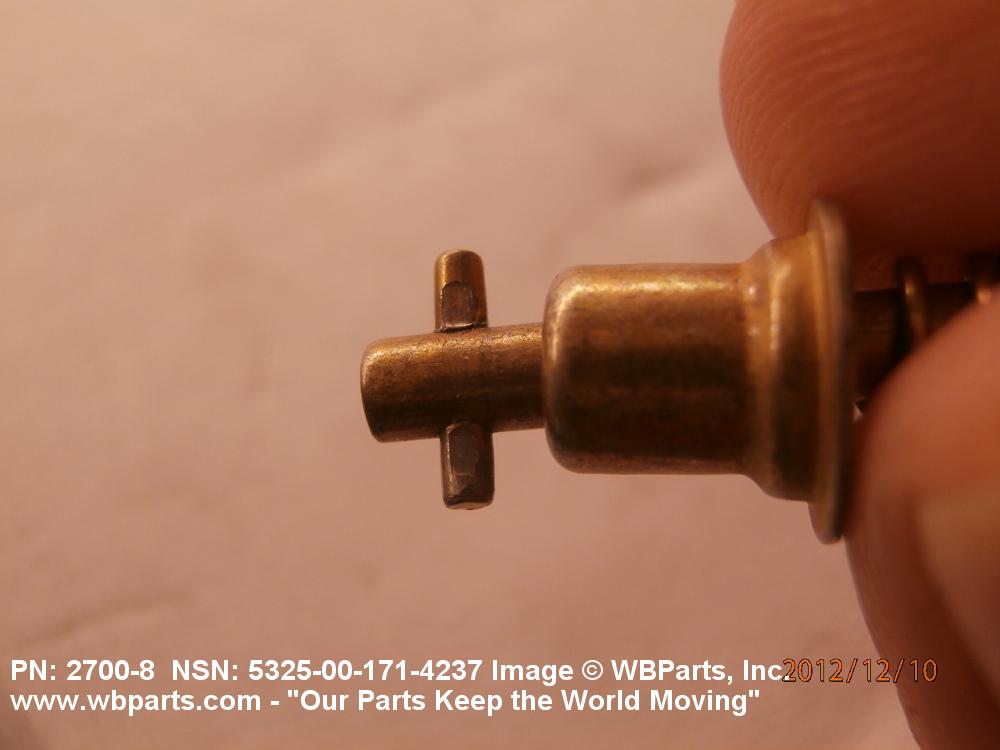

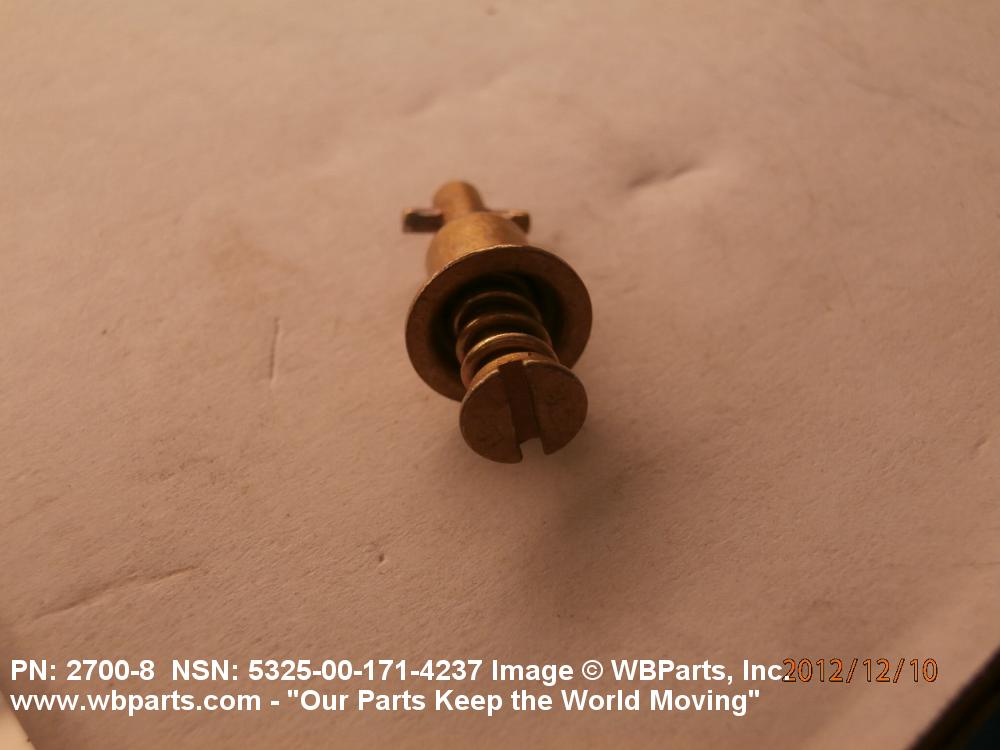

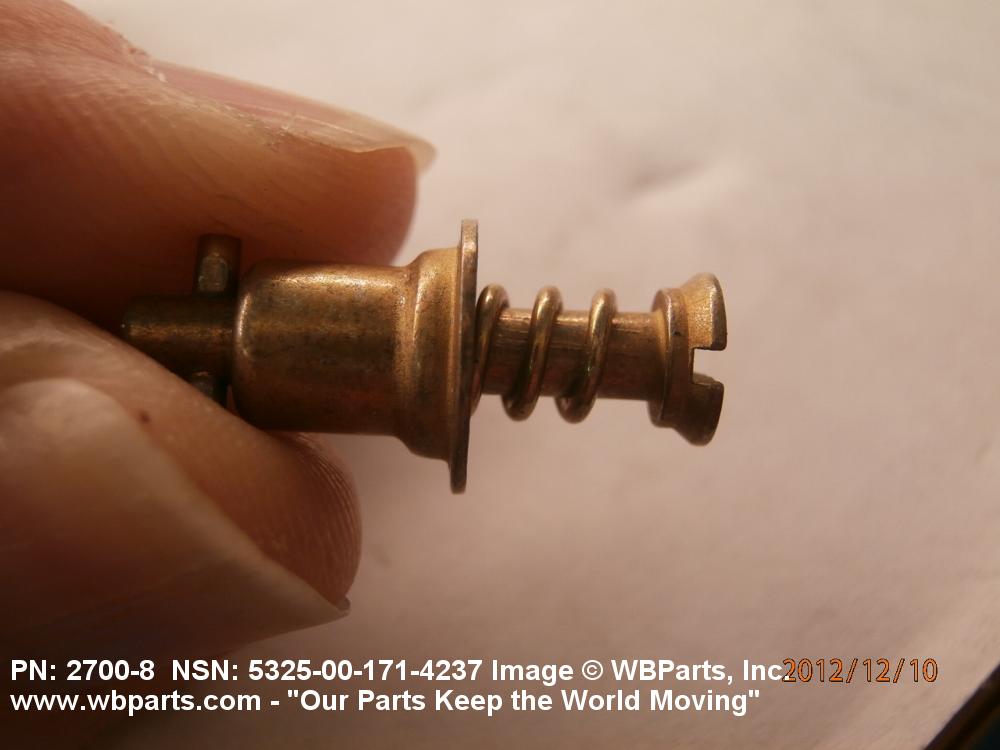

Drawings & Photos | NSN 5325-00-171-4237
Demand History | NSN 5325-00-171-4237
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 2700-8 | 2020-11-324 | 208 | Malaysia |
| 5325-00-171-4237 | 2012-11-335 | 50 | United States |
| 5325-00-171-4237 | 2009-03-64 | 25 | US |
Cross Reference | NSN 5325-00-171-4237
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12Z12120-33 | 94135 | NAVAL ORDNANCE STANDARDS |
| 2-8D0LN97 | D0216 | RUAG AEROSPACE SERVICES GMBH |
| 2700-8 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2700-8 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2700-8 | K1678 | FAIRCHILD FASTENERS UK LTD |
| 55131-108 | F5442 | AIRBUS GROUP |
| 8168976 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| G800581-8 | 06KW9 | LUCENT TECHNOLOGIES INC DBA FEDERAL MARKETING GROUP |
| G800581-8 | 3B4M0 | LUCENT TECHNOLOGIES INC CORPORATE HEADQUARTERS |
| G800581-8 | 64959 | AMERICAN TELEPHONE AND TELEGRAPH CO |
| G800581-8 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-171-4237
Technical Data | NSN 5325-00-171-4237
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| TURNLOCK STUD HEAD STYLE | 17 STUD HEAD |
| DIAMETER | 0.253 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.072 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 8 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.671 INCHES MINIMUM AND 0.681 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.328 INCHES NOMINAL |
| SECURING DEVICE TYPE | WASHER |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.240 INCHES MINIMUM AND 0.269 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-171-4237
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5325-00-171-4237
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
