Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-171-4938 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: C2954352, C295435-2, C2954354, C295435-4, PFSC3 1-2 38, PFSC31238, PFSC3-1-2-38, 99-7267-001, 023707, 100004, 10-0004, 2954352, 295435-2, 39044211, 390442-11, 417829A, 55002401, 550024-01, 5500241, 550024-1, 7437970P2, 9001471, 900147-1, 5325-00-171-4938, 00-171-4938, 5325001714938, 997267001, 001714938
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-171-4938 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

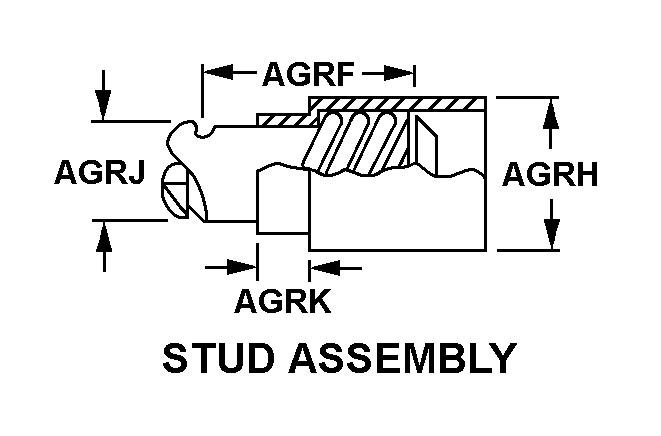

Drawings & Photos | NSN 5325-00-171-4938
