Product Details | TURNBUTTON FASTENER CLINCH PLATE
5325-00-174-9042 A metal device designed to permanently fasten a SOCKET, TURNBUTTON FASTENER or STUD, TURNBUTTON FASTENER to a material by means of prongs, riveting, or spring binding action.
Part Alternates: 63566, 5325-00-174-9042, 00-174-9042, 5325001749042, 001749042
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-174-9042 | 18138 ( CLINCH PLATE, TURNBUTTON FASTENER ) |

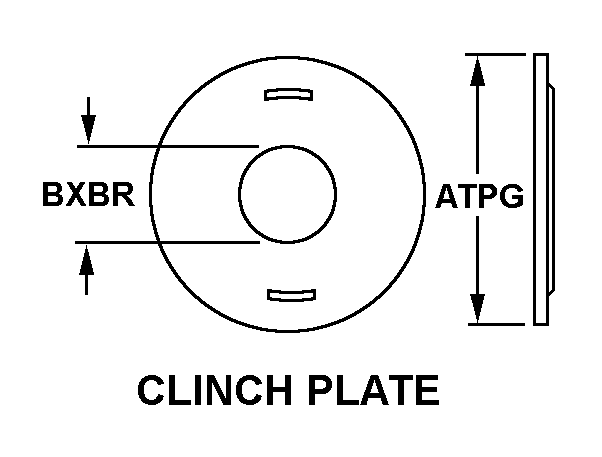

Drawings & Photos | NSN 5325-00-174-9042
Cross Reference | NSN 5325-00-174-9042
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 63566 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Related Products | NSN 5325-00-174-9042
5325-00-174-9045, 5325-00-174-9049, 5325-00-174-9056, 5325-00-174-9057, 5325-00-174-9063
Technical Data | NSN 5325-00-174-9042
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | NICKEL OVERALL |
| TURNBUTTON CLINCH PLATE STYLE | 2 CLINCH PLATE |
| PLATE DIAMETER | 0.875 INCHES NOMINAL |
| HOLE INSIDE DIAMETER | 0.305 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-174-9042
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
