NSN 5325-00-202-1824 00-202-1824, 002021824
Product Details | TURNLOCK FASTENER STUD
5325-00-202-1824 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: 5325-00-202-1824, 00-202-1824, 5325002021824, 002021824
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-202-1824 | 18421 ( STUD, TURNLOCK FASTENER ) |

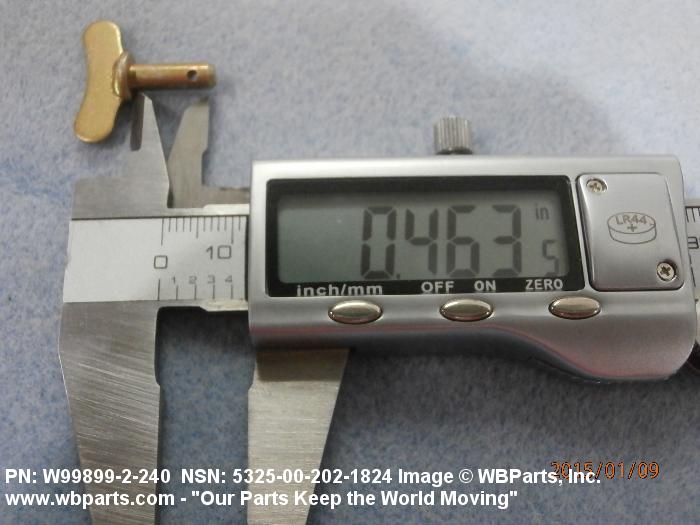

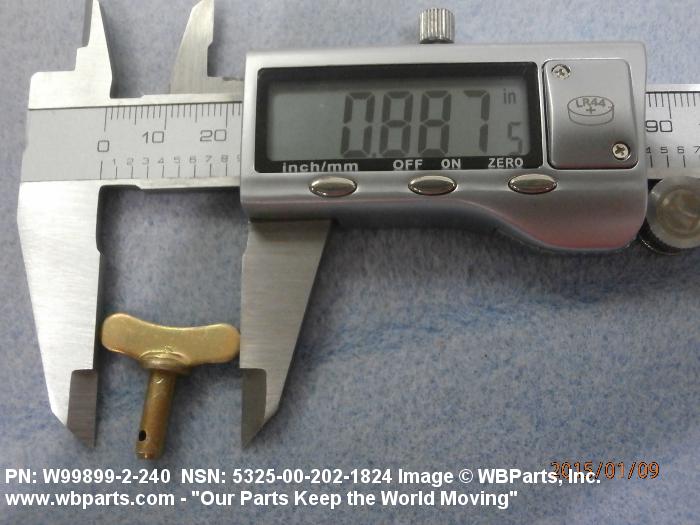

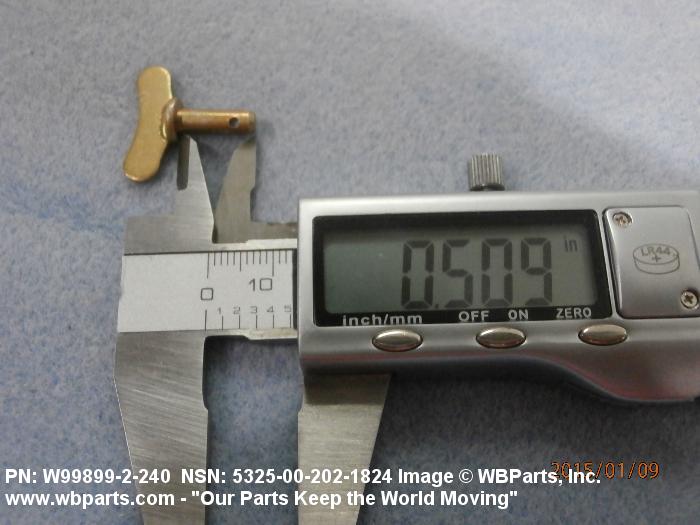

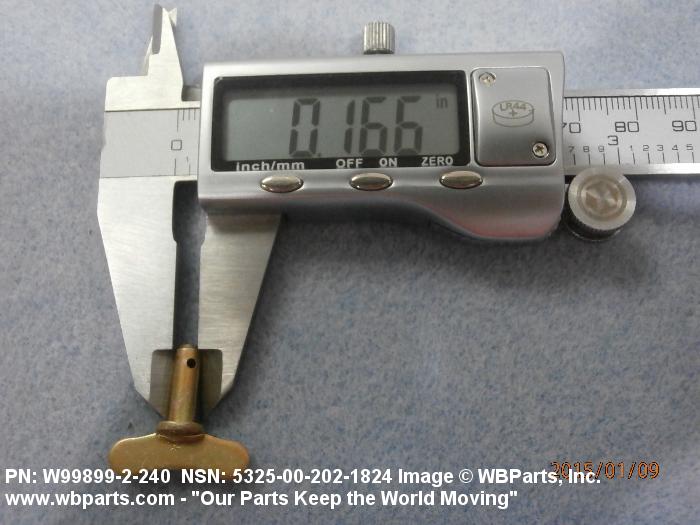

Drawings & Photos | NSN 5325-00-202-1824
Cross Reference | NSN 5325-00-202-1824
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| W98293-2-240 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| W98293-2-240 | 76530 | TRW INC TRW ELECTRONICS COMPONENTS |
| W99899-2-240 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
| W99899-2-240 | 61864 | TRW ASSEMBLIES AND FASTENERS GROUP |
| WL98293-2-240 | 60119 | MONADNOCK COMPANY THE DBA LISI AEROSPACE |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-202-1824
Technical Data | NSN 5325-00-202-1824
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| TURNLOCK STUD SHANK STYLE | 7 STUD SHANK |
| GRIP LENGTH | 0.380 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.171 INCHES NOMINAL |
| TURNLOCK STUD HEAD STYLE | 10 FILLISTER WING |
| HEAD LENGTH | 0.875 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.328 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.231 INCHES MINIMUM AND 0.240 INCHES MAXIMUM |
Restrictions/Controls & Freight Information | NSN 5325-00-202-1824
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
