NSN 5325-00-282-7449 XX783264006, XX78326-4006, 00-282-7449
Product Details | TURNBUTTON FASTENER STUD
5325-00-282-7449 A fastening device, oval in shape, the top half of which, after having been inserted through a SOCKET, TURNBUTTON FASTENER, must be turned to act as a retainer. May include a CLINCH PLATE, TURNBUTTON FASTENER. For items furnished with SOCKET, TURNBUTTON FASTENER see FASTENER, TURNBUTTON.
Part Alternates: XX783264006, XX78326-4006, 5325-00-282-7449, 00-282-7449, 5325002827449, 002827449
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-63 | 00-282-7449 | 16498 ( STUD, TURNBUTTON FASTENER ) |

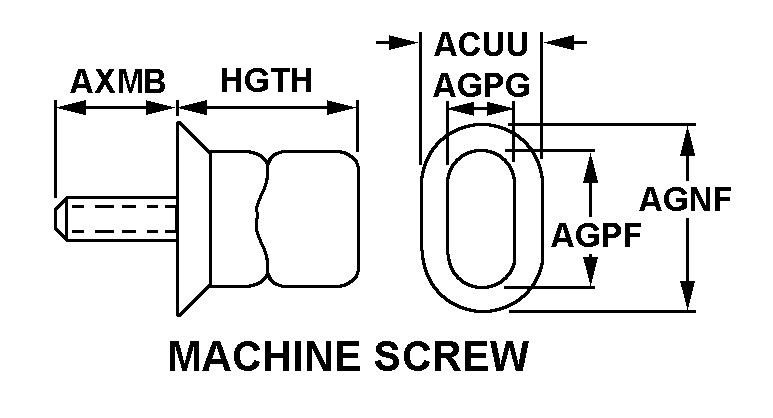

Drawings & Photos | NSN 5325-00-282-7449
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-282-7449
Technical Data | NSN 5325-00-282-7449
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY OVERALL |
| SURFACE TREATMENT | ENAMEL OVERALL |
| THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.138-32 UNC |
| SOCKET ACCOMMODATED QUANTITY | 1 |
| TURNBUTTON STUD STYLE | 1 MACHINE SCREW |
| BASE WIDTH | 0.500 INCHES NOMINAL |
| BASE LENGTH | 0.781 INCHES NOMINAL |
| BUTTON WIDTH | 0.531 INCHES NOMINAL |
| BUTTON THICKNESS | 0.312 INCHES NOMINAL |
| END LENGTH | 1.250 INCHES NOMINAL |
| HEIGHT | 0.781 INCHES NOMINAL |
| FABRICATION METHOD | STAMPED |
| SPECIAL FEATURES | DULL BLACK COLOR |
Restrictions/Controls & Freight Information | NSN 5325-00-282-7449
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
