NSN 5325-00-286-3119 985ES, 98-5ES, 00-286-3119
Product Details | TURNLOCK FASTENER EJECTOR SPRING
5325-00-286-3119 A leaf-spring type item made of elastic material, designed to be fastened to a panel or RECEPTACLE, TURNLOCK FASTENER, and used to eject a STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER when retracted from an inserted position.
Part Alternates: 985ES, 98-5ES, 5325-00-286-3119, 00-286-3119, 5325002863119, 002863119
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-286-3119 | 18424 ( EJECTOR SPRING, TURNLOCK FASTENER ) |

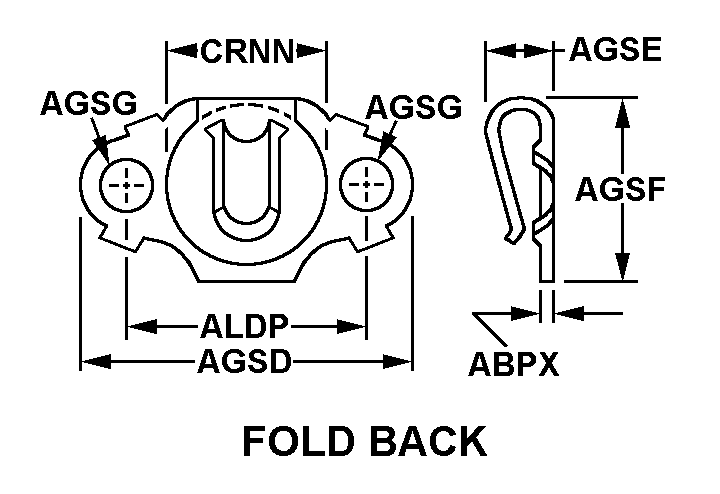

Drawings & Photos | NSN 5325-00-286-3119
Cross Reference | NSN 5325-00-286-3119
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 98-5ES | 78189 | ITW SHAKEPROOF AUTOMOTIVE PRODUCTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-286-3119
Technical Data | NSN 5325-00-286-3119
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM OR ZINC OVERALL |
| EJECTOR SPRING STYLE | 4 FOLD BACK |
| MATERIAL THICKNESS | 0.012 INCHES NOMINAL |
| SPRING OVERALL LENGTH | 1.375 INCHES NOMINAL |
| SPRING HEIGHT | 0.312 INCHES NOMINAL |
| SPRING WIDTH | 0.938 INCHES NOMINAL |
| SPRING MOUNTING HOLE DIAMETER | 0.266 INCHES NOMINAL |
| CENTER TO CENTER DISTANCE BETWEEN SPRING MOUNTING HOLES | 1.000 INCHES NOMINAL |
| EJECTOR SPRING HOLE DIAMETER | 0.500 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5325-00-286-3119
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | W | Rating Variable |
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
