NSN 5325-00-290-6163 MS 35489-13, MS3548913, MS35489-13
Product Details | NONMETALLIC GROMMET
5325-00-290-6163 An item of any peripheral shape having flanges or groove(s) on its outer perimeter to provide a self-retaining characteristic when inserted in a hole, clamp, or the like. Designed for the purpose of protecting and/or insulating wires, cables and other items passing through it. Excludes BUSHING, NONMETALLIC; BUMPER; and INSULATOR BUSHING.
Part Alternates: MS 35489-13, MS3548913, MS35489-13, MS3548913S, MS35489-13S, MS3549013, MS35490-13, AN931711, AN931-7-11, BACG20AF7B1, ES585C005, ZA3591001REV2, ZA359-1001REV2, 9307K25, 944.87.31.013, 9448731013, 113014, 113014ADX, 12Z1200211, 12Z12002-11, 2010005000, 201-0005-000, 2282, 3591001PT5, 359-1001PT5, 38006410, 50N059, 5325-00-290-6163, 00-290-6163, 5325002906163, 002906163
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-6163 | 33729 ( GROMMET, NONMETALLIC ) |

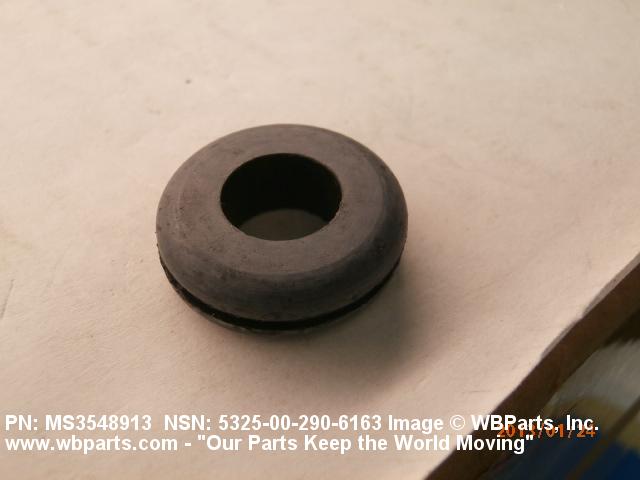

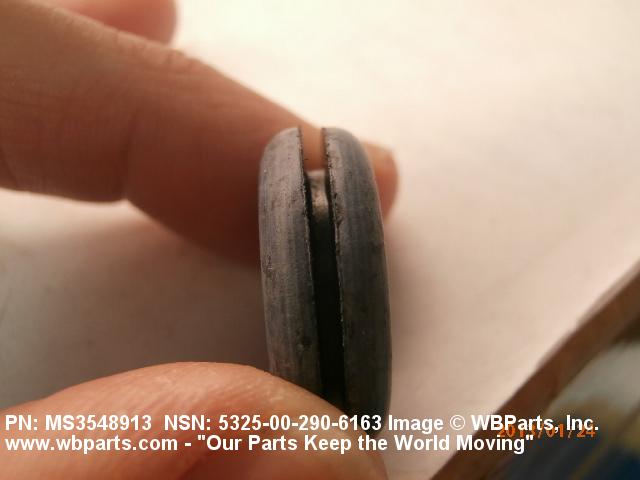

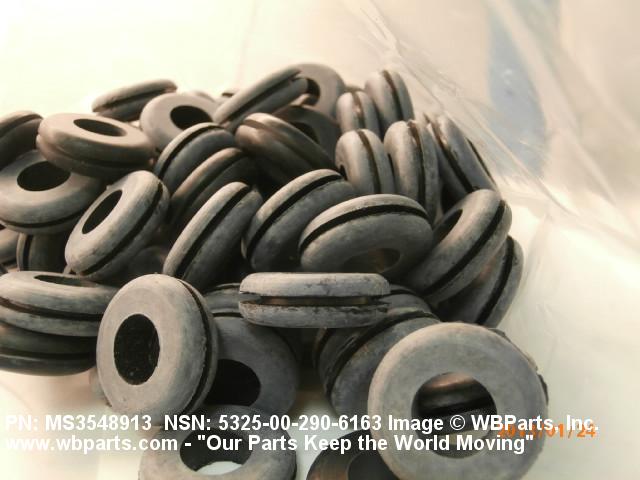

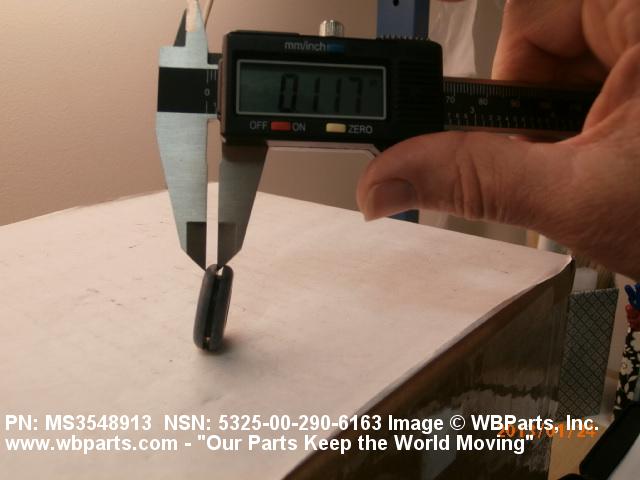

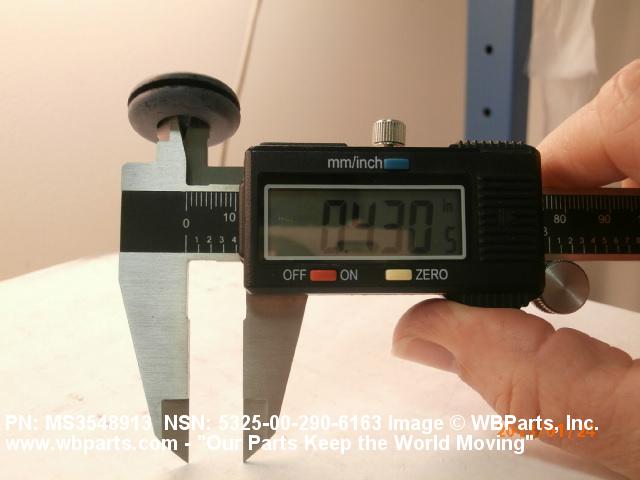

Drawings & Photos | NSN 5325-00-290-6163
Demand History | NSN 5325-00-290-6163
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS3548913 | 2025-06-164 | 1 | United States |
| 5325-00-290-6163 | 2025-06-164 | 95 | AE |
| MS3548913 | 2025-05-140 | 10 | United States |
| 5325-00-290-6163 | 2025-03-85 | 526 | DIBBS |
| 5325-00-290-6163 | 2025-01-13 | 575 | DIBBS |
| MS3548913 | 2024-01-23 | 135 | United States |
| 5325-00-290-6163 | 2022-11-306 | 3172 | DIBBS |
| 5325-00-290-6163 | 2021-08-238 | 4377 | DIBBS |
| 5325-00-290-6163 | 2021-08-227 | 4377 | DIBBS |
| MS3548913 | 2021-07-203 | 25 | United States |
| MS3548913 | 2021-07-203 | 5 | United States |
| 5325-00-290-6163 | 2020-09-247 | 1 | Malaysia |
| MS3548913 | 2019-03-63 | 20 | China |
| MS3548913 | 2018-09-268 | 20 | US |
| MS3548913 | 2017-09-256 | 17 | United States |
| MS3548913 | 2017-08-230 | 2 | United States |
| 5325-00-290-6163 | 2017-06-166 | 12 | United States |
| MS3548913 | 2017-04-94 | 1 | TH |
| 5325-00-290-6163 | 2017-02-55 | 1 | DIBBS-RFPs |
| 113014 | 2013-12-347 | 1 | Indonesia |
| MS35489-13 | 2013-05-134 | 10 | CZ |
| MS3548913 | 2013-01-11 | 10 | United States |
| MS3549013 | 2011-08-241 | 10 | KR |
| 5325-00-290-6163 | 2011-06-173 | 1024 | DIBBS |
| 5325-00-290-6163 | 2011-06-166 | 10 | KR |
| 5325-00-290-6163 | 2011-05-131 | 10 | KR |
| MS3548913 | 2010-12-361 | 25 | United States |
| 5325-00-290-6163 | 2008-10-277 | 640 | DIBBS |
| MS3548913S | 2006-09-256 | 20 | US |
Cross Reference | NSN 5325-00-290-6163
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 113014 | 73734 | FEDERAL SCREW PRODUCTS INC. |
| 113014ADX | 1VN02 | AIRDALE EXPRESS LLC |
| 1208-3-7S11 | 93296 | IMMEL ENGINEERING AND DEVELOPMENT CO |
| 12Z12002-11 | 10001 | NAVAIR AND NAVSEA MANAGED ORIGINAL DESIGN ACTIVITY DWG NOT |
| 201-0005-000 | 13499 | ROCKWELL COLLINS, INC. DBA GOVERNMENT SYSTEMS |
| 2282 | 70485 | ATLANTIC INDIA RUBBER CO INC |
| 359-1001PT5 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
| 38006410 | 72314 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 50N059 | 72653 | GC/WALDOM INC |
| 5358-7S11 | 75345 | KIRKHILL-TA CO. |
| 9307K25 | 39428 | MCMASTER-CARR SUPPLY COMPANY |
| 944.87.31.013 | S4080 | PILATUS AIRCRAFT LTD |
| AN931-7-11 | 88044 | AERONAUTICAL STANDARDS GROUP DEPT OF NAVY AND AIR FORCE |
| BACG20AF7B1 | 81205 | THE BOEING COMPANY DBA BOEING |
| C009-7S11 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| ES585C005 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS 35489-13 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35489-13 | 6K404 | BASIC RUBBER AND PLASTICS CO. |
| MS35489-13 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| MS35489-13S | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MS35490-13 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| ZA359-1001REV2 | 49956 | RAYTHEON COMPANY DBA RAYTHEON |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-290-6163
Related Products | NSN 5325-00-290-6163
Technical Data | NSN 5325-00-290-6163
| Characteristic | Specifications |
|---|---|
| MATERIAL | RUBBER SYNTHETIC OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM D2000 BG515A14B24C32E036F19Z ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| COLOR | BLACK OVERALL |
| GROMMET STYLE | 1 ROUND |
| HOLE DIAMETER | 0.421 INCHES MINIMUM AND 0.453 INCHES MAXIMUM |

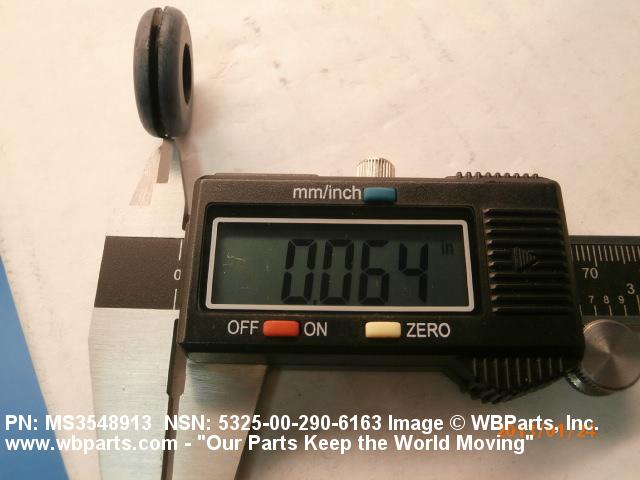

| GROOVE WIDTH | 0.047 INCHES MINIMUM AND 0.079 INCHES MAXIMUM |
| FLANGE THICKNESS | 0.125 INCHES NOMINAL |

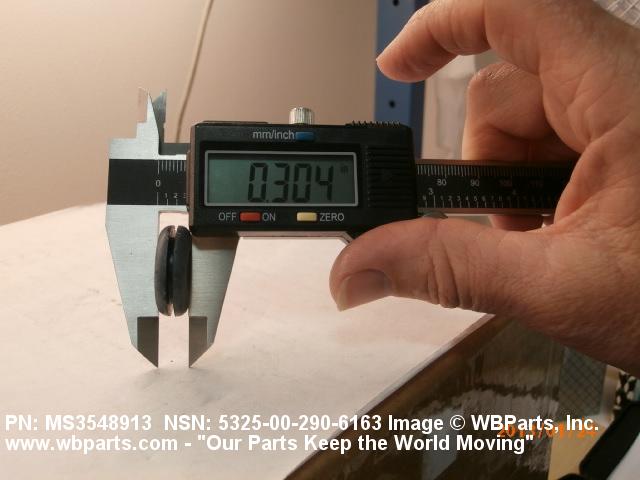

| OVERALL HEIGHT | 0.281 INCHES MINIMUM AND 0.343 INCHES MAXIMUM |

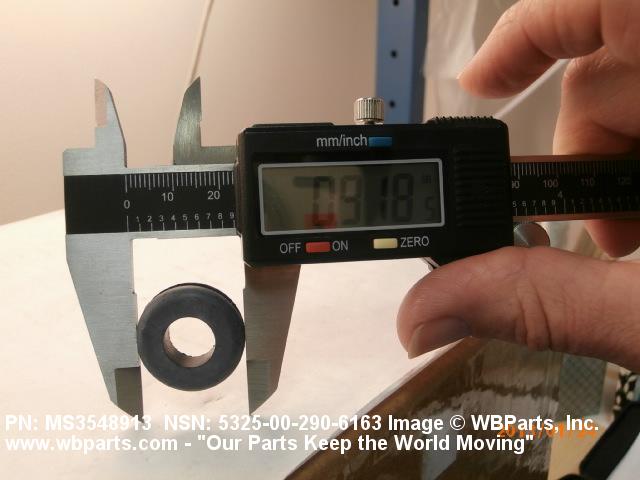

| LARGE FLANGE OUTSIDE DIAMETER | 0.906 INCHES MINIMUM AND 0.968 INCHES MAXIMUM |

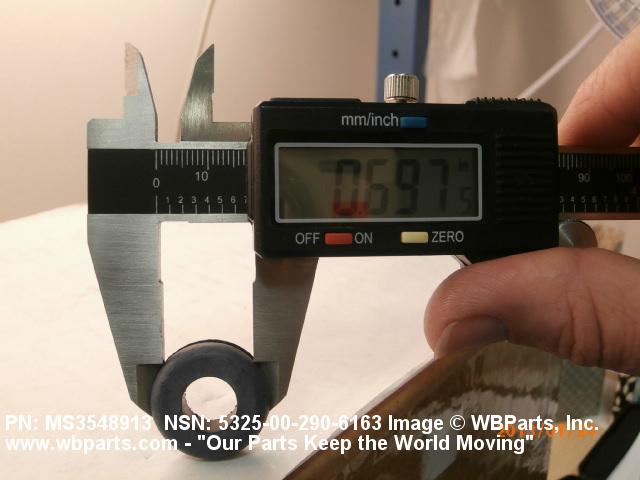

| GROOVE OUTSIDE DIAMETER | 0.672 INCHES MINIMUM AND 0.704 INCHES MAXIMUM |
| GROMMET CONSTRUCTION TYPE | SOLID |
| NONMETALLIC HARDNESS RATING | 45.0 MINIMUM SHORE DUROMETER A AND 55.0 MAXIMUM SHORE DUROMETER A |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS35489-13 |
Restrictions/Controls & Freight Information | NSN 5325-00-290-6163
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105000 | DOWEL PINS I/S NOI IN BAG/BBL/BOXES |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 574 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-290-6163
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
