NSN 5325-00-290-8028 A72498, BACS21X4, 0745231265
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-290-8028 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: A72498, BACS21X4, 0745231265, 40024, 4002-4, 502AS2137004, 502AS2137-004, 6L.3741.001-296848, 6L3741001296848, 72498, 5325-00-290-8028, 00-290-8028, 5325002908028, 002908028
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-290-8028 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

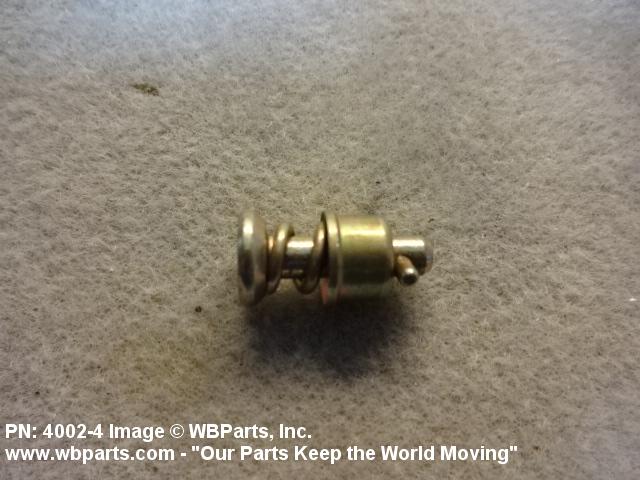

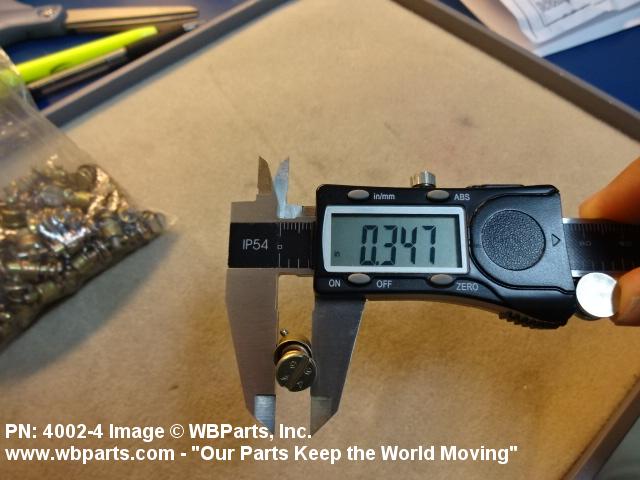

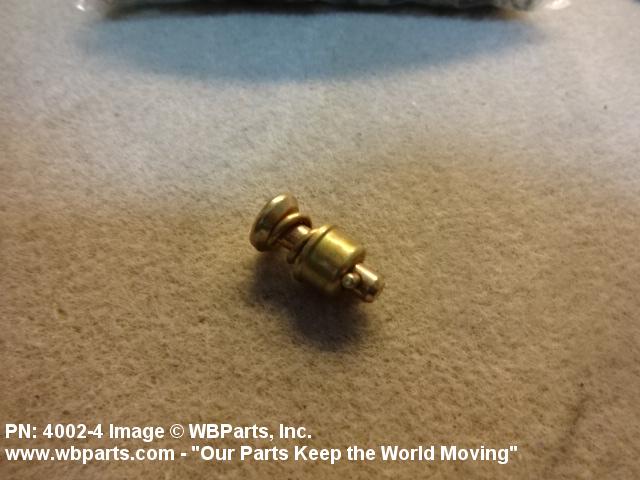

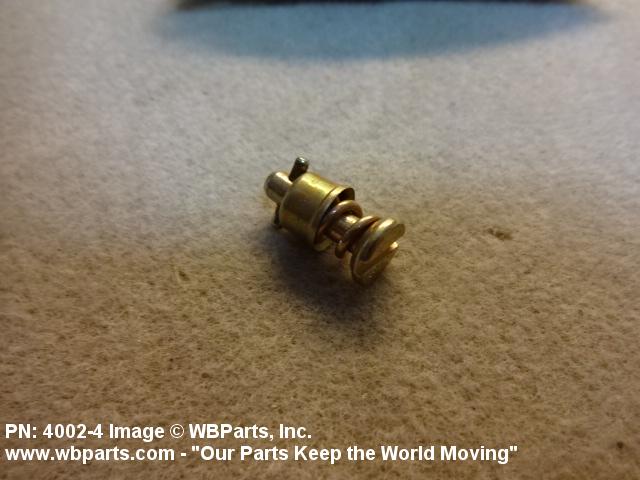

Drawings & Photos | NSN 5325-00-290-8028
Demand History | NSN 5325-00-290-8028
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 40024 | 2019-03-84 | 2 | Pakistan |
| BACS21X4 | 2017-02-37 | 10 | United States |
| 40024 | 2014-04-113 | 30 | US |
| 5325-00-290-8028 | 2011-09-249 | 500 | PK |
| 5325-00-290-8028 | 2009-08-238 | 58 | PK |
| 5325-00-290-8028 | 2008-06-178 | 50 | Colombia |
| 5325-00-290-8028 | 2008-05-143 | 700 | Indonesia |
| 5325-00-290-8028 | 2006-10-297 | 299 | United States |
| 40024 | 2006-04-98 | 100 | us |
Cross Reference | NSN 5325-00-290-8028
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 0745231265 | D2117 | KIRSCH GMBH DBA FIRMA KIRSCH |
| 4002-4 | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 4002-4 | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 502AS2137-004 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 6L.3741.001-296848 | D0327 | SELEX COMMUNICATIONS GMBH |
| 72498 | 03848 | ARMA DIV AMBAC INDUSTRIES INC |
| A72498 | 58250 | BALLANTYNE OF OMAHA INC. |
| BACS21X4 | 81205 | THE BOEING COMPANY DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-290-8028
Technical Data | NSN 5325-00-290-8028
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| TURNLOCK STUD HEAD STYLE | 17 STUD HEAD |
| DIAMETER | 0.380 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.098 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 17 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.513 INCHES MINIMUM AND 0.523 INCHES MAXIMUM |
| EYELET OUTSIDE DIAMETER | 0.341 INCHES MINIMUM AND 0.348 INCHES MAXIMUM |
| EYELET LENGTH | 0.257 INCHES NOMINAL |
| SECURING DEVICE TYPE | WASHER |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | 0.141 INCHES MINIMUM AND 0.170 INCHES MAXIMUM |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 4002-4 |
Restrictions/Controls & Freight Information | NSN 5325-00-290-8028
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 093490 | BOLT/NUT/SCREW/CLIPS/FASTENER/ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-290-8028
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
