NSN 5325-00-343-4104 716-058-001, 00-343-4104, 716058001
Product Details | RETAINING RING
5325-00-343-4104 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: 716-058-001, 5325-00-343-4104, 00-343-4104, 5325003434104, 716058001, 003434104
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 15 JAN 1974 | 00-343-4104 | 07623 ( RING, RETAINING ) |
Drawings & Photos | NSN 5325-00-343-4104
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-343-4104
Technical Data | NSN 5325-00-343-4104
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY |
| SURFACE TREATMENT | PAINTED AND LACQUER, BLACK |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | NOT RATED |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A97 TAPER |
| GAP OPENING STYLE | B1 |
| END STYLE | C7 D SHAPE ABOVE INSIDE PERIPHERY |
| INSIDE DIAMETER | 1.670 INCHES NOMINAL |

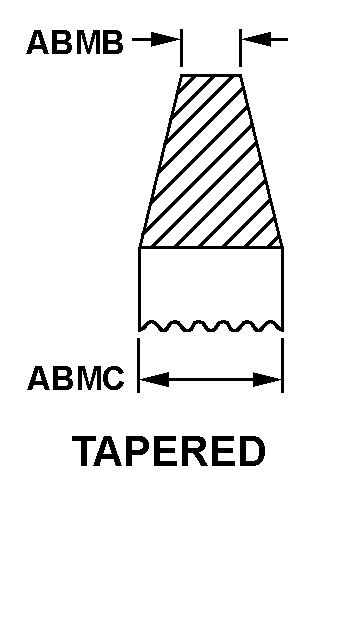

| CROSS-SECTIONAL SHAPE STYLE | D20 TAPERED |
| MINOR THICKNESS | ANY ACCEPTABLE |
| MAJOR THICKNESS | 0.100 INCHES NOMINAL |
| USAGE DESIGN | INTERNAL |
| SPECIAL FEATURES | 0.100 IN. TAPERED AT 2 DEG 30 MINUTES |
| MANUFACTURERS CODE | 59211 |
| DESIGN CONTROL REFERENCE | 716-058-001 |
Restrictions/Controls & Freight Information | NSN 5325-00-343-4104
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013120 | ALUMINUM ARTICLE NOI SUB 6 |
| Less than car load rating | ||
| Less than truck load rating | J | 100.2 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
