Product Details | TURNLOCK FASTENER ASSEMBLY
5325-00-349-8554 An item consisting of a STUD, TURNLOCK FASTENER or a STUD ASSEMBLY, TURNLOCK FASTENER and a RECEPTACLE, TURNLOCK FASTENER. It is designed to provide a means for securely locking two items together and allow for quick locking or unlocking action.
Part Alternates: 4161412, 41614-12, 580R869H12, 6741FSS25287, 6741FSS2528-7, 5325-00-349-8554, 00-349-8554, 5325003498554, 003498554
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAR 1971 | 00-349-8554 | 61968 ( FASTENER ASSEMBLY, TURNLOCK ) |
Drawings & Photos | NSN 5325-00-349-8554
Demand History | NSN 5325-00-349-8554
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-349-8554 | 2020-02-41 | 40 | US |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-349-8554
Technical Data | NSN 5325-00-349-8554
| Characteristic | Specifications |
|---|---|
| TURNLOCK STUD SHANK STYLE | 14 STUD SHANK |
| GRIP LENGTH | 0.586 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.332 INCHES NOMINAL |
| TURNLOCK STUD HEAD STYLE | 19 STUD HEAD |
| EXTENDED WASHER DIAMETER | 0.500 INCHES NOMINAL |
| WIDTH ACROSS FLATS | 0.188 INCHES NOMINAL |
| STUD HEAD HEIGHT | 0.516 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 21 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.828 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.500 INCHES NOMINAL |
| EYELET LENGTH | 0.516 INCHES NOMINAL |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.225-28 UNF |

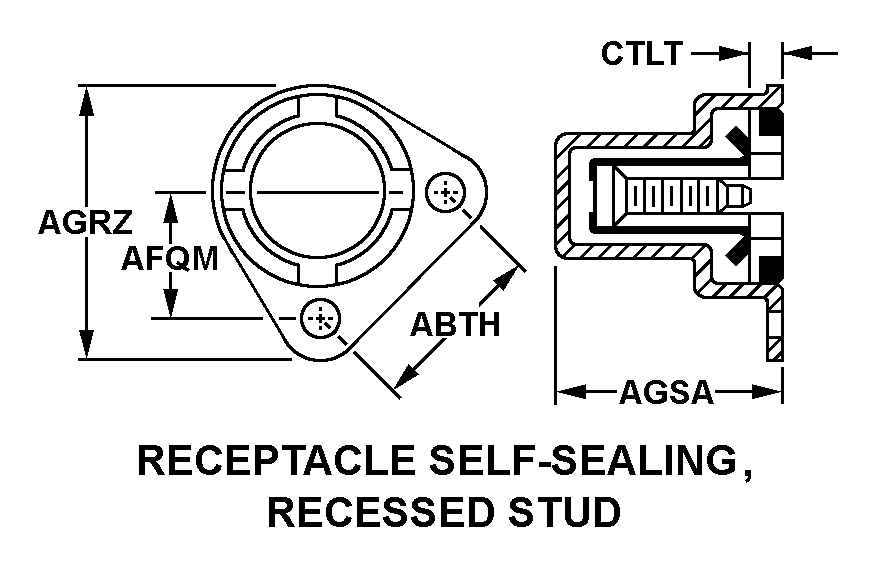

| TURNLOCK RECEPTACLE STYLE | 54 RECEPTACLE SELF SEALING, RECESSED STUD |
| RECEPTACLE HEIGHT | 0.828 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
