NSN 5325-00-365-0131 CA2055, 00-365-0131, 003650131
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-365-0131 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: CA2055, 5325-00-365-0131, 00-365-0131, 5325003650131, 003650131
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 FEB 1974 | 00-365-0131 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

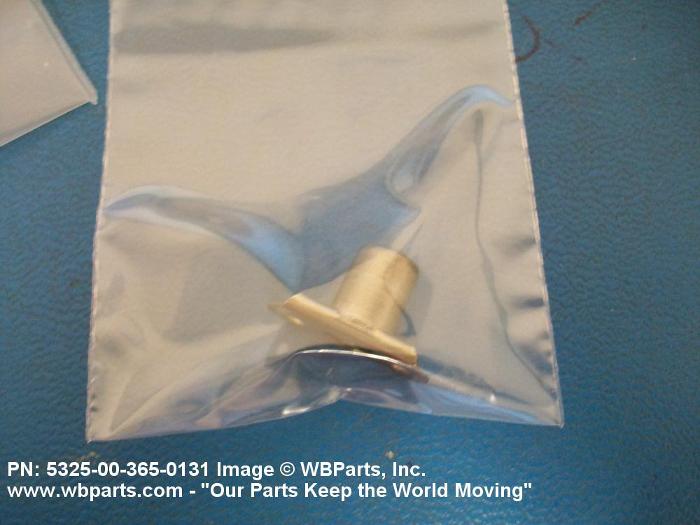

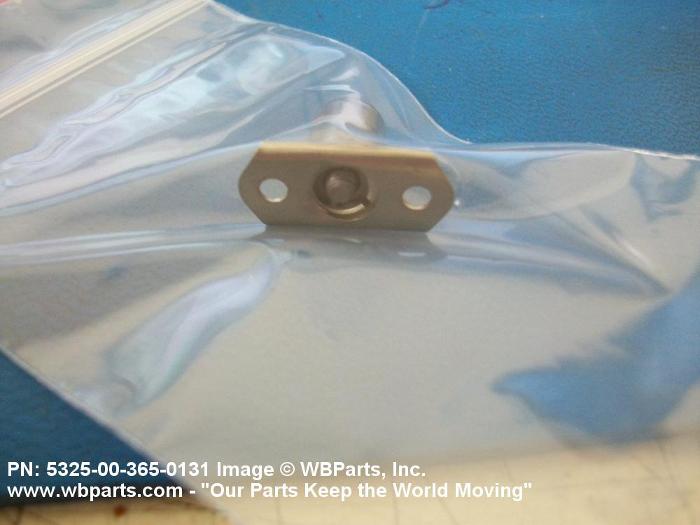

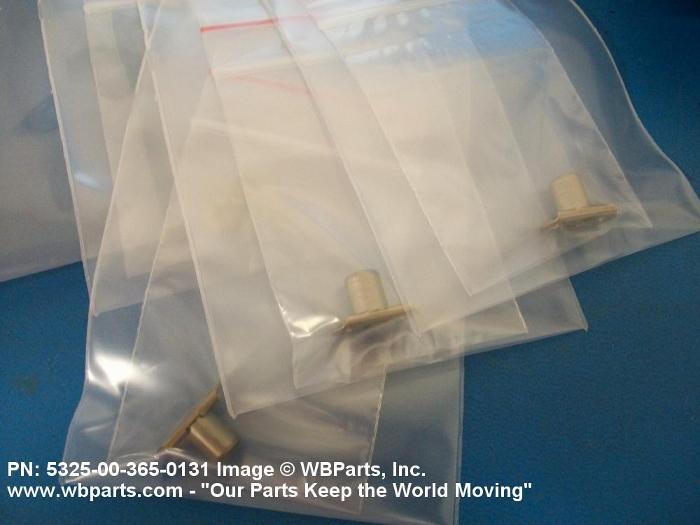

Drawings & Photos | NSN 5325-00-365-0131
Demand History | NSN 5325-00-365-0131
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-365-0131 | 2023-03-83 | 100 | US |
| CA2055 | 2022-11-333 | 8 | DIBBS |
| CA2055 | 2022-06-172 | 4 | DIBBS |
| 5325-00-365-0131 | 2021-05-137 | 200 | US |
| 5325-00-365-0131 | 2019-10-303 | 225 | United States |
| 5325-00-365-0131 | 2018-04-95 | 10 | DIBBS |
| 5325-00-365-0131 | 2017-04-117 | 5 | DIBBS |
| 5325-00-365-0131 | 2017-04-100 | 2 | DIBBS |
| 5325-00-365-0131 | 2014-10-293 | 60 | US |
| CA2055 | 2012-06-177 | 195 | US |
| 5325-00-365-0131 | 2011-07-201 | 10 | United States |
| 5325-00-365-0131 | 2010-10-275 | 1 | DIBBS |
| 5325-00-365-0131 | 2010-08-240 | 1 | DIBBS |
| CA2055 | 2010-08-224 | 1 | US |
| 5325-00-365-0131 | 2009-05-124 | 24 | United States |
| CA2055 | 2008-06-176 | 100 | US |
| 5325-00-365-0131 | 2008-03-79 | 500 | United States |
Cross Reference | NSN 5325-00-365-0131
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CA2055 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-365-0131
Related Products | NSN 5325-00-365-0131
Technical Data | NSN 5325-00-365-0131
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 302 OR STEEL COMP 303 OR STEEL COMP 316 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A582 ASSN STD SINGLE MATERIAL RESPONSE RECEPTACLE AMS 5735 A286 ASSN STD SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK RECEPTACLE STYLE | 33 RECEPTACLE |
| CENTER TO CENTER DISTANCE BETWEEN MOUNTING HOLES | 0.500 INCHES NOMINAL |
| RECEPTACLE OVERALL LENGTH | 0.750 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.465 INCHES NOMINAL |
| RECEPTACLE WIDTH | 0.330 INCHES NOMINAL |
| MOUNTING STYLE | 2 PLAIN W/MOUNTING HOLE |
| TURNLOCK MOUNTING HOLE DIAMETER | 0.098 INCHES MINIMUM AND 0.103 INCHES MAXIMUM |
| MANUFACTURERS CODE | 29372 |
| DESIGN CONTROL REFERENCE | CA2055 |
Restrictions/Controls & Freight Information | NSN 5325-00-365-0131
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-365-0131
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
