NSN 5325-00-462-3594 C 3747 636 -B, C37476360B, C3747636B
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-462-3594 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: C 3747 636 -B, C37476360B, C3747636B, ST44502, 5L374100602, 5L3741-006-02, 6862091, 9321329, 12R11BB, 12R1-1BB, 1421770001, 142177-0001, 15053301, 150533-01, 3409831, 5019137C, 5325-00-462-3594, 00-462-3594, 5325004623594, 004623594
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 MAY 1969 | 00-462-3594 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

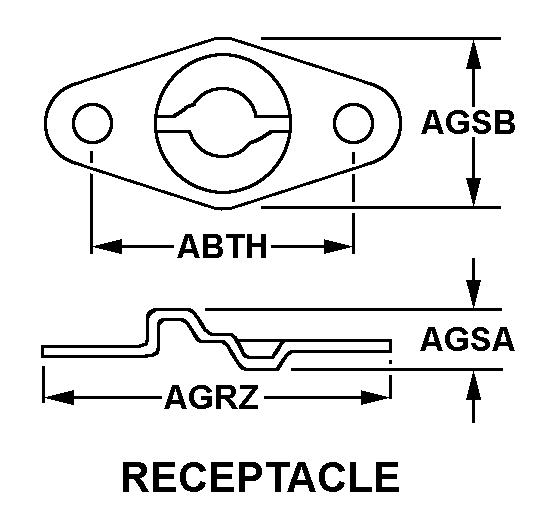

Drawings & Photos | NSN 5325-00-462-3594
Demand History | NSN 5325-00-462-3594
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 12R1-1BB | 2020-10-297 | 388 | DIBBS |
| 12R1-1BB | 2020-10-287 | 388 | DIBBS |
| 12R11BB | 2010-04-97 | 48 | US |
| 5325-00-462-3594 | 2006-07-188 | 1000 | US |
Cross Reference | NSN 5325-00-462-3594
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 12R1-1BB | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 12R1-1BB | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 142177-0001 | 19397 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| 150533-01 | 35351 | GE AVIATION SYSTEMS LLC |
| 3409831 | K0680 | ROLLS-ROYCE AIRLINES |
| 5019137C | K0967 | MBDA UK LTD |
| 5L3741-006-02 | D1901 | AIRBUS DEFENCE AND SPACE GMBH DIV SEPS |
| 6862091 | 73342 | ALLISON TRANSMISSION, INC. |
| 6862091 | K0680 | ROLLS-ROYCE AIRLINES |
| 9321329 | 19203 | PICATINNY ARSENAL |
| C 3747 636 -B | C2463 | RHEINMETALL SOLDIER ELECTRONICS GMB |
| C 3747 636 -B | S3092 | RHEINMETALL AIR DEFENCE AG |
| C37476360B | C2463 | RHEINMETALL SOLDIER ELECTRONICS GMB |
| C37476360B | S3092 | RHEINMETALL AIR DEFENCE AG |
| ST44502 | K0967 | MBDA UK LTD |
