NSN 5325-00-484-8986 CPD7900F10B3, DCT7900P10FB3, DCT7900P-10F-B-3
Product Details | TURNLOCK FASTENER STUD ASSEMBLY
5325-00-484-8986 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: CPD7900F10B3, DCT7900P10FB3, DCT7900P-10F-B-3, 5325-00-484-8986, 00-484-8986, 5325004848986, 004848986
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 14 JUN 1974 | 00-484-8986 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

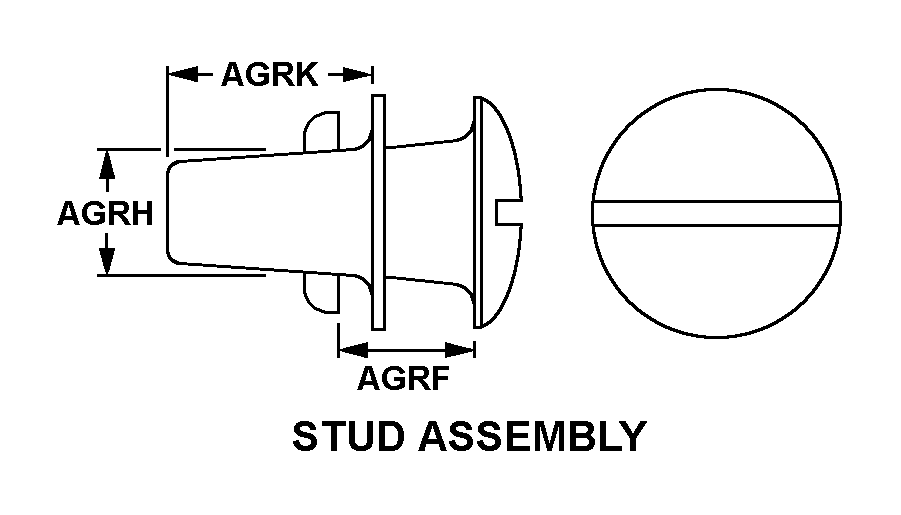

Drawings & Photos | NSN 5325-00-484-8986
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-484-8986
Technical Data | NSN 5325-00-484-8986
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY EYELET |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-225/8 FED SPEC SINGLE MATERIAL RESPONSE EYELET ASTM-A-493 ASSN STD SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | ANODIZE EYELET PASSIVATE STUD |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE EYELET QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STUD |
| TURNLOCK STUD HEAD STYLE | 2 FILLISTER |
| DIAMETER | 0.365 INCHES NOMINAL |
| STUD ASSEMBLY STYLE | 5 STUD ASSEMBLY |
| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.335 INCHES NOMINAL |
| EYELET OUTSIDE DIAMETER | 0.250 INCHES NOMINAL |
| EYELET LENGTH | 0.147 INCHES NOMINAL |
| STUD THREAD SIZE AND SERIES/TYPE DESIGNATOR | 0.190-32 UNF |
| SECURING DEVICE TYPE | WASHER |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 97928 |
| DESIGN CONTROL REFERENCE | DCT7900P-10F-B-3 |
Restrictions/Controls & Freight Information | NSN 5325-00-484-8986
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-484-8986
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
