NSN 5325-00-584-6639 B3501011C, C 3747 607 -B, C37476070B
Product Details | TURNLOCK FASTENER STUD ASSEMBLY

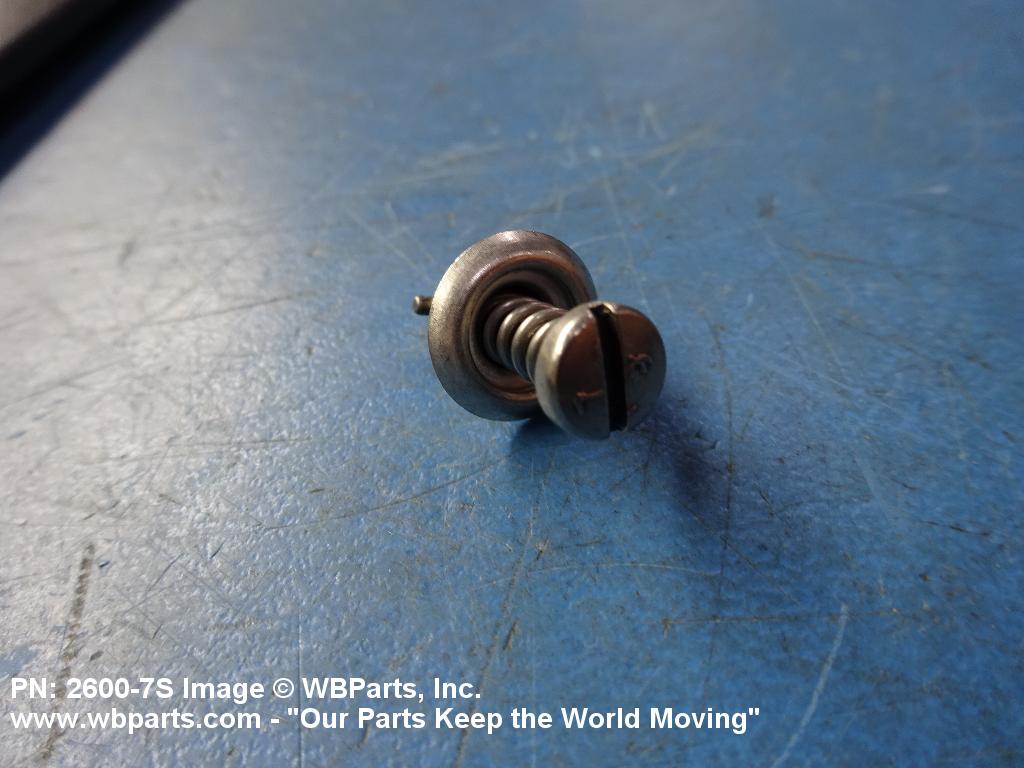

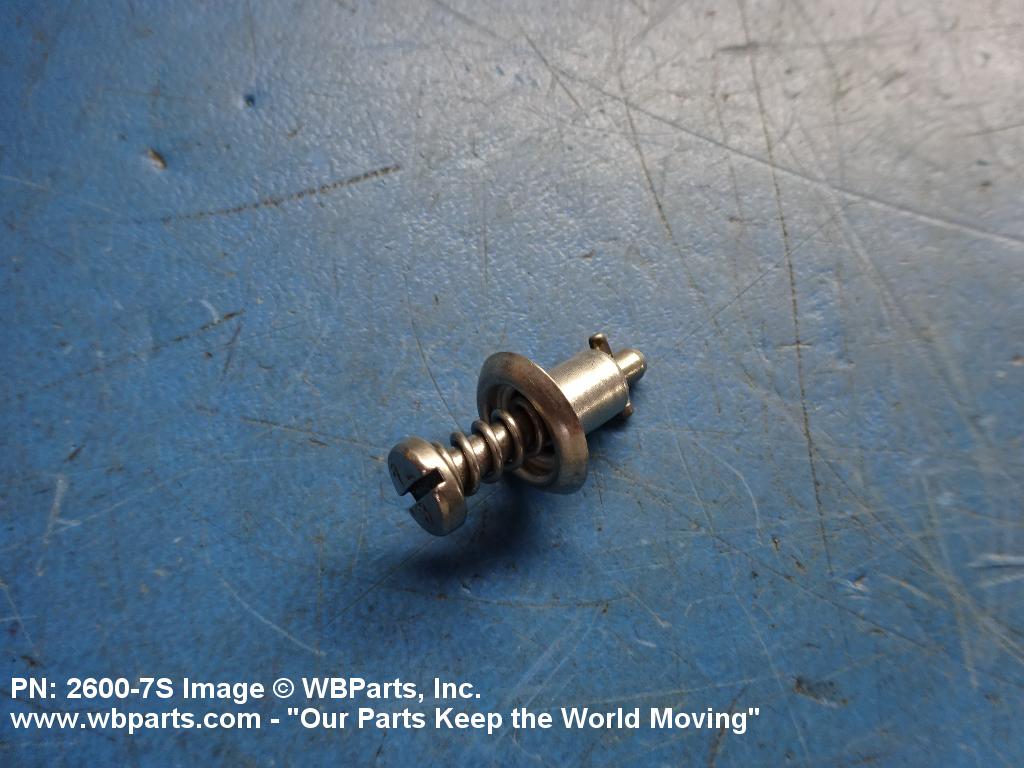

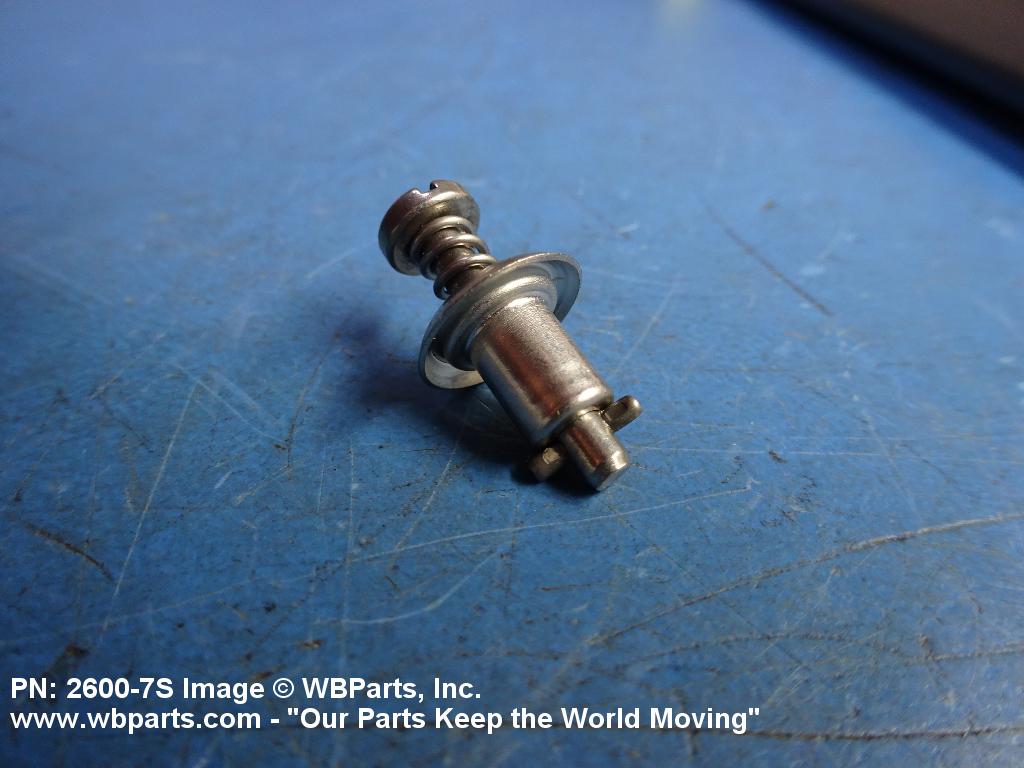

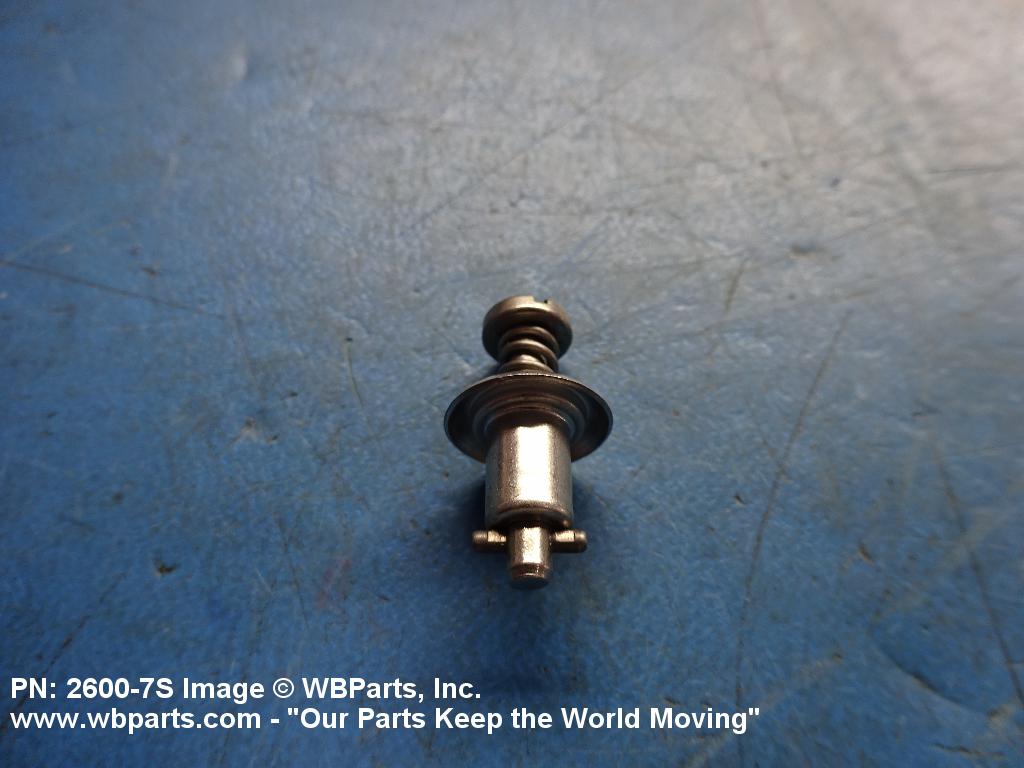

5325-00-584-6639 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: B3501011C, C 3747 607 -B, C37476070B, C3747607B, L2138044792, L21380-44792, 1280044011, 128-0044-011, 26007S, 2600-7S, 504072, 8526876, 5325-00-584-6639, 00-584-6639, 5325005846639, 005846639
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-6639 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |
Drawings & Photos | NSN 5325-00-584-6639
Demand History | NSN 5325-00-584-6639
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 26007S | 2022-10-291 | 55 | United States |
| 26007S | 2022-10-291 | 75 | United States |
| 26007S | 2022-08-213 | 25 | United States |
| 5325-00-584-6639 | 2019-05-147 | 30 | India |
| 26007S | 2018-04-115 | 50 | United States |
| 26007S | 2014-08-219 | 1 | Canada |
| 26007S | 2012-03-83 | 50 | South Korea |
| 5325-00-584-6639 | 2008-06-172 | 20 | us |
| 5325-00-584-6639 | 2006-05-145 | 10 | United States |
Cross Reference | NSN 5325-00-584-6639
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 128-0044-011 | 94756 | BOEING COMPANY, THE DBA BOEING |
| 2600-7S | 71286 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 2600-7S | D0680 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - CAMLOC |
| 2600-7S | F0224 | ALCOA FIXATIONS SIMMONDS SAS |
| 2600-7S | K1678 | FAIRCHILD FASTENERS UK LTD |
| 504072 | 29372 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| 504072 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 8526876 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| B3501011C | K1447 | VT SHIPSBUILDING LTD |
| B3501011C | K4944 | BAE SYSTEMS SURFACE SHIPS LIMITED |
| C 3747 607 -B | C2463 | RHEINMETALL SOLDIER ELECTRONICS GMB |
| C 3747 607 -B | S3092 | RHEINMETALL AIR DEFENCE AG |
| C37476070B | C2463 | RHEINMETALL SOLDIER ELECTRONICS GMB |
| C37476070B | S3092 | RHEINMETALL AIR DEFENCE AG |
| L21380-44792 | K1096 | THALES UNDERWATER SYSTEMS UK |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-584-6639
Related Products | NSN 5325-00-584-6639
Technical Data | NSN 5325-00-584-6639
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| TURNLOCK STUD HEAD STYLE | 3 FLAT FILLISTER |

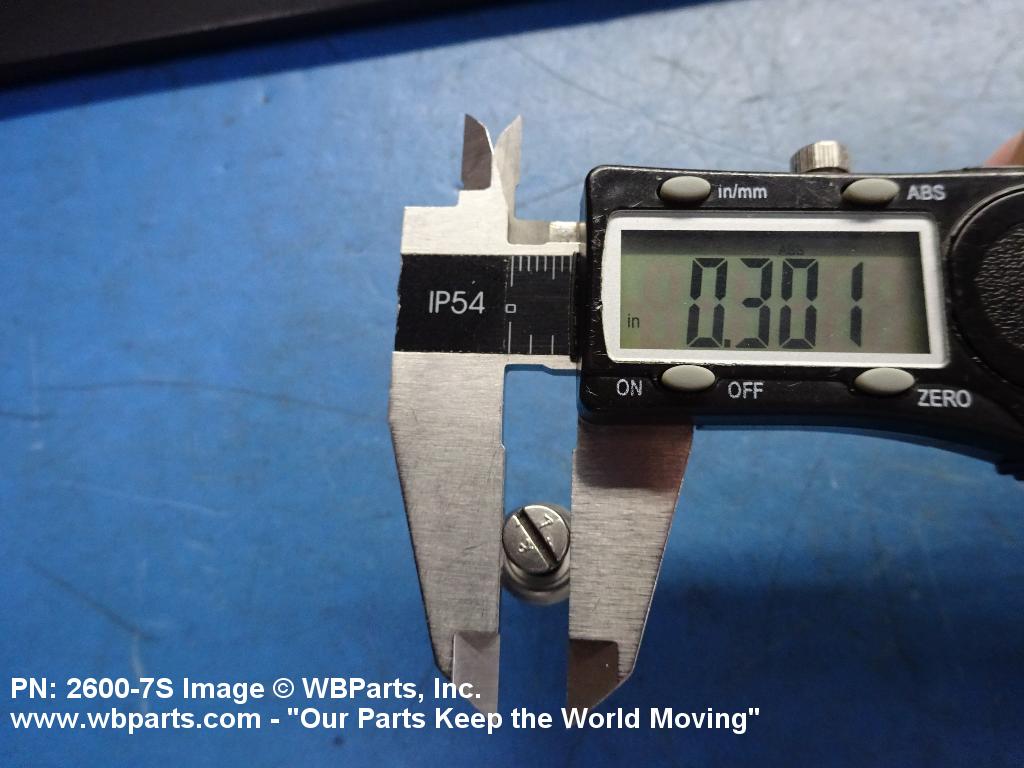

| DIAMETER | 0.298 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |

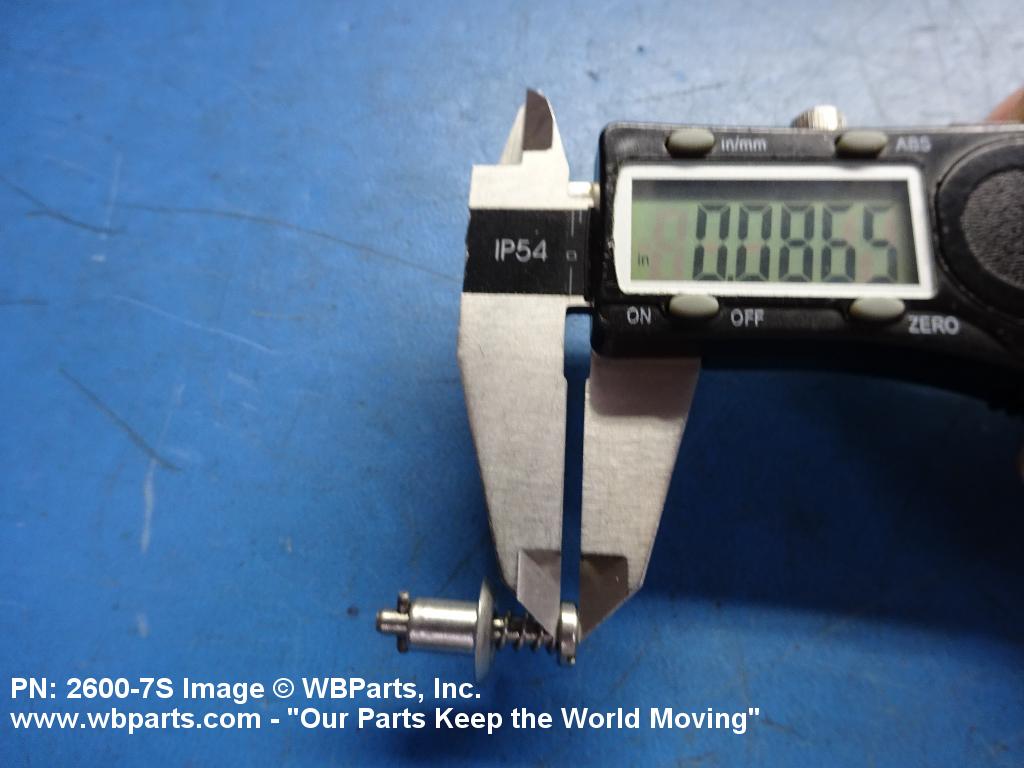

| STUD HEAD HEIGHT | 0.088 INCHES MINIMUM AND 0.098 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |

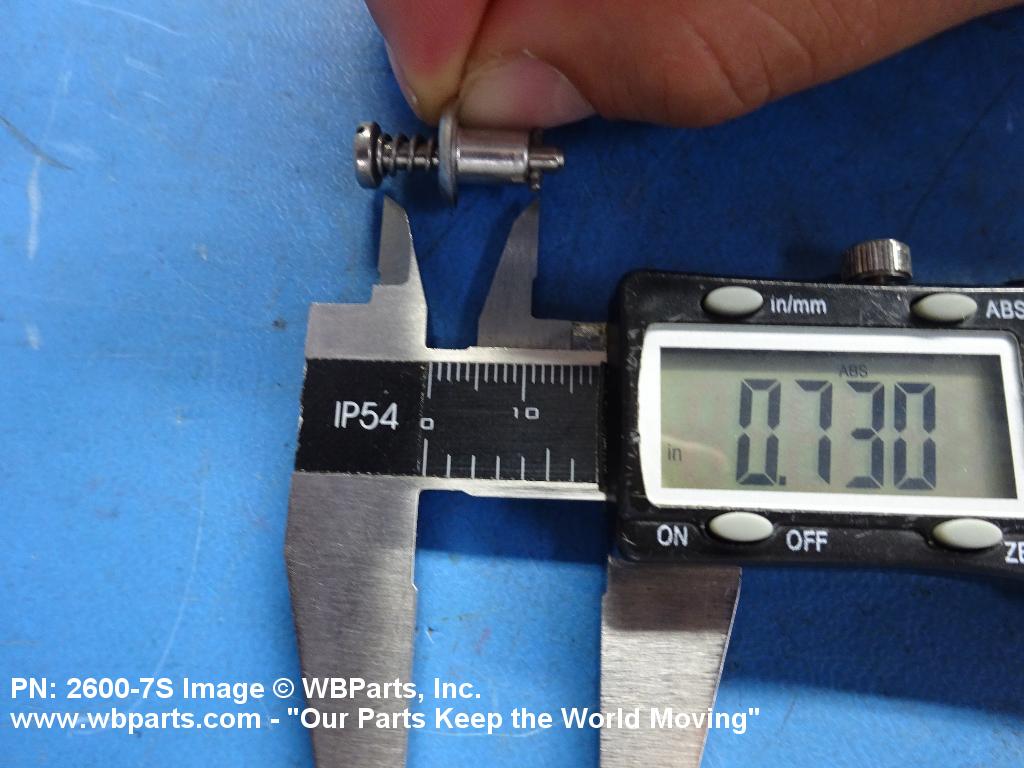

| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.722 INCHES MINIMUM AND 0.737 INCHES MAXIMUM |

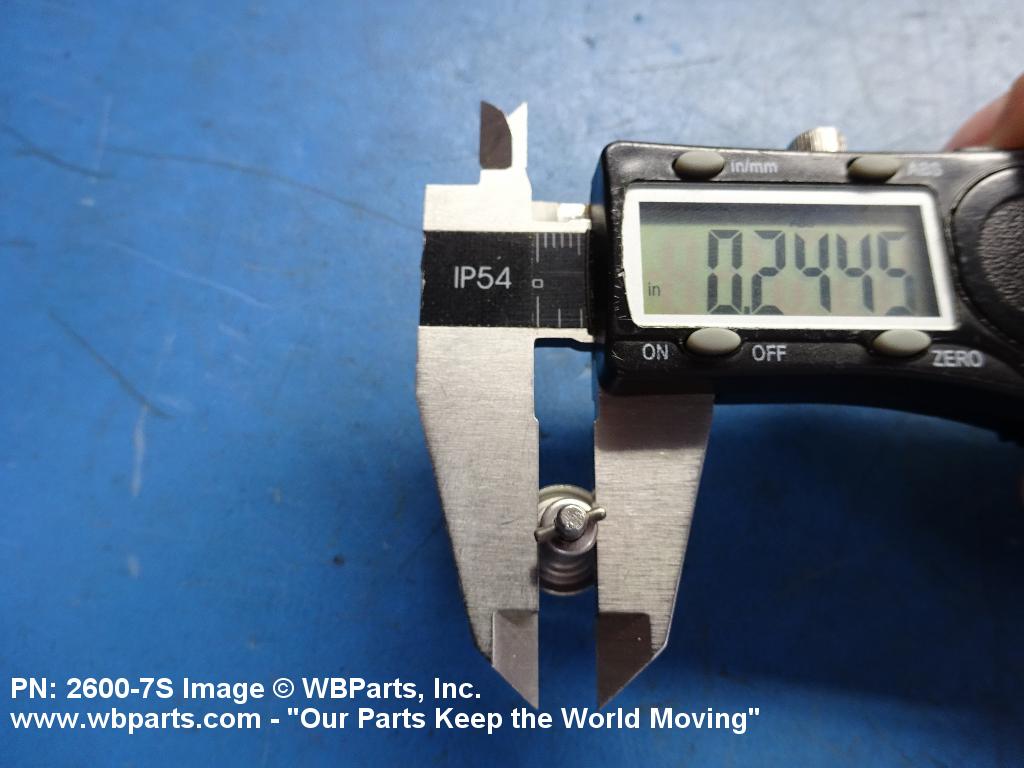

| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |

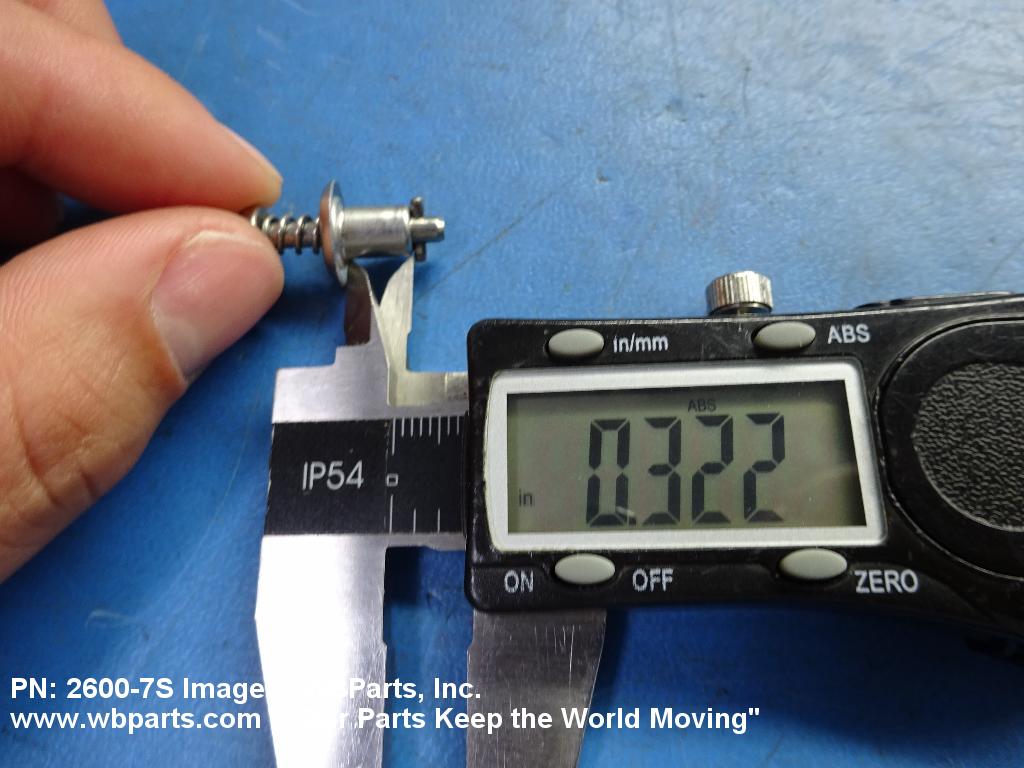

| EYELET LENGTH | 0.322 INCHES NOMINAL |
