NSN 5325-00-584-9972 FS10922, FS1092-2, 1126010-13
Product Details | TURNLOCK FASTENER STUD ASSEMBLY

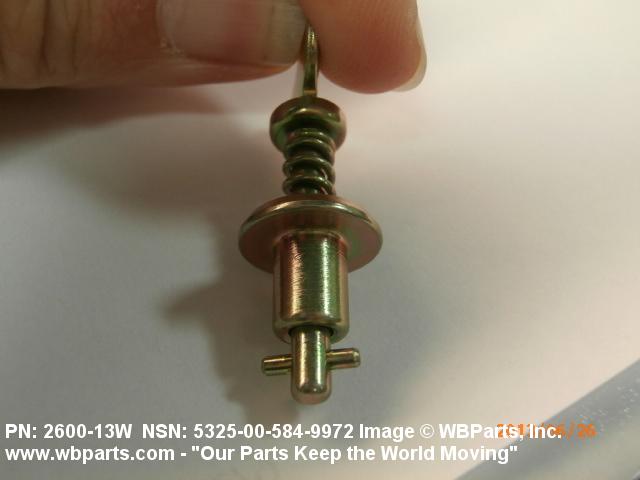

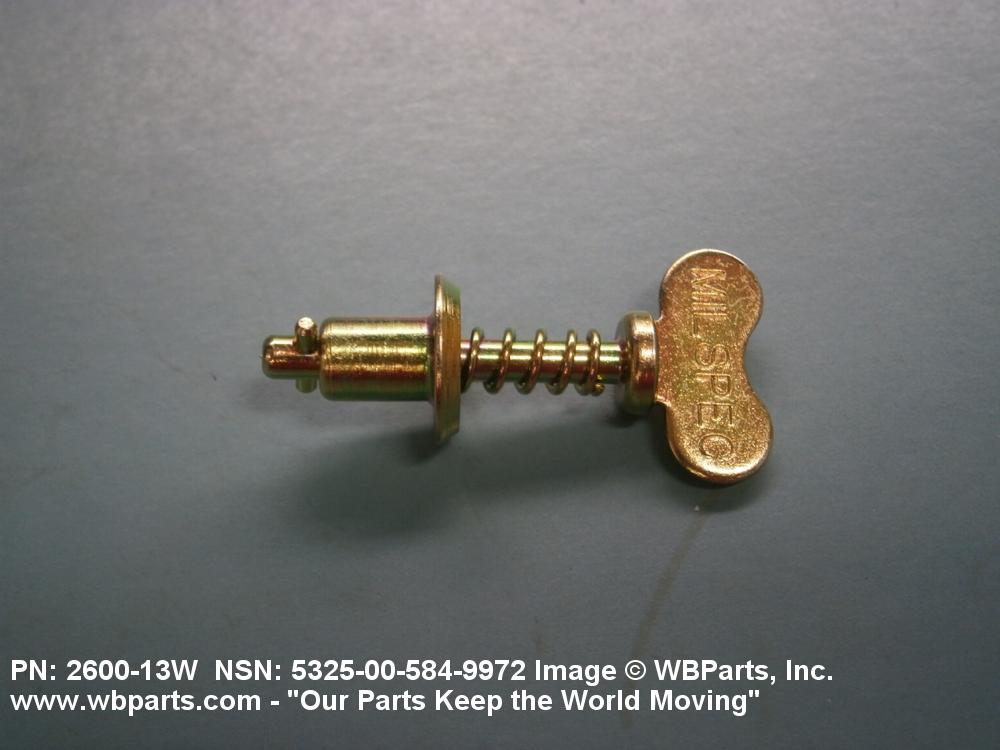

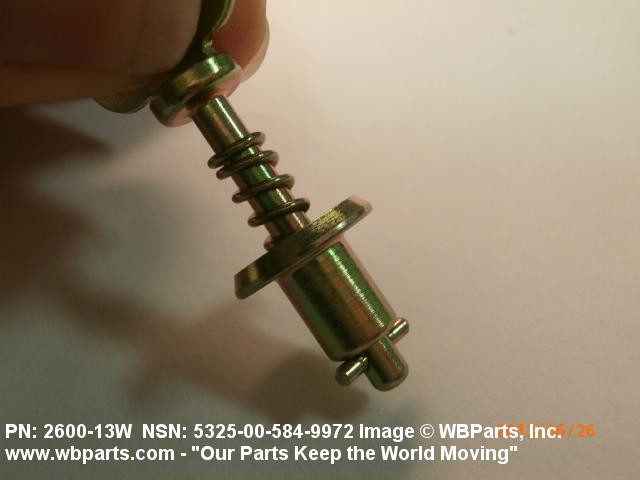

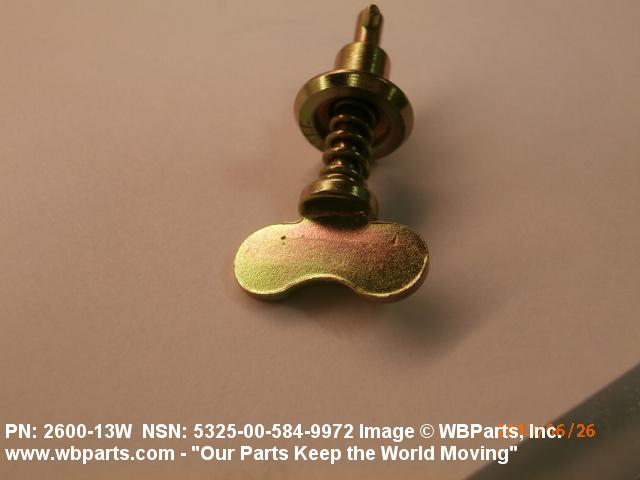

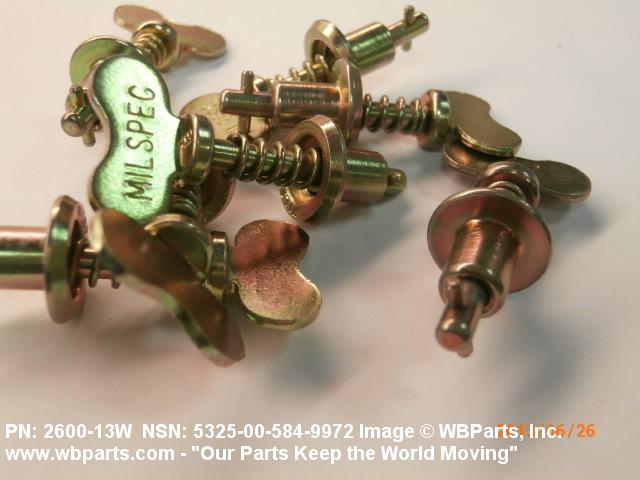

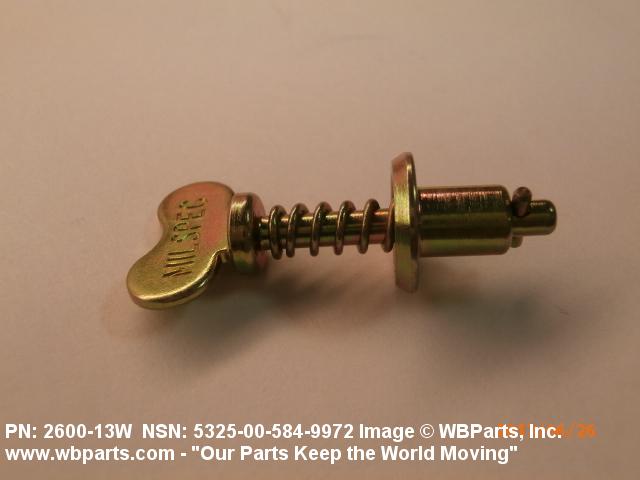

5325-00-584-9972 A STUD, TURNLOCK FASTENER over which may be assembled an EYELET, TURNLOCK FASTENER. Stud(s) without cam slots or cam lead threads are provided with a crosspin or eared nut for locking with the mating RECEPTACLE, TURNLOCK FASTENER. May be spring loaded. For like items having a threaded fastener, see SCREW ASSEMBLY, PANEL or SCREW, PANEL FASTENER.
Part Alternates: FS10922, FS1092-2, 1126010-13, 260013W, 2600-13W, 5325-00-584-9972, 00-584-9972, 5325005849972, 112601013, 005849972
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-584-9972 | 18484 ( STUD ASSEMBLY, TURNLOCK FASTENER ) |

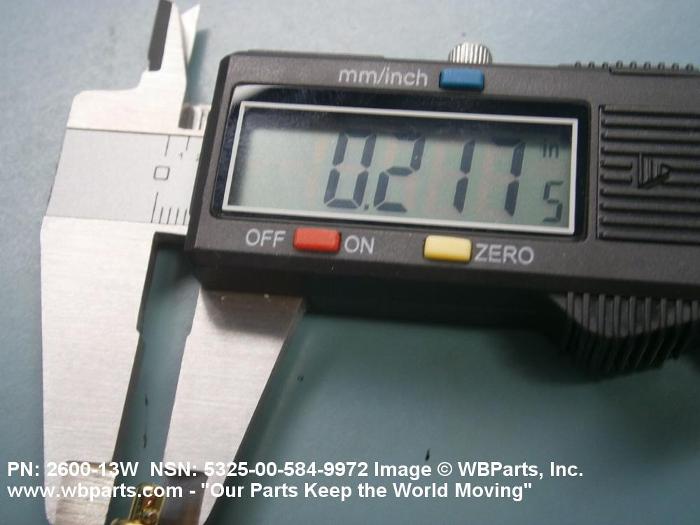

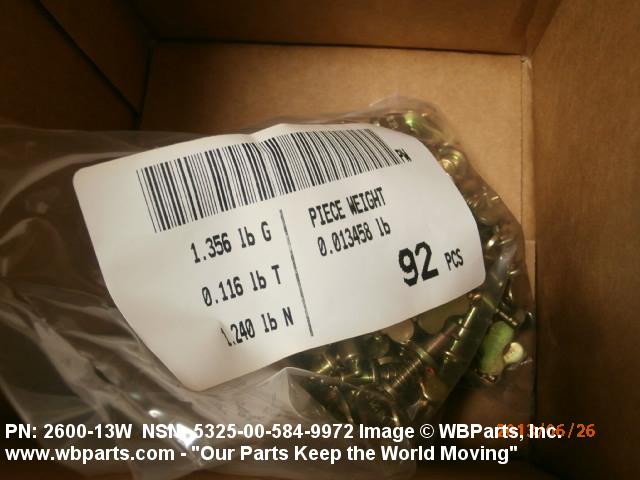

Drawings & Photos | NSN 5325-00-584-9972
Demand History | NSN 5325-00-584-9972
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 1126010-13 | 2023-03-90 | 526 | DIBBS |
| 2600-13W | 2023-03-90 | 526 | DIBBS |
| 1126010-13 | 2023-03-82 | 526 | DIBBS |
| 2600-13W | 2023-03-82 | 526 | DIBBS |
| 1126010-13 | 2022-12-340 | 371 | DIBBS |
| 2600-13W | 2022-12-340 | 371 | DIBBS |
| 1126010-13 | 2022-11-332 | 371 | DIBBS |
| 2600-13W | 2022-11-332 | 371 | DIBBS |
| 1126010-13 | 2022-10-304 | 155 | DIBBS |
| 2600-13W | 2022-10-304 | 155 | DIBBS |
| 1126010-13 | 2022-10-291 | 155 | DIBBS |
| 2600-13W | 2022-10-291 | 155 | DIBBS |
| 5325-00-584-9972 | 2017-01-24 | 541 | DIBBS |
| 5325-00-584-9972 | 2017-01-16 | 541 | DIBBS |
| 260013W | 2013-05-127 | 60 | United States |
| 260013W | 2013-05-127 | 100 | United States |
| 260013W | 2013-05-127 | 250 | United States |
| 260013W | 2013-05-127 | 500 | United States |
| 260013W | 2013-05-121 | 1 | United States |
| 260013W | 2013-05-121 | 20 | United States |
| 260013W | 2013-05-121 | 30 | United States |
| 260013W | 2013-01-15 | 12 | United States |
| 5325-00-584-9972 | 2010-01-12 | 1000 | DIBBS |
| 5325-00-584-9972 | 2009-05-151 | 828 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-584-9972
Related Products | NSN 5325-00-584-9972
Technical Data | NSN 5325-00-584-9972
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL EJECTOR SPRING STEEL COMP 1009 EYELET STEEL PIN STEEL COMP 4037 STUD |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE EJECTOR SPRING ASTM A109 ASSN STD SINGLE MATERIAL RESPONSE EYELET QQ-W-470 FED SPEC SINGLE MATERIAL RESPONSE PIN ASTM A547 ASSN STD SINGLE MATERIAL RESPONSE STUD |
| SURFACE TREATMENT | CADMIUM AND CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,CL 2,TY 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |

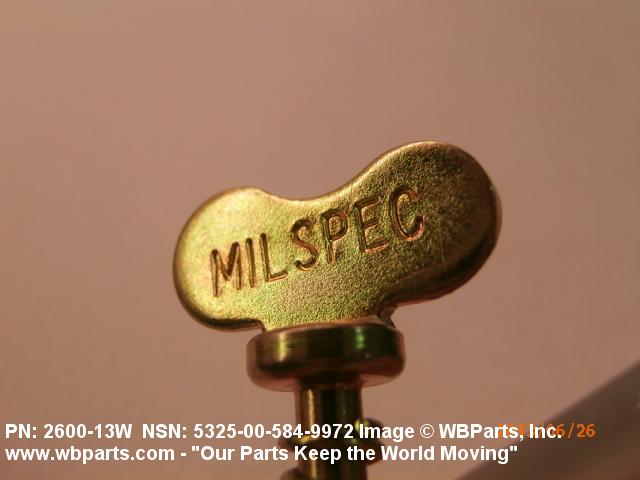

| TURNLOCK STUD HEAD STYLE | 11 FLAT FILLISTER WING |

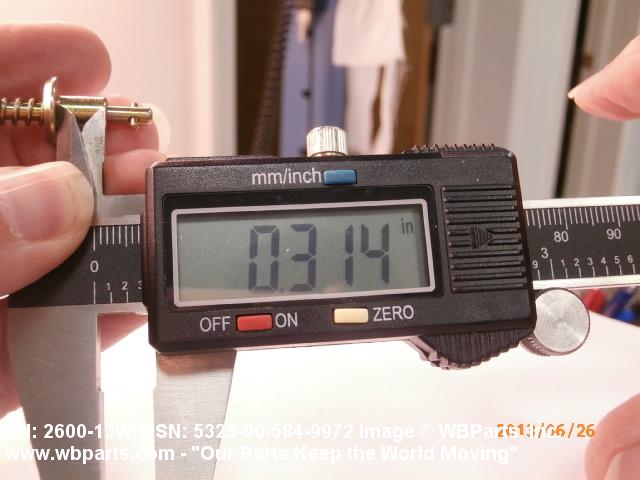

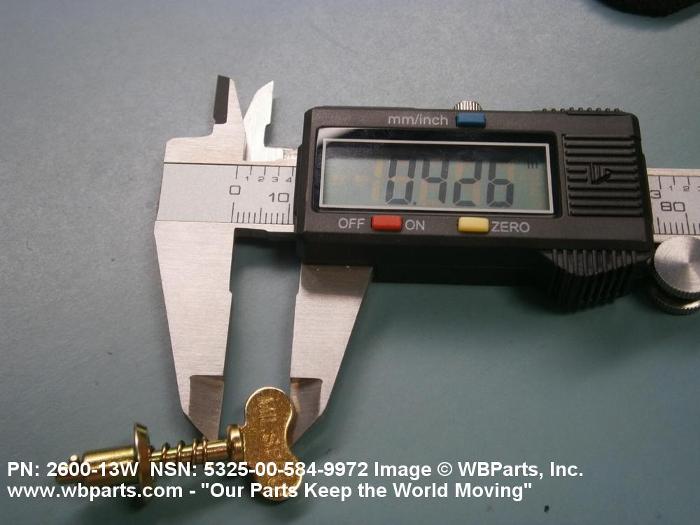

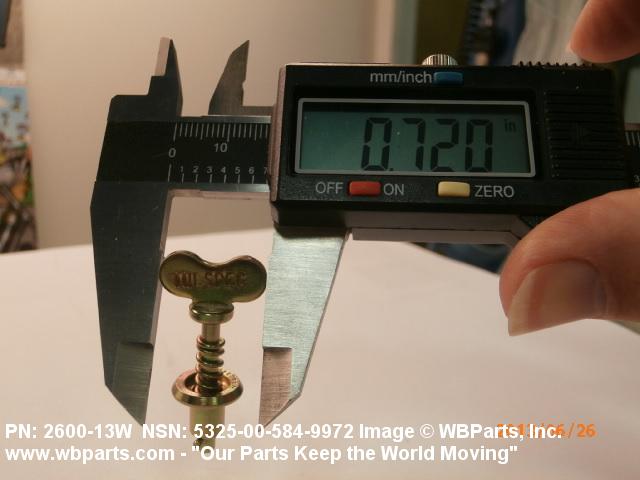

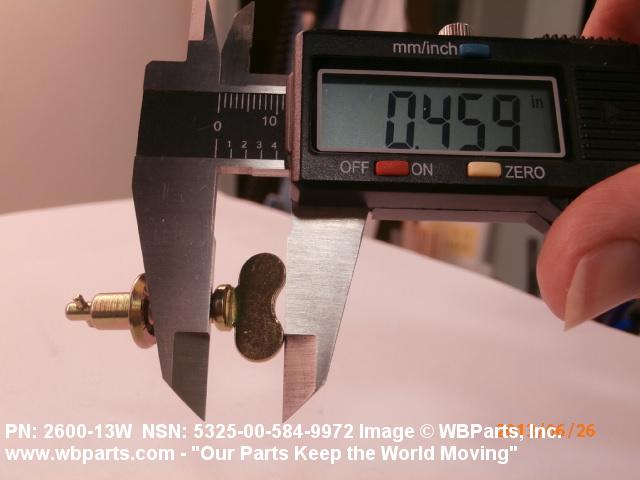

| HEAD LENGTH | 0.700 INCHES MINIMUM AND 0.740 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.420 INCHES MINIMUM AND 0.460 INCHES MAXIMUM |
| STUD ASSEMBLY STYLE | 7 STUD ASSEMBLY |

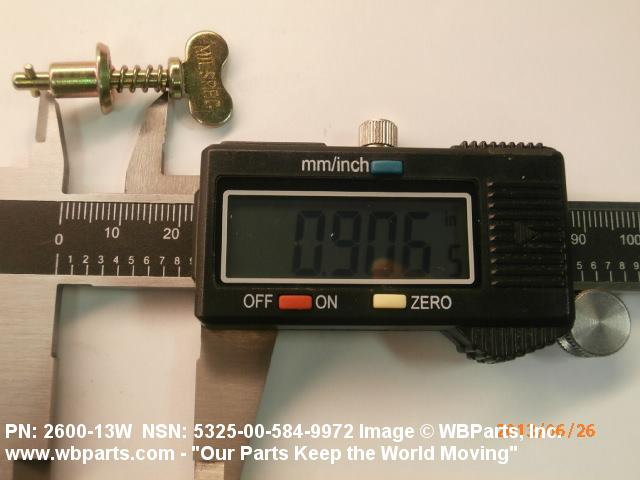

| DISTANCE FROM ENGAGING MEMBER TO LARGEST BEARING SURFACE OF HEAD | 0.902 INCHES MINIMUM AND 0.917 INCHES MAXIMUM |

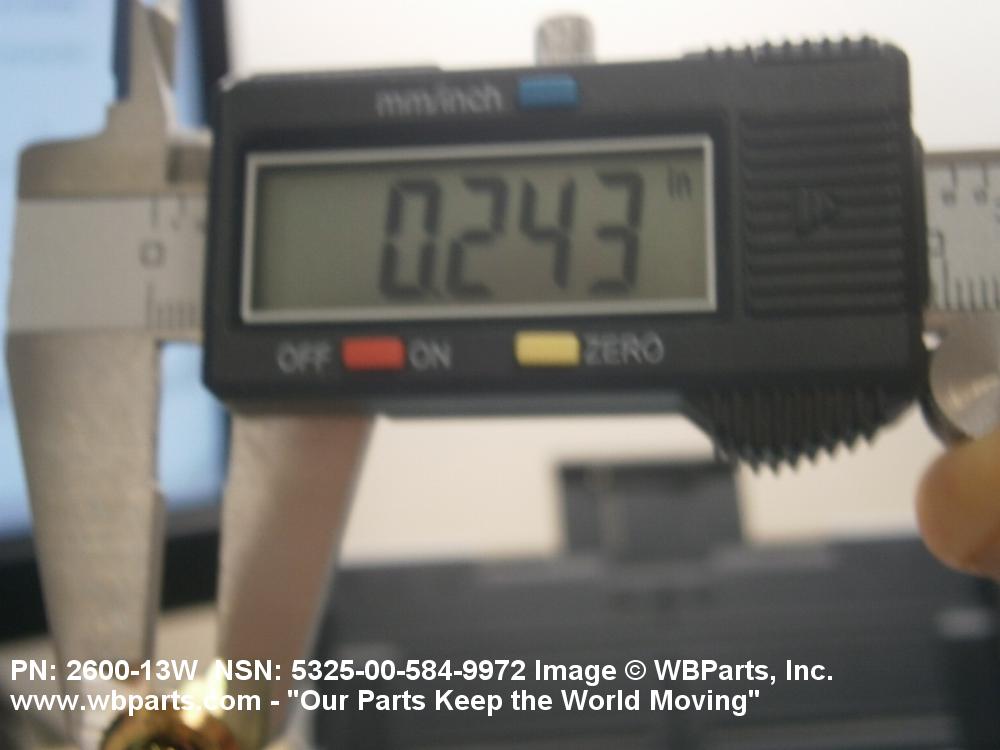

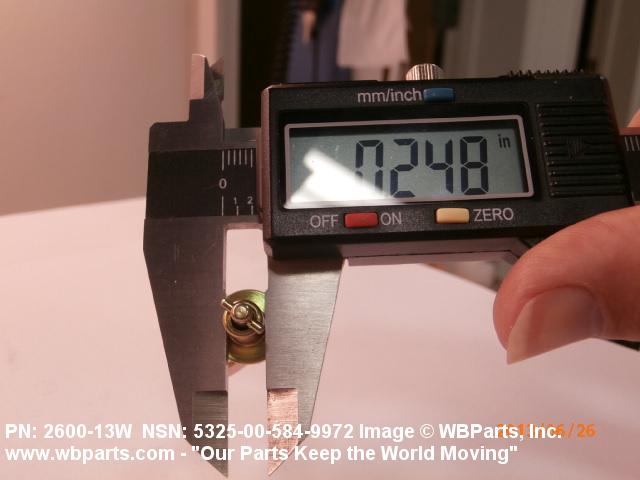

| EYELET OUTSIDE DIAMETER | 0.244 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EYELET LENGTH | 0.322 INCHES NOMINAL |
| MATERIAL ACCOMMODATED THICKNESS | 0.360 INCHES NOMINAL |
| MANUFACTURERS CODE | 71286 |
| DESIGN CONTROL REFERENCE | 2600-13W |
Restrictions/Controls & Freight Information | NSN 5325-00-584-9972
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 066440 | FASTENERS CURTAIN/SNAP METAL |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
