NSN 5325-00-591-5100 85-35-302-15, 00-591-5100, 853530215
Product Details | TURNLOCK FASTENER RECEPTACLE
5325-00-591-5100 A threaded or tempered item used to secure the STUD, TURNLOCK FASTENER or STUD ASSEMBLY, TURNLOCK FASTENER by engaging with the cross pin, cam lead threads, or eared nut of the STUD, TURNLOCK FASTENER and securing it by means of its thread locking or spring action.
Part Alternates: 85-35-302-15, 5325-00-591-5100, 00-591-5100, 5325005915100, 853530215, 005915100
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-591-5100 | 18485 ( RECEPTACLE, TURNLOCK FASTENER ) |

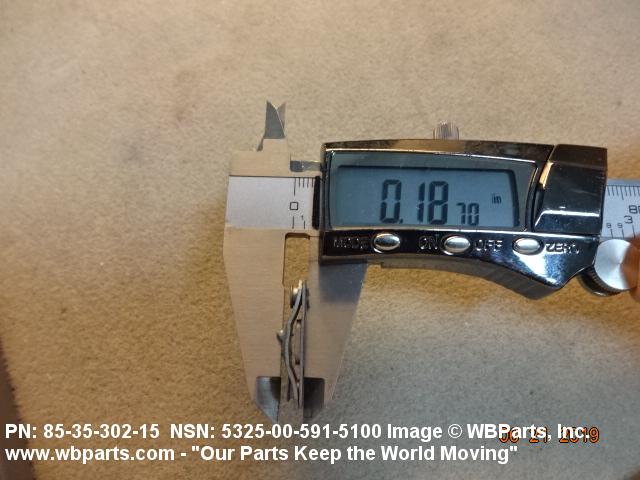

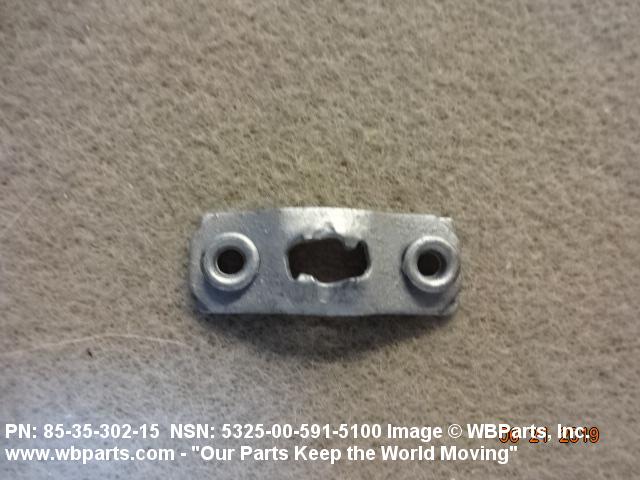

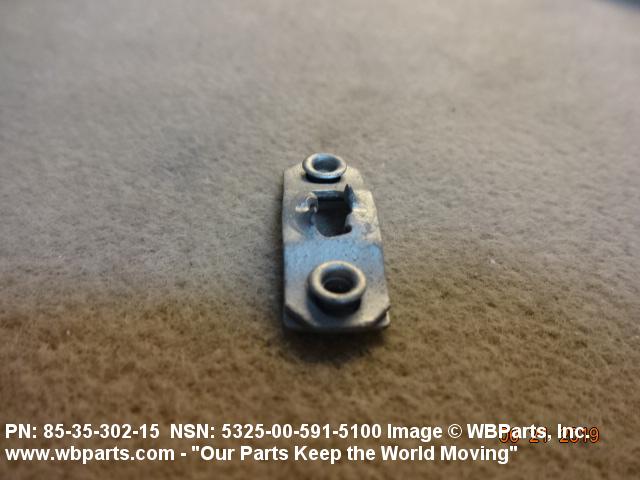

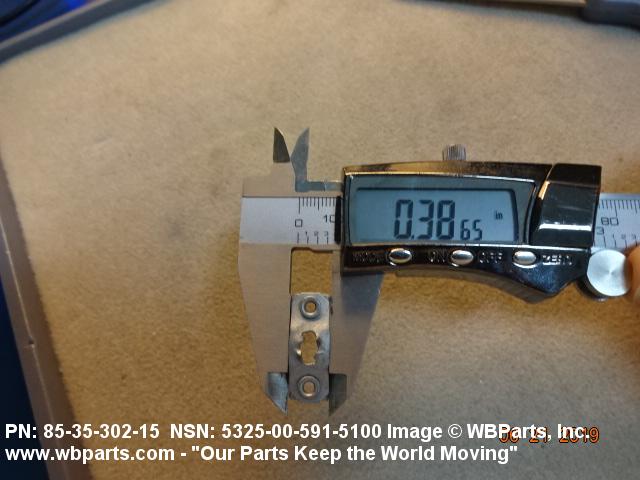

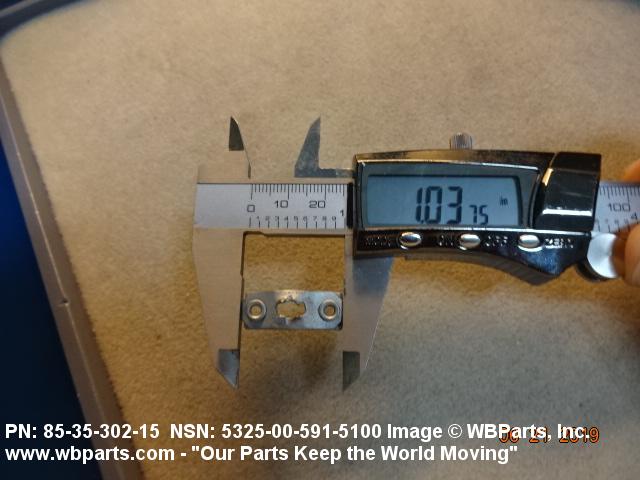

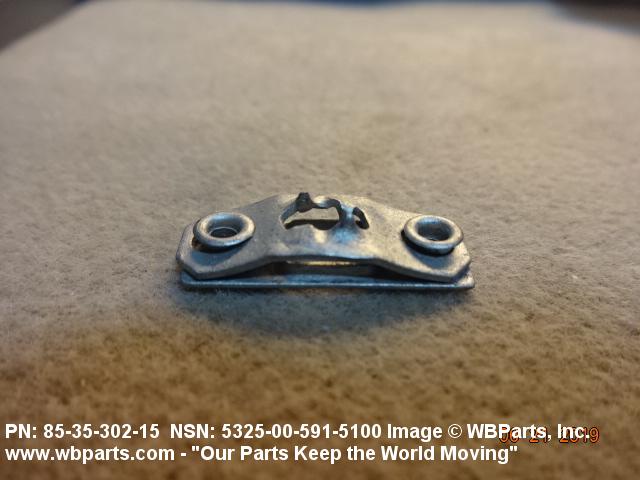

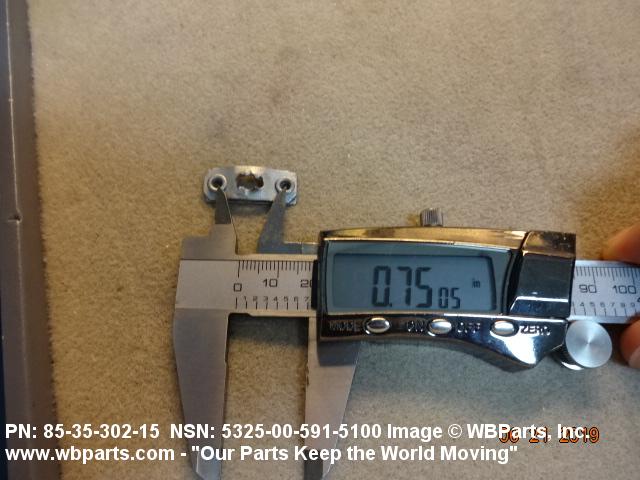

Drawings & Photos | NSN 5325-00-591-5100
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-591-5100
Technical Data | NSN 5325-00-591-5100
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL OVERALL |
| SURFACE TREATMENT | CADMIUM POST |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TY3 FED SPEC SINGLE TREATMENT RESPONSE POST |
| RECEPTACLE OVERALL LENGTH | 0.625 INCHES NOMINAL |
| RECEPTACLE HEIGHT | 0.703 INCHES NOMINAL |
| FEATURES PROVIDED | SEALING FEATURE |
| MANUFACTURERS CODE | 94222 |
| DESIGN CONTROL REFERENCE | 85-35-302-15 |
Restrictions/Controls & Freight Information | NSN 5325-00-591-5100
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
