NSN 5325-00-719-7057 C42524, C4252-4, G206061041
Product Details | TURNLOCK FASTENER STUD
5325-00-719-7057 A pinlike item designed to turn within and be held in place by an EYELET, TURNLOCK FASTENER; RING, RETAINING; or the surface of the item it fastens. It is provided with either a cam slot, cam lead threads, or a hold for accommodating a pin. Securing is accomplished by mating with a LOCKSPRING, TURNLOCK FASTENER or RECEPTACLE, TURNLOCK FASTENER. It has either provisions to accommodate a knob or extension or has a head which has provisions to facilitate turning.
Part Alternates: C42524, C4252-4, G206061041, G206-061-041, PF31241X545, PF3-1-2-41X545, PF3541, PF35-41, 117004-001, 1550123001, 155-0123-001, 350641C3C, 3506-41-C3C, 531900E995042, 531900E99504-2, 6560017914, 65600179-14, 5325-00-719-7057, 00-719-7057, 5325007197057, 117004001, 007197057
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-719-7057 | 18421 ( STUD, TURNLOCK FASTENER ) |

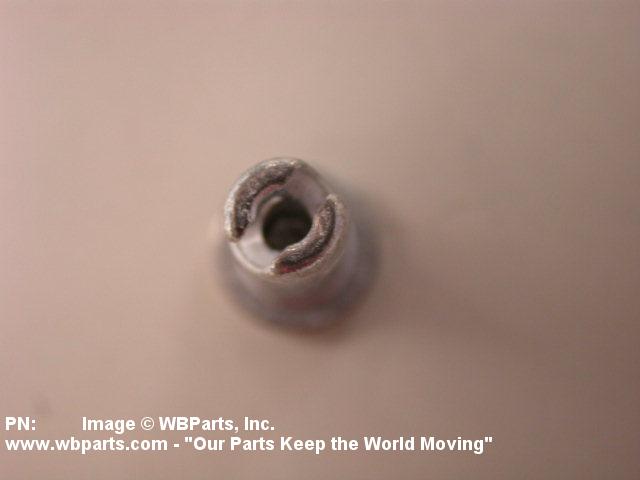

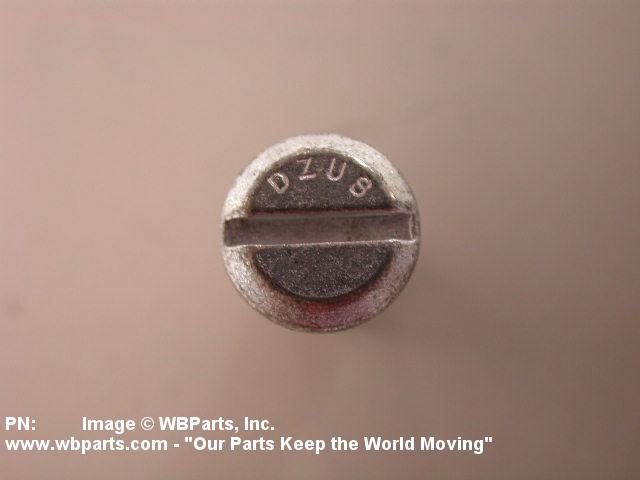

Drawings & Photos | NSN 5325-00-719-7057
Demand History | NSN 5325-00-719-7057
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5325-00-719-7057 | 2021-10-286 | 41 | United States |
| 531900E995042 | 2007-05-144 | 10 | United States |
| 531900E995042 | 2007-05-141 | 50 | United States |
Cross Reference | NSN 5325-00-719-7057
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 117004-001 | 81413 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION I |
| 155-0123-001 | 97871 | RAYTHEON COMPANY DBA RAYTHEON |
| 3506-41-C3C | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
| 531900E99504-2 | 89297 | NAVAL AIR WARFARE CENTER TRAINING SYSTEMS DIV |
| 65600179-14 | 22787 | PRECISION AEROSPACE CORPORATION DBA PRECISION ENGINE CONTROL |
| C4252-4 | 81755 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
| G206-061-041 | 0D0D0 | BAE SYSTEMS INFORMATION AND ELECTRONIC SYSTEMS INTEGRATION INC. |
| G206-061-041 | 88818 | KEARFOTT CORPORATION DBA KEARFOTT |
| PF3-1-2-41X545 | K1678 | FAIRCHILD FASTENERS UK LTD |
| PF35-41 | 72794 | SOUTHCO HONEOYE FALLS AEROSPACE FASTENERS DIVISION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-719-7057
Technical Data | NSN 5325-00-719-7057
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1118 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AISI ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TYPE I,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| TURNLOCK STUD SHANK STYLE | 2 STUD SHANK |
| GRIP LENGTH | 0.420 INCHES NOMINAL |
| STUD SHANK MAJOR DIAMETER | 0.213 INCHES MINIMUM AND 0.218 INCHES MAXIMUM |
| TURNLOCK STUD HEAD STYLE | 18 STUD HEAD |
| DIAMETER | 0.335 INCHES MINIMUM AND 0.340 INCHES MAXIMUM |
| STUD HEAD HEIGHT | 0.062 INCHES NOMINAL |
| DRIVE TYPE | SLOTTED |
| MATERIAL ACCOMMODATED THICKNESS | ANY ACCEPTABLE |
| MANUFACTURERS CODE | 22787 |
| MFR SOURCE CONTROLLING REFERENCE | 65600179-14 |
Restrictions/Controls & Freight Information | NSN 5325-00-719-7057
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5325-00-719-7057
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
