NSN 5325-00-725-0969 MS166334018, MS16633-4018, N8211G6Y/MM-1 ITEM 17

Product Details | RETAINING RING

5325-00-725-0969 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.

Part Alternates: MS166334018, MS16633-4018, N8211G6Y/MM-1 ITEM 17, N8211G6YMM1ITEM17, A05758, A56219, BA221H, E18SS2, E-18SS2, Q1-18, Z32, Z3-2, Q118, 5633232, 563323-2, 6716136, 75E103 ITEM 28, 75E103ITEM28, 93010D0013, 076006545008, 076-006545-008, 100018SS2, 1000-18-SS-2, 10119157 , 12Z5035133, 12Z5035-133, 13048130, 255674, 2800046008, 28-00046-008, 4164024018, 416402-4018, 513318H, 5133-18H, 513318W, 5133-18W, 513318WPP, 5133-18WPP, 5325-00-725-0969, 00-725-0969, 5325007250969, 007250969

Hardware and Abrasives | Fastening Devices

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-725-0969	07623 ( RING, RETAINING )

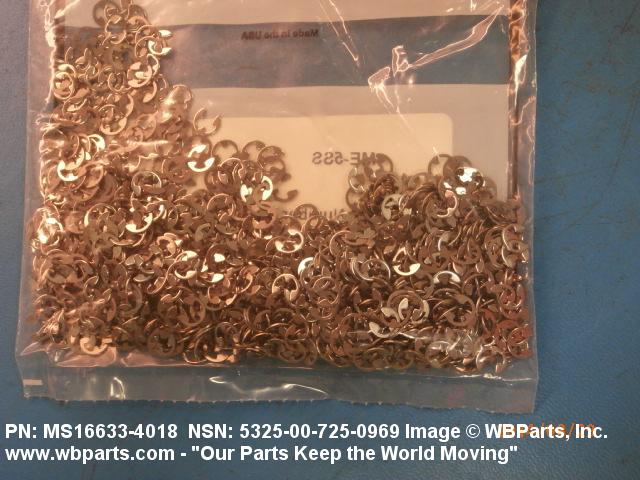

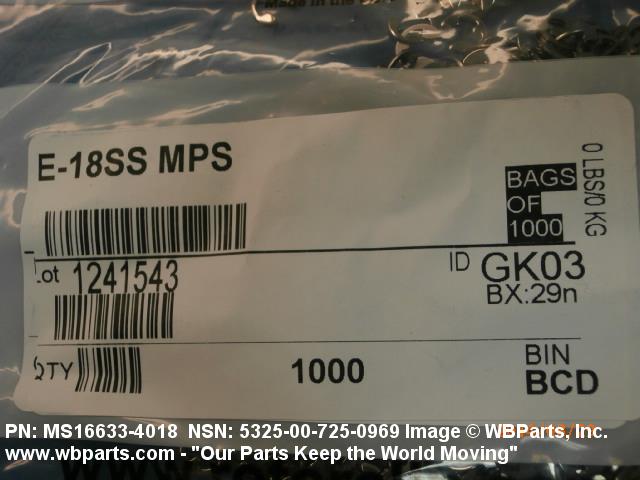

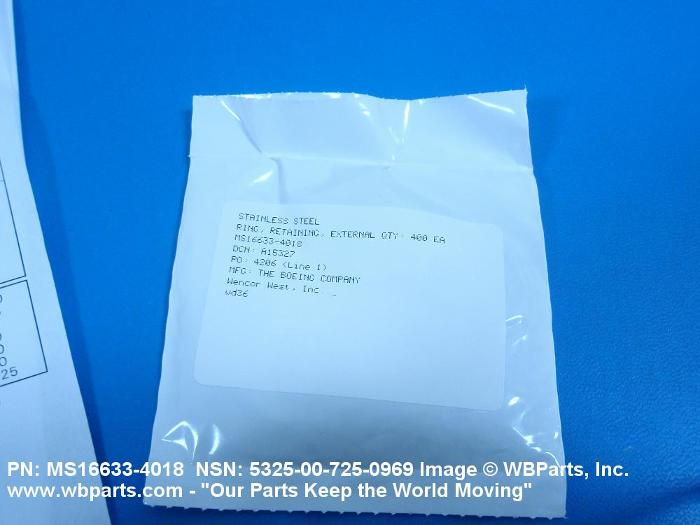

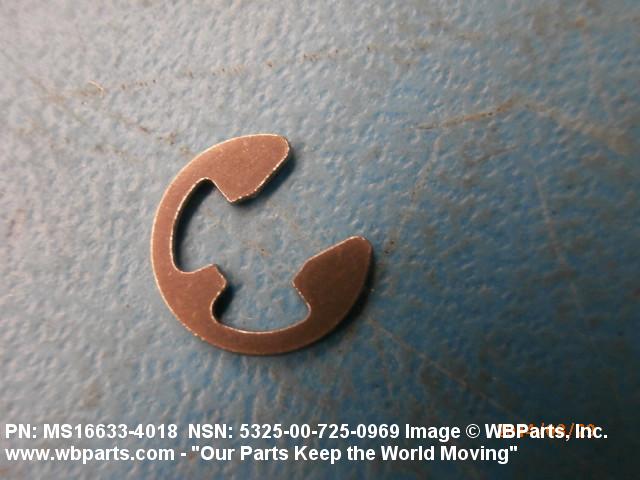

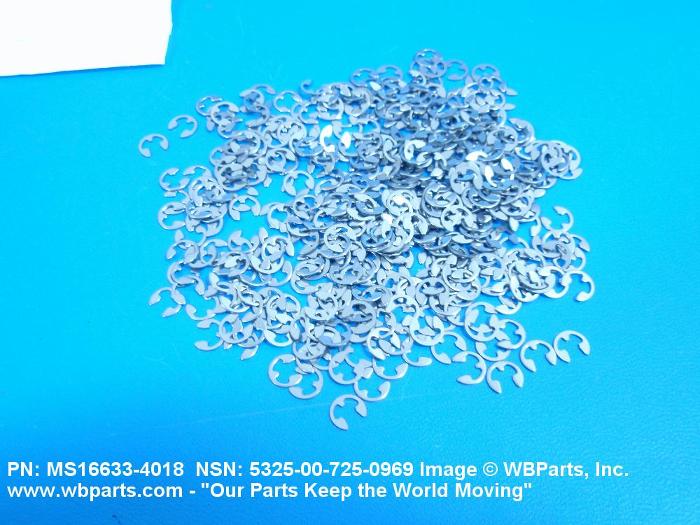

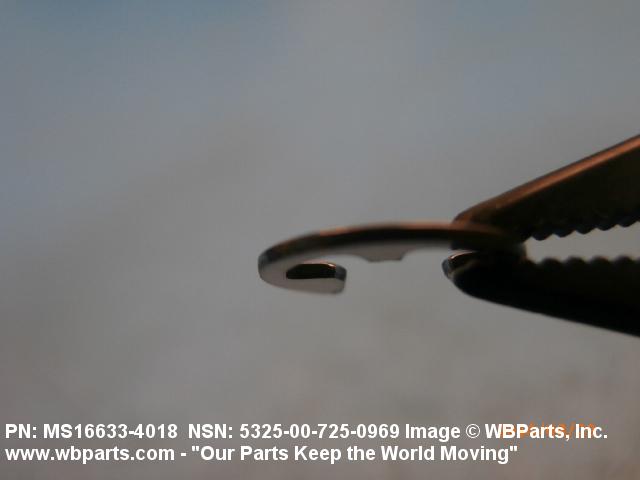

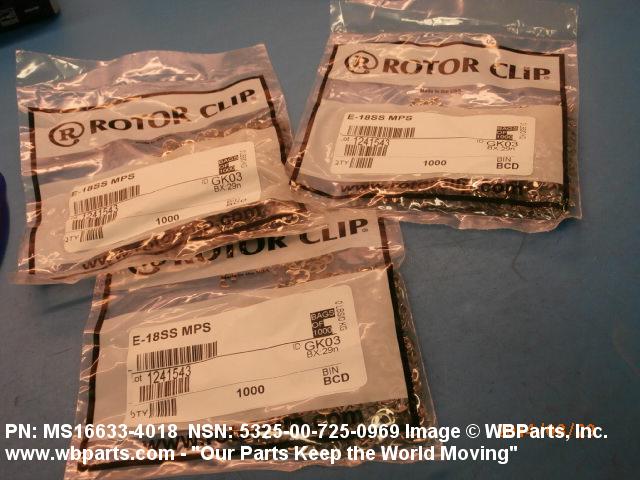

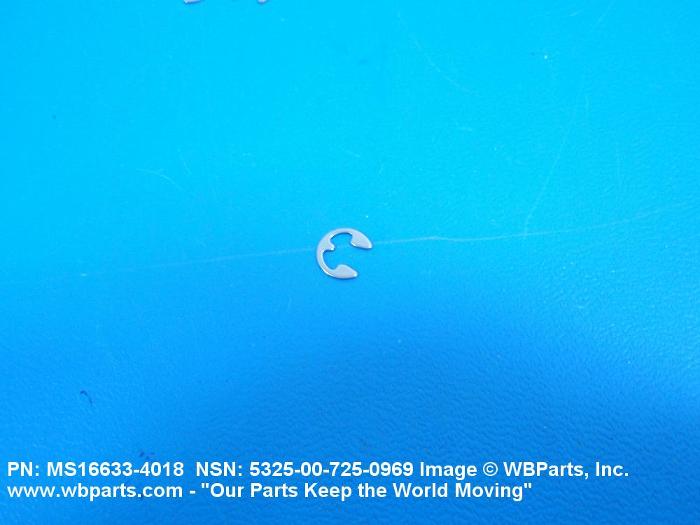

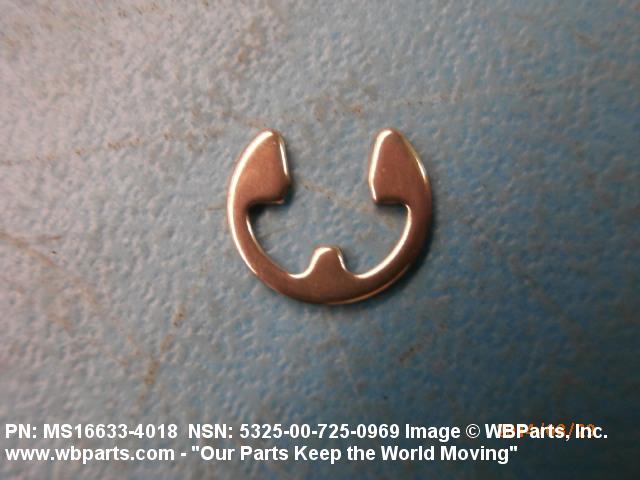

Drawings & Photos | NSN 5325-00-725-0969

Part Number	Request Date	QTY	Origin
MS166334018	2025-03-62	22	Japan
MS166334018	2024-01-29	4	us
MS166334018	2023-05-146	7	Croatia
MS166334018	2022-01-25	2500	India
MS166334018	2021-10-302	12000	IN
MS166334018	2021-08-239	616	IN
Q118	2021-01-25	8	us
MS166334018	2020-10-293	20	United States
MS166334018	2020-04-113	1300	India
MS166334018	2019-05-133	7000	PK
5325-00-725-0969	2019-05-121	7000	US
5325-00-725-0969	2018-11-332	8161	DIBBS
5325-00-725-0969	2018-11-305	16905	DIBBS
5325-00-725-0969	2018-10-277	12395	DIBBS
5325-00-725-0969	2018-09-266	10089	DIBBS
5325-00-725-0969	2018-07-196	10755	DIBBS
MS166334018	2018-03-75	1600	PK
5325-00-725-0969	2017-05-143	100	MANUAL
MS16633-4018	2017-05-143	100	TW
5325-00-725-0969	2016-06-154	5054	DIBBS
5325-00-725-0969	2016-03-87	5996	DIBBS
MS16633-4018	2015-05-141	1	United States
MS16633-4018	2015-05-141	1	United States
5325-00-725-0969	2014-12-352	12649	DIBBS
MS166334018	2014-03-80	3000	United States
MS166334018	2013-02-57	500	PK
5325-00-725-0969	2011-06-171	50	PK
MS166334018	2011-03-74	6	US
5325-00-725-0969	2008-11-323	21123	DIBBS
5325-00-725-0969	2008-10-298	400	United States
513318H	2008-08-218	100	us
MS166334018	2008-06-154	25	United States
MS166334018	2008-01-21	20	UM

Cross Reference | NSN 5325-00-725-0969

Part Number	Cage Code	Manufacturer
076-006545-008	26916	NORTHROP GRUMMAN SYSTEMS CORPORATION DIV MULTIPLE
1000-18-SS-2	07382	ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
1000-18-SS-2	97464	TRUARC CO LLC
12Z5035-133	94135	NAVAL ORDNANCE STANDARDS
13048130	18876	U S ARMY AVIATION AND MISSILE COMMAND
13048130	74067	KEUFFEL AND ESSER CO
255674	77445	UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS
28-00046-008	K0268	RAYTHEON SYSTEMS LTD
416402-4018	96214	RAYTHEON COMPANY DBA RAYTHEON
5133-18H	07382	ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
5133-18H	79136	TRUARC COMPANY LLC DBA WALDES TRUARC
5133-18W	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
5133-18WPP	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
563323-2	77068	ALLIED-SIGNAL INC DBA ALLIED-SIGNAL AEROSPACE CO
6716136	24617	GENERAL MOTORS CORP
6716136	73342	ALLISON TRANSMISSION, INC.
75E103 ITEM 28	38056	ASHCROFT INC.
93010D0013	01365	MARINE CORPS LOGISTICS COMMAND TECHNICAL DATA REPOSITORY
A05758	K0967	MBDA UK LTD
A56219	18876	U S ARMY AVIATION AND MISSILE COMMAND
BA221H	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
E-18SS2	07382	ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP
MS16633-4018	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
N8211G6Y/MM-1 ITEM 17	28968	CIRCOR INSTRUMENTATION TECHNOLOGIES, INC.
Q1-18	29440	W. M. BERG INC
Z3-2	00141	ROLLER BEARING COMPANY OF AMERICA, INC.

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5325-00-725-0969

Compare

Related Products | NSN 5325-00-725-0969

5325-00-725-1077, 5325-00-725-1656, 5325-00-725-1678, 5325-00-725-1987, 5325-00-725-2390

Technical Data | NSN 5325-00-725-0969

Characteristic	Specifications
MATERIAL	STEEL, AMS 5520 OR STEEL,AISI 632
SURFACE TREATMENT	PASSIVATED, QQ-P-35
STRENGTH RATING	NOT RATED
MATERIAL HARDNESS RATING	69.5 ROCKWELL SUPERFICIAL 30-N MINIMUM
CASEHARDENING INDICATOR	NOT CASEHARDENED
RING STYLE	A47 E

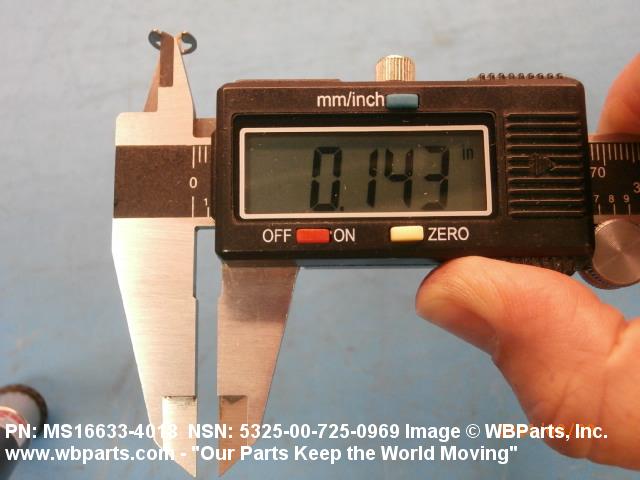

INSIDE DIAMETER	0.142 INCHES MINIMUM AND 0.146 INCHES MAXIMUM
CROSS-SECTIONAL SHAPE STYLE	D4 RECTANGULAR

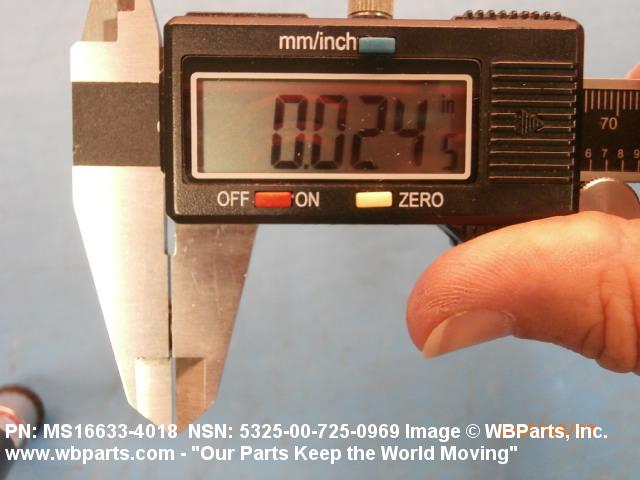

MAJOR THICKNESS	0.023 INCHES MINIMUM AND 0.027 INCHES MAXIMUM
USAGE DESIGN	EXTERNAL
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS16633-4018

Restrictions/Controls & Freight Information | NSN 5325-00-725-0969

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	095190	HARDWARE, NOI SUB 9
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5325-00-725-0969

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	B	Rotary Wing Aircraft
Weapons Systems/End Item or Homogeneous Group	BK	CH-47
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Issue Repair, or Requisition	BV	Controlled ammunition item. Submit/refer requisitions to NOC IMSD. Centralized control for issue of controlled ammunition items.
Special Material Content	9	Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	C	SERVICE/AGENCY-MANAGED (Service/Agency use only.) # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by individual Services supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	M EA : Each
