NSN 5325-00-754-1083 MS166251137, MS16625-1137, M41029
Product Details | RETAINING RING
5325-00-754-1083 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166251137, MS16625-1137, M41029, N1300137CD, N1300-137CD, N5000137, N5000-137, N5000137MD, N5000-137MD, N5000137SMD, N5000-137-S-MD, N5000X137SMD, N5000-X137-S-MD, A515X22, Z20035D064, MILR21248, 58878, 643A411 PIECE 16, 643A411PIECE16, 71101137, 71101-137, 99578, 137, 3000137, 3000-137, 3000X137, 3000X137STCD, 3000-X137-ST-CD, 5000137, 5325-00-754-1083, 00-754-1083, 5325007541083, 007541083
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-754-1083 | 07623 ( RING, RETAINING ) |

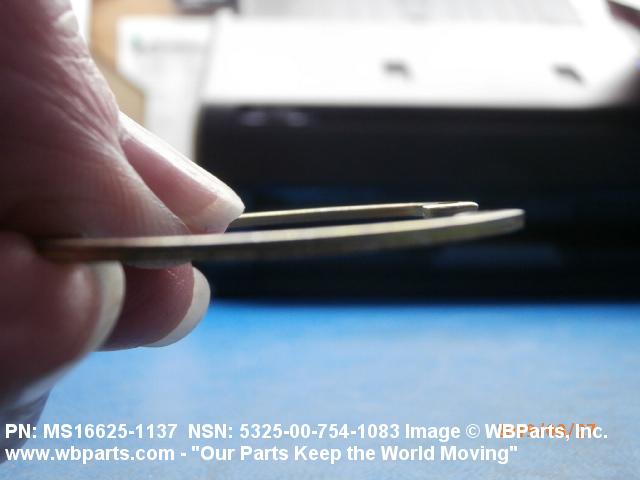

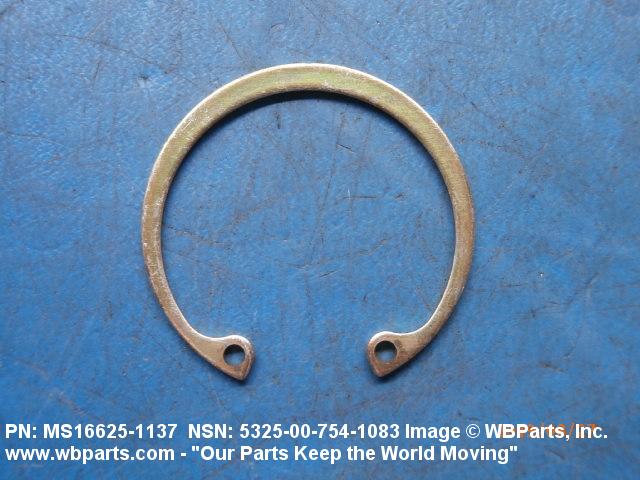

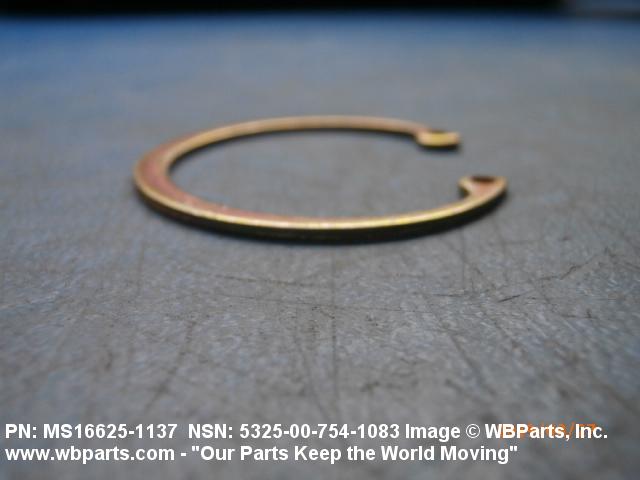

Drawings & Photos | NSN 5325-00-754-1083
Demand History | NSN 5325-00-754-1083
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 58878 | 2024-10-296 | 2 | Germany |
| N5000137 | 2024-09-257 | 24 | Japan |
| 5325-00-754-1083 | 2020-08-227 | 150 | Singapore |
| 5325-00-754-1083 | 2020-06-169 | 1 | DIBBS-RFPs |
| MS166251137 | 2020-01-14 | 48 | Malaysia |
| MS166251137 | 2019-08-231 | 15 | Canada |
| MS166251137 | 2019-06-157 | 15 | Canada |
| 5325-00-754-1083 | 2019-05-134 | 2372 | DIBBS |
| 5325-00-754-1083 | 2016-07-192 | 3692 | DIBBS |
| 5325-00-754-1083 | 2016-04-101 | 1381 | DIBBS |
| 5325-00-754-1083 | 2015-11-331 | 1786 | DIBBS |
| 5325-00-754-1083 | 2015-11-319 | 1786 | DIBBS |
| 5325-00-754-1083 | 2013-11-332 | 4091 | DIBBS |
| 5325-00-754-1083 | 2013-11-307 | 2147 | DIBBS |
| MILR21248 | 2013-04-112 | 5 | MX |
| 5325-00-754-1083 | 2012-01-26 | 2296 | DIBBS |
| MS166251137 | 2011-02-56 | 5 | Canada |
| MILR21248 | 2011-02-47 | 24 | us |
| MS166251137 | 2010-12-335 | 200 | US |
| N5000137 | 2010-12-335 | 4 | US |
| MS166251137 | 2009-12-341 | 2 | France |
| MS166251137 | 2009-05-146 | 104 | US |
| MS166251137 | 2009-01-29 | 800 | US |
| MS166251137 | 2008-10-305 | 1 | PK |
| 3000X137 | 2008-10-295 | 10 | US |
| 5325-00-754-1083 | 2008-05-143 | 10 | US |
| 3000X137 | 2008-04-108 | 40 | US |
| 3000137 | 2007-11-309 | 10 | US |
Cross Reference | NSN 5325-00-754-1083
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 137 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 3000-137 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 3000-X137-ST-CD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3000-X137-ST-CD | 97464 | TRUARC CO LLC |
| 3000X137 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5000137 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 5365007541083 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| 58878 | 05228 | PTI TECHNOLOGIES INC. |
| 58878 | 64829 | ARVINMERITOR INC |
| 643A411 PIECE 16 | 01289 | GENERAL ELECTRIC COMPANY DBA GE DIV GE-AVIATION GEAR PLANT |
| 71101-137 | 58114 | REXROTH CORP THE MOBILE HYDRAULICS DIV |
| 99578 | 62983 | EATON AEROSPACE LLC |
| A515X22 | 0E9N0 | DAVID BROWN HYDRAULICS INC DBA HYDRECO |
| M41029 | 75160 | DEERE & CO |
| M41029 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| MILR21248 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MS16625-1137 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N1300-137CD | 54963 | SEEGER INC ANDERTON-UNITED PRODUCTS DIV |
| N5000-137 | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-137 | 71041 | ALTRA HOLDINGS, INC. DIV BOSTON GEAR |
| N5000-137 | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-137 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| N5000-137-S-MD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-137-S-MD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-137MD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-137MD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-X137-S-MD | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-X137-S-MD | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| Z20035D064 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5325-00-754-1083
Related Products | NSN 5325-00-754-1083
Technical Data | NSN 5325-00-754-1083
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL,FED STD 66 AISI 1066 OR 1069 OR 1070 OR 1072 OR 1074 OR 1075 OR 1078 OR 1080 OR 1084 OR 1086 OR 1090 |
| SURFACE TREATMENT | CADMIUM, QQ-P-416, TYPE 2, CLASS 3 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 47.0 ROCKWELL C MINIMUM AND 52.0 ROCKWELL C MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A37 INTERNAL |

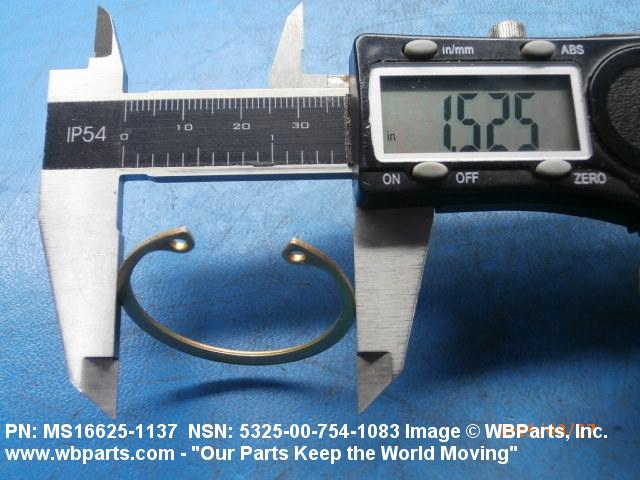

| OUTSIDE DIAMETER | 1.506 INCHES MINIMUM AND 1.551 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |

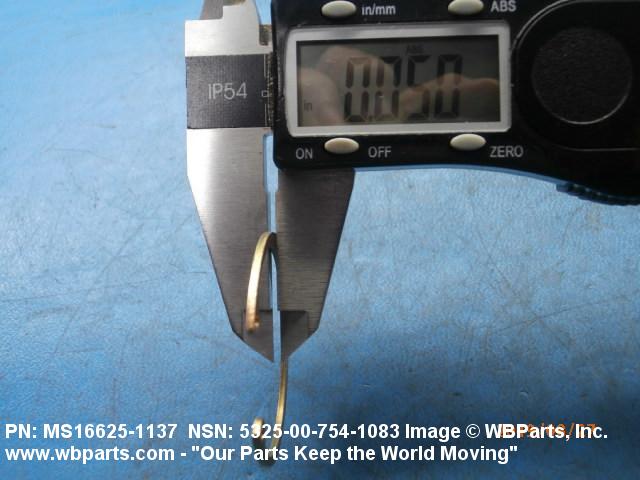

| MAJOR THICKNESS | 0.048 INCHES MINIMUM AND 0.052 INCHES MAXIMUM |
| USAGE DESIGN | INTERNAL |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MILR21248 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16625-1137 |
Restrictions/Controls & Freight Information | NSN 5325-00-754-1083
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 088160 | GLASSWARE,NOI W/WO COMPONENTS |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 704 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5325-00-754-1083
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | E | General Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | GSA | General Services Administration Washington, D.C. 20406 |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
L EA : Each |
