NSN 5325-00-771-7358 MS166254093, MS16625-4093, N130093AS
Product Details | RETAINING RING
5325-00-771-7358 A resilient metal item, circular or nearly circular, which is designed to be inserted into an internal or external groove and retained by its own spring action, or it may have external prongs or projections designed to be inserted into a hole and retained by spring action of the prongs which grip by imbedding into the material. For items having internal prongs which perform the same function, see PUSH ON NUT. It is used to keep and/or lock a part(s) in position, as a ball bearing on a shaft or in a housing. See also CLIP, RETAINING and PIN, LOCK. Excludes RING, CONNECTING, ROUND.
Part Alternates: MS166254093, MS16625-4093, N130093AS, N1300-93AS, N500093H, N5000-93H, N500093W, N5000-93W, N5000X93H, N5000-X93-H, 218276, 3000X08SS2, 3000-X08-SS2, 43843, 5325-00-771-7358, 00-771-7358, 5325007717358, 007717358
Hardware and Abrasives | Fastening Devices
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-771-7358 | 07623 ( RING, RETAINING ) |

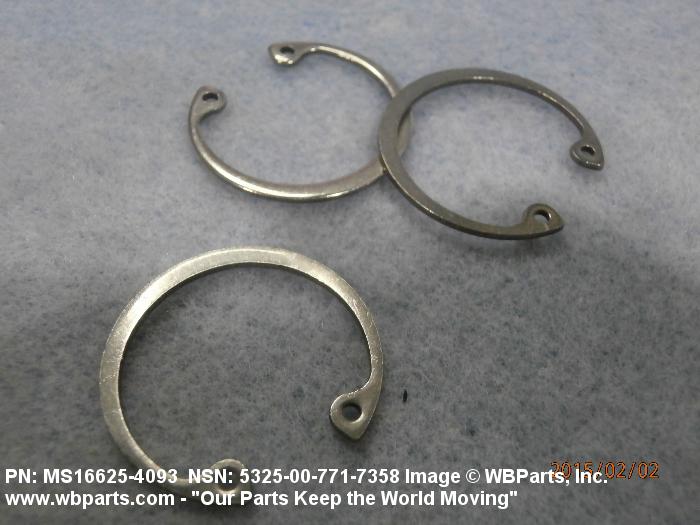

Drawings & Photos | NSN 5325-00-771-7358
Demand History | NSN 5325-00-771-7358
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS166254093 | 2021-08-239 | 100 | MY |
| 5325-00-771-7358 | 2020-11-313 | 532 | DIBBS |
| MS166254093 | 2015-11-328 | 4 | United States |
| MS166254093 | 2014-06-170 | 360 | US |
| MS166254093 | 2006-12-349 | 1 | US |
| MS166254093 | 2006-12-349 | 1 | US |
| 5325-00-771-7358 | 2006-08-235 | 1000 | United States |
Cross Reference | NSN 5325-00-771-7358
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 218276 | 66503 | WOODWARD, INC. DBA WOODWARD |
| 3000-X08-SS2 | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| 3000-X08-SS2 | 97464 | TRUARC CO LLC |
| 43843 | 99193 | HONEYWELL INTERNATIONAL INC. DBA HONEYWELL |
| MS16625-4093 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| N1300-93AS | 54963 | SEEGER INC ANDERTON-UNITED PRODUCTS DIV |
| N5000-93H | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-93H | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-93W | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
| N5000-X93-H | 07382 | ROTOR CLIP COMPANY INC. DBA ROTOR CLAMP |
| N5000-X93-H | 79136 | TRUARC COMPANY LLC DBA WALDES TRUARC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5325-00-771-7358
Technical Data | NSN 5325-00-771-7358
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL, AMS 5520 |
| SURFACE TREATMENT | PASSIVATED, QQ-P-35 |
| STRENGTH RATING | NOT RATED |
| MATERIAL HARDNESS RATING | 63.0 ROCKWELL SUPERFICIAL 30-N MINIMUM AND 69.5 ROCKWELL SUPERFICIAL 30-N MAXIMUM |
| CASEHARDENING INDICATOR | NOT CASEHARDENED |
| RING STYLE | A37 INTERNAL |

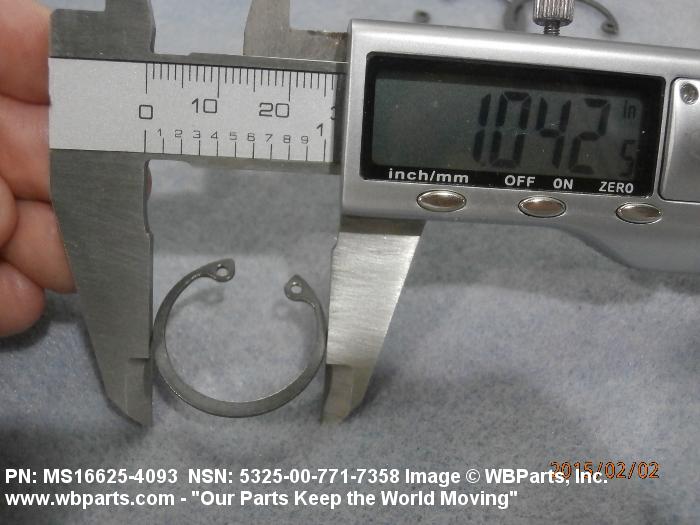

| OUTSIDE DIAMETER | 1.031 INCHES MINIMUM AND 1.056 INCHES MAXIMUM |
| CROSS-SECTIONAL SHAPE STYLE | D4 RECTANGULAR |

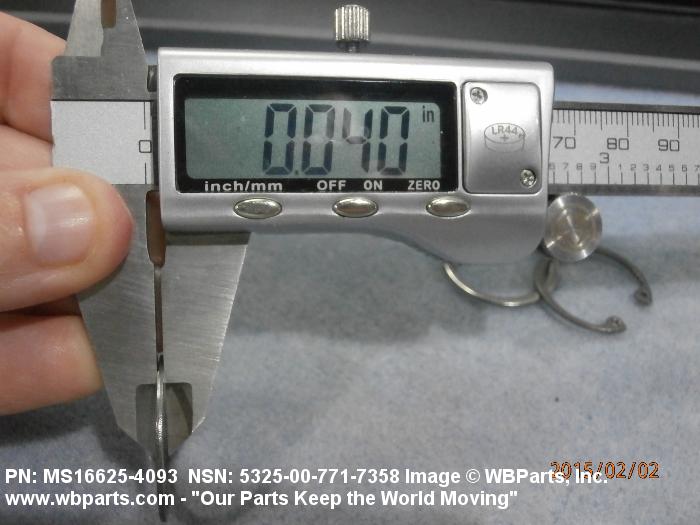

| MAJOR THICKNESS | 0.040 INCHES MINIMUM AND 0.044 INCHES MAXIMUM |
| USAGE DESIGN | INTERNAL |
| III END ITEM IDENTIFICATION | W/S:ENGINE, AIRCRAFT, J85-GE-21 (F-5E/F); OSPREY CLASS MHC; HELICOPTER OBSERVATION (AHIP), OH-58D; FMS-KNOX CLASS FF; AVENGER CLASS MCM; FMS-A7 AIRCRAFT; FMS-ASROC LAUNCHER; AN/SLQ-48 MINE NEUTRALIZATION SYSTEM; HELICOPTER, ADVANCE ATTACK, AH-1W; STRATEGIC WEAPONS SYSTEMS (POSEIDON AND TRIDENT) |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS16625-4093 |
Restrictions/Controls & Freight Information | NSN 5325-00-771-7358
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
